Ultimate vSphere Certificate Renewal Guide

#!/opt/vmware/bin/python


"""
Copyright 2020-2022 VMware, Inc.  All rights reserved. -- VMware Confidential
Author:  Keenan Matheny ([email protected])

"""
##### BEGIN IMPORTS #####

import os
import sys
import json
import subprocess
import re
import pprint
import ssl
from datetime import datetime, timedelta
import textwrap
from codecs import encode, decode
import subprocess
from time import sleep
try:
    # Python 3 hack.
    import urllib.request as urllib2
    import urllib.parse as urlparse
except ImportError:
    import urllib2
    import urlparse

sys.path.append(os.environ['VMWARE_PYTHON_PATH'])
from cis.defaults import def_by_os
sys.path.append(os.path.join(os.environ['VMWARE_CIS_HOME'],
                def_by_os('vmware-vmafd/lib64', 'vmafdd')))
import vmafd
from OpenSSL.crypto import (load_certificate, dump_privatekey, dump_certificate, X509, X509Name, PKey)
from OpenSSL.crypto import (TYPE_DSA, TYPE_RSA, FILETYPE_PEM, FILETYPE_ASN1 )

today = datetime.now()
today = today.strftime("%d-%m-%Y")

vcsa_kblink = "https://kb.vmware.com/s/article/76719"
win_kblink = "https://kb.vmware.com/s/article/79263"

##### END IMPORTS #####

class parseCert( object ):
    # Certificate parsing

    def format_subject_issuer(self, x509name):
        items = []
        for item in x509name.get_components():
            items.append('%s=%s' %  (decode(item[0],'utf-8'), decode(item[1],'utf-8')))
        return ", ".join(items)

    def format_asn1_date(self, d):
        return datetime.strptime(decode(d,'utf-8'), '%Y%m%d%H%M%SZ').strftime("%Y-%m-%d %H:%M:%S GMT")

    def merge_cert(self, extensions, certificate):
        z = certificate.copy()
        z.update(extensions)
        return z

    def __init__(self, certdata):

        built_cert = certdata
        self.x509 = load_certificate(FILETYPE_PEM, built_cert)
        keytype = self.x509.get_pubkey().type()
        keytype_list = {TYPE_RSA:'rsaEncryption', TYPE_DSA:'dsaEncryption', 408:'id-ecPublicKey'}
        extension_list = ["extendedKeyUsage",
                        "keyUsage",
                        "subjectAltName",
                        "subjectKeyIdentifier",
                        "authorityKeyIdentifier"]
        key_type_str = keytype_list[keytype] if keytype in keytype_list else 'other'

        certificate = {}
        extension = {}
        for i in range(self.x509.get_extension_count()):
            critical = 'critical' if self.x509.get_extension(i).get_critical() else ''

            if decode(self.x509.get_extension(i).get_short_name(),'utf-8') in extension_list:
                extension[decode(self.x509.get_extension(i).get_short_name(),'utf-8')] = self.x509.get_extension(i).__str__()

        certificate = {'Thumbprint': decode(self.x509.digest('sha1'),'utf-8'), 'Version': self.x509.get_version(),
         'SignatureAlg' : decode(self.x509.get_signature_algorithm(),'utf-8'), 'Issuer' :self.format_subject_issuer(self.x509.get_issuer()),
         'Valid From' : self.format_asn1_date(self.x509.get_notBefore()), 'Valid Until' : self.format_asn1_date(self.x509.get_notAfter()),
         'Subject' : self.format_subject_issuer(self.x509.get_subject())}

        combined = self.merge_cert(extension,certificate)
        cert_output = json.dumps(combined)

        self.subjectAltName = combined.get('subjectAltName')
        self.subject = combined.get('Subject')
        self.validfrom = combined.get('Valid From')
        self.validuntil = combined.get('Valid Until')
        self.thumbprint = combined.get('Thumbprint')
        self.subjectkey = combined.get('subjectKeyIdentifier')
        self.authkey = combined.get('authorityKeyIdentifier')
        self.combined = combined

class parseSts( object ):

    def __init__(self):
        self.processed = []
        self.results = {}
        self.results['expired'] = {}
        self.results['expired']['root'] = []
        self.results['expired']['leaf'] = []
        self.results['valid'] = {}
        self.results['valid']['root'] = []
        self.results['valid']['leaf'] = []

    def get_certs(self,force_refresh):
        urllib2.getproxies = lambda: {}
        vmafd_client = vmafd.client('localhost')
        domain_name = vmafd_client.GetDomainName()

        dc_name = vmafd_client.GetAffinitizedDC(domain_name, force_refresh)
        if vmafd_client.GetPNID() == dc_name:
            url = (
                'http://localhost:7080/idm/tenant/%s/certificates?scope=TENANT'
                % domain_name)
        else:
            url = (
                'https://%s/idm/tenant/%s/certificates?scope=TENANT'
                % (dc_name,domain_name))
        return json.loads(urllib2.urlopen(url).read().decode('utf-8'))

    def check_cert(self,certificate):
        cert = parseCert(certificate)
        certdetail = cert.combined

            #  Attempt to identify what type of certificate it is
        if cert.authkey:
            cert_type = "leaf"
        else:
            cert_type = "root"

        #  Try to only process a cert once
        if cert.thumbprint not in self.processed:
            # Date conversion
            self.processed.append(cert.thumbprint)
            exp = cert.validuntil.split()[0]
            conv_exp = datetime.strptime(exp, '%Y-%m-%d')
            exp = datetime.strftime(conv_exp, '%d-%m-%Y')
            now = datetime.strptime(today, '%d-%m-%Y')
            exp_date = datetime.strptime(exp, '%d-%m-%Y')

            # Get number of days until it expires
            diff = exp_date - now
            certdetail['daysUntil'] = diff.days

            # Sort expired certs into leafs and roots, put the rest in goodcerts.
            if exp_date <= now:
                self.results['expired'][cert_type].append(certdetail)
            else:
                self.results['valid'][cert_type].append(certdetail)

    def execute(self):

        json = self.get_certs(force_refresh=False)
        for item in json:
            for certificate in item['certificates']:
                self.check_cert(certificate['encoded'])
        return self.results

def main():

    warning = False
    warningmsg = '''
    WARNING!
    You have expired STS certificates.  Please follow the KB corresponding to your OS:
    VCSA:  %s
    Windows:  %s
    ''' % (vcsa_kblink, win_kblink)
    parse_sts = parseSts()
    results = parse_sts.execute()
    valid_count = len(results['valid']['leaf']) + len(results['valid']['root'])
    expired_count = len(results['expired']['leaf']) + len(results['expired']['root'])


    #### Display Valid ####
    print("\n%s VALID CERTS\n================" % valid_count)
    print("\n\tLEAF CERTS:\n")
    if len(results['valid']['leaf']) > 0:
        for cert in results['valid']['leaf']:
            print("\t[] Certificate %s will expire in %s days (%s years)." % (cert['Thumbprint'], cert['daysUntil'], round(cert['daysUntil']/365)))
    else:
        print("\tNone")
    print("\n\tROOT CERTS:\n")
    if len(results['valid']['root']) > 0:
        for cert in results['valid']['root']:
            print("\t[] Certificate %s will expire in %s days (%s years)." % (cert['Thumbprint'], cert['daysUntil'], round(cert['daysUntil']/365)))
    else:
        print("\tNone")


    #### Display expired ####
    print("\n%s EXPIRED CERTS\n================" % expired_count)
    print("\n\tLEAF CERTS:\n")
    if len(results['expired']['leaf']) > 0:
        for cert in results['expired']['leaf']:
            print("\t[] Certificate: %s expired on %s!" % (cert.get('Thumbprint'),cert.get('Valid Until')))
            continue
    else:
        print("\tNone")

    print("\n\tROOT CERTS:\n")
    if len(results['expired']['root']) > 0:
        for cert in results['expired']['root']:
            print("\t[] Certificate: %s expired on %s!" % (cert.get('Thumbprint'),cert.get('Valid Until')))
            continue
    else:
        print("\tNone")

    if expired_count > 0:
        print(warningmsg)


if __name__ == '__main__':
    exit(main())

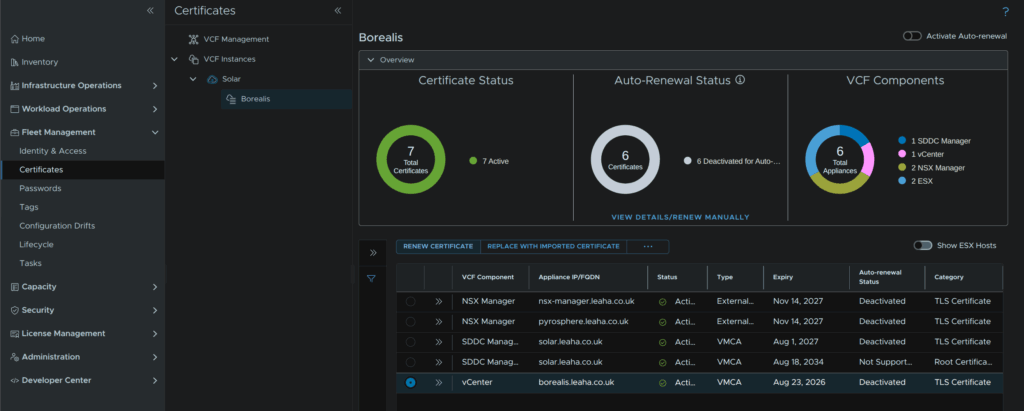

Go into Administration by clicking the three lines

Then certificate management

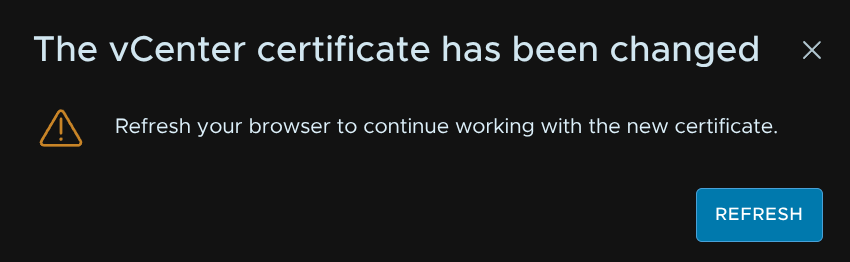

Then click actions under STS Signing Certificate, and click refresh with vCentre certificate

This will require a reboot of the vCentre

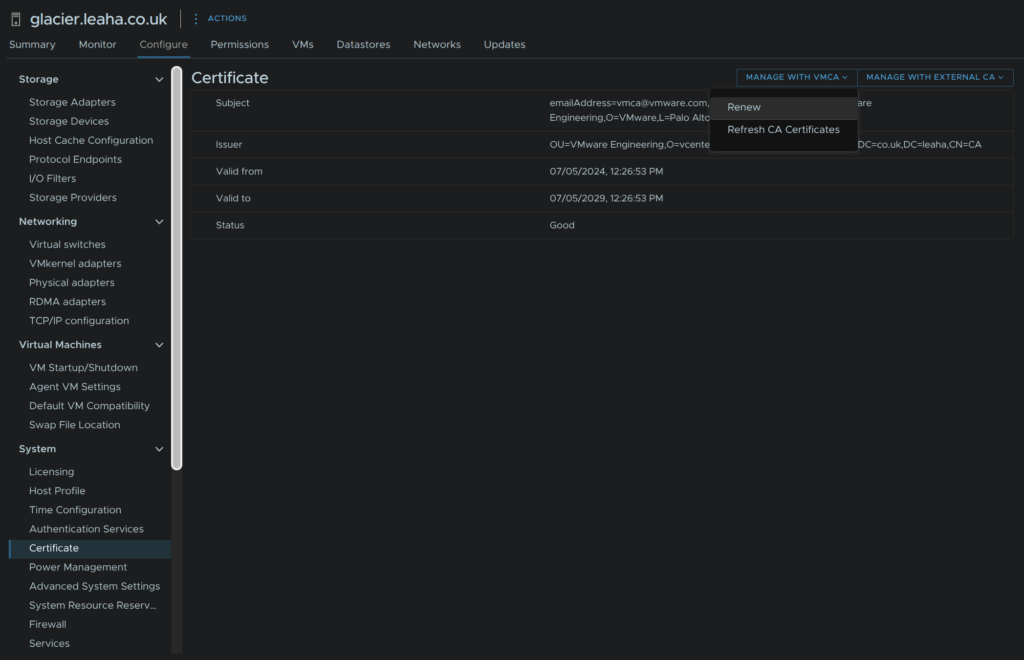

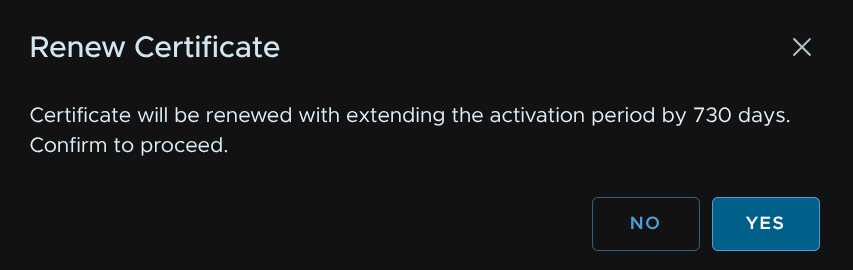

For vSphere 8U3 and newer you can click the certificate here and renew, you’ll want to do both

If the vSphere UI isnt accessible then you’ll need to do this in the CLI

Broadcom’s recommendation here is to do this part on only one node in a system of enhanced linked vCenters, shown here, under STS Certificate, you will also want to grab the fixsts script from that link as we will need it to replace the STS signing certificate

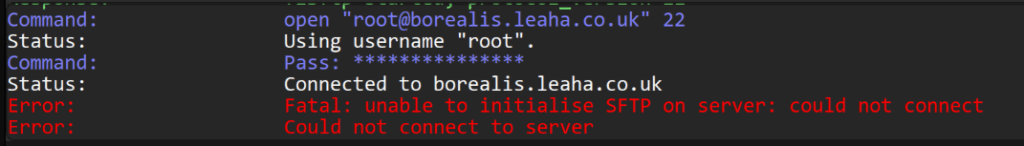

Upload the fixsts script to the vCenter in /tmp, the same way we checked the STS certificate in the first section

From there, lets make it executable
chmod +x /tmp/fixsts.sh

Then run the script
/tmp/fixsts.sh

If you get this error
bash: /tmp/fixsts.sh: /bin/bash^M: bad interpreter: No such file or directory
This is caused by DOS carriage returns caused by the script when copied from a windows based text editor, to resolve this run
sed -i -e ‘s/\r$//’ /tmp/fixsts.sh

Once thats run, you’ll need to restart all the services with
service-control –stop –all && service-control –start –all

This mail fail if there are other certificates that have expired, thats fine, you’ll want to move onto the next section to replace the other expired certificates, which will have you restart the services

I have used this on vCenter 6.7/7, I havent seen it needed on vCenter 8 yet

This part can error out like so

This is due to exception returns is the service registrations

This error can be found in /var/log/vmware/certificate-manager.log
ERROR certificate-manager ‘lstool get’ failed: 1

Fixing this is a little tricky and a bit involved with the certificate manager script

Go to the directory where this is installed with
cd /usr/lib/vmware/site-packages/cis

Create a backup copy of the certificate manager script, incase it goes wrong or you need to refer back to it with
cp certificateManagerHelper.py certificateManagerHelper.py.bak

Now you will need to edit the file with
vi certificateManagerHelper.py

Vi can be a little painful to use if you havent used it before, but you can use the arrow keys to find the lines you want

You are looking for something like this
if(rc != 0):
logging.error(“‘lstool list’ failed: {}”.format(rc))
raise Exception(“‘lstool list’ failed: %d” % rc)

It may look different, but as long as you have the first line, the if statement, and a raise Exception line, thats what you want to edit

Type the letter ‘I’ in Vi to insert, this allows you to type where the curser is, you want to commend out the raise Exception line like so, with a ‘#’
if(rc != 0):
logging.error(“‘lstool list’ failed: {}”.format(rc))
# raise Exception(“‘lstool list’ failed: %d” % rc)

There is about 3 instances of this, it can vary, but check you get them all

Once you have commented them all out, press escape to exit insert mode
Then we need to save and quit, press ‘:’, then wq and hit enter to save and exit
You may need to use wq! over wq if you have isues

This should fix the problem

For more info check out James Mueller’s article around this as it helped me get a few vCenters past this error here
