VKS/Tanzu Configuration Guide

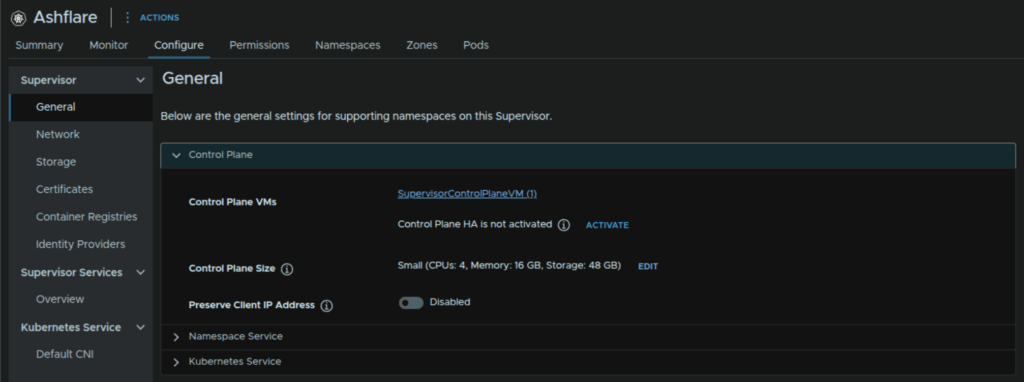

If more Supervisor resources are needed, the cluster can be upscaled, but its worth noting, it can not be scaled back down

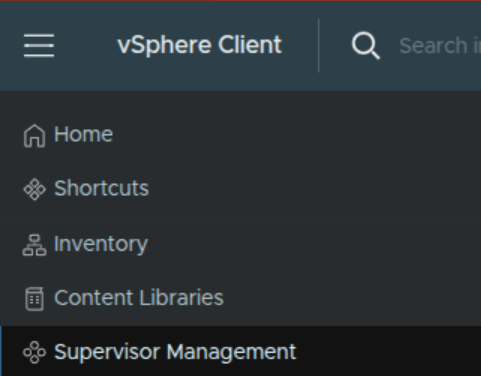

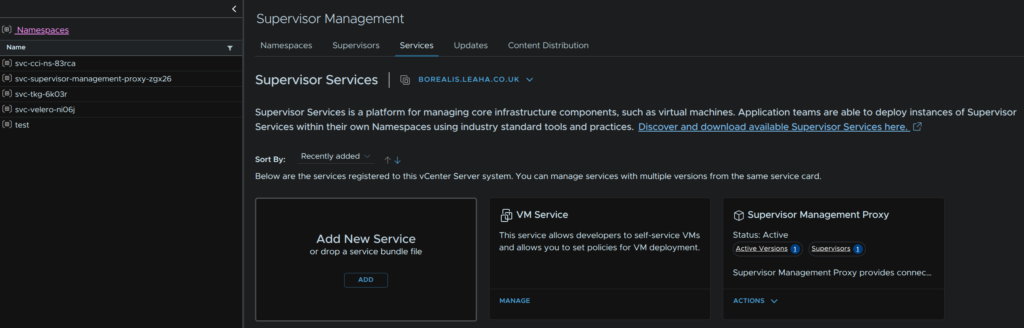

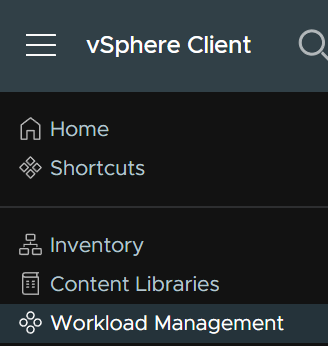

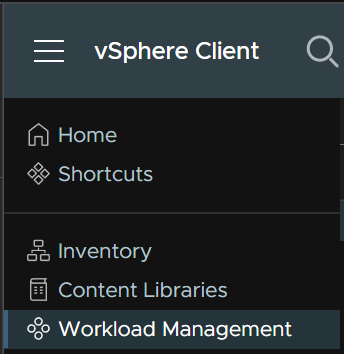

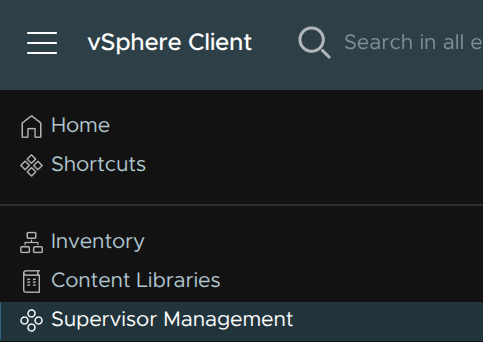

To do this, in vSphere click the three lines and click Supervisor Management

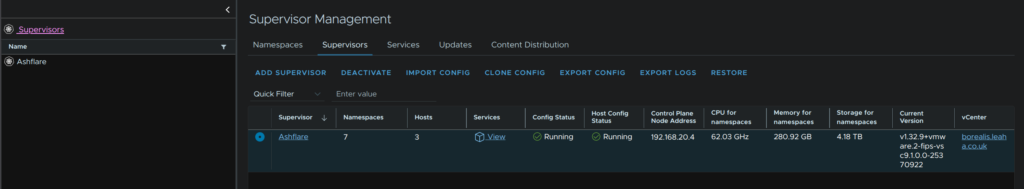

Click Supervisors and select your Supervisor, in my case, Ashflare

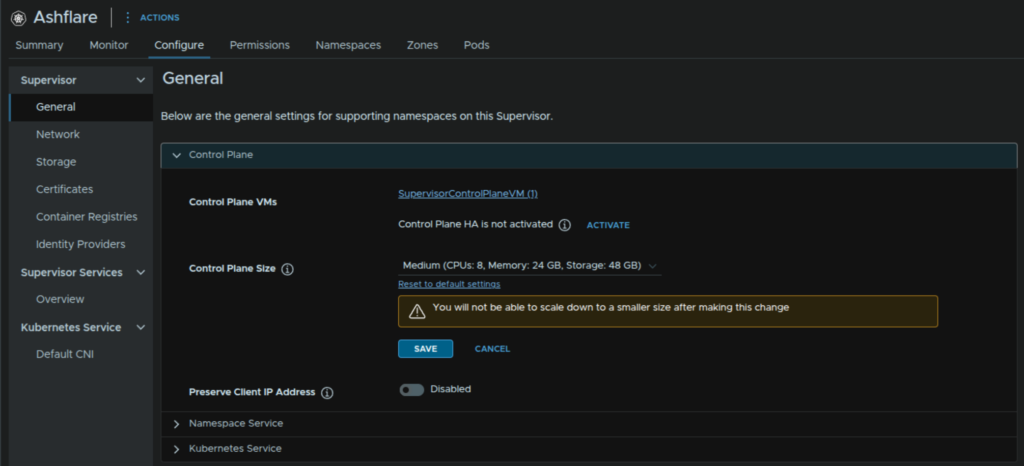

For scaling out to a three node cluster, if you deployed a single node cluster, you can activate HA, or for scaling up click Edit

Select the new size and click Save

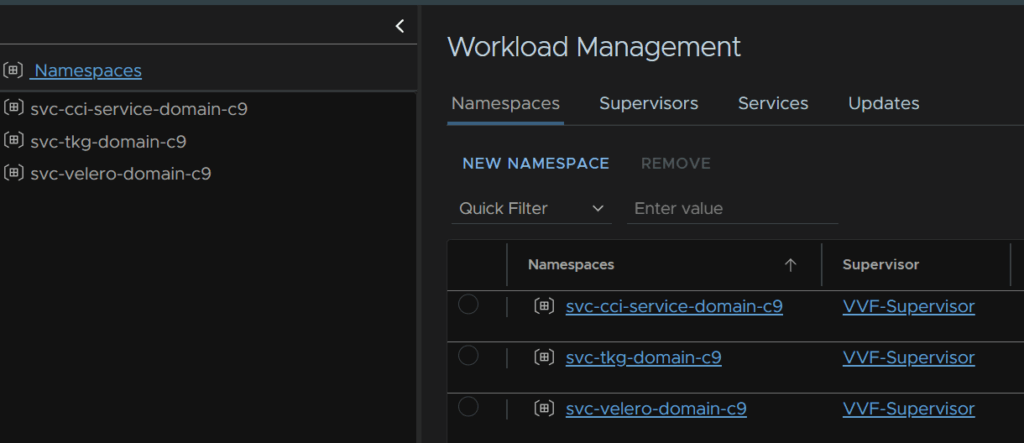

Before we can start deploying VKS clusters we need a namespace to put them in, in vSphere click the three lines in the top left and click Supervisor Management

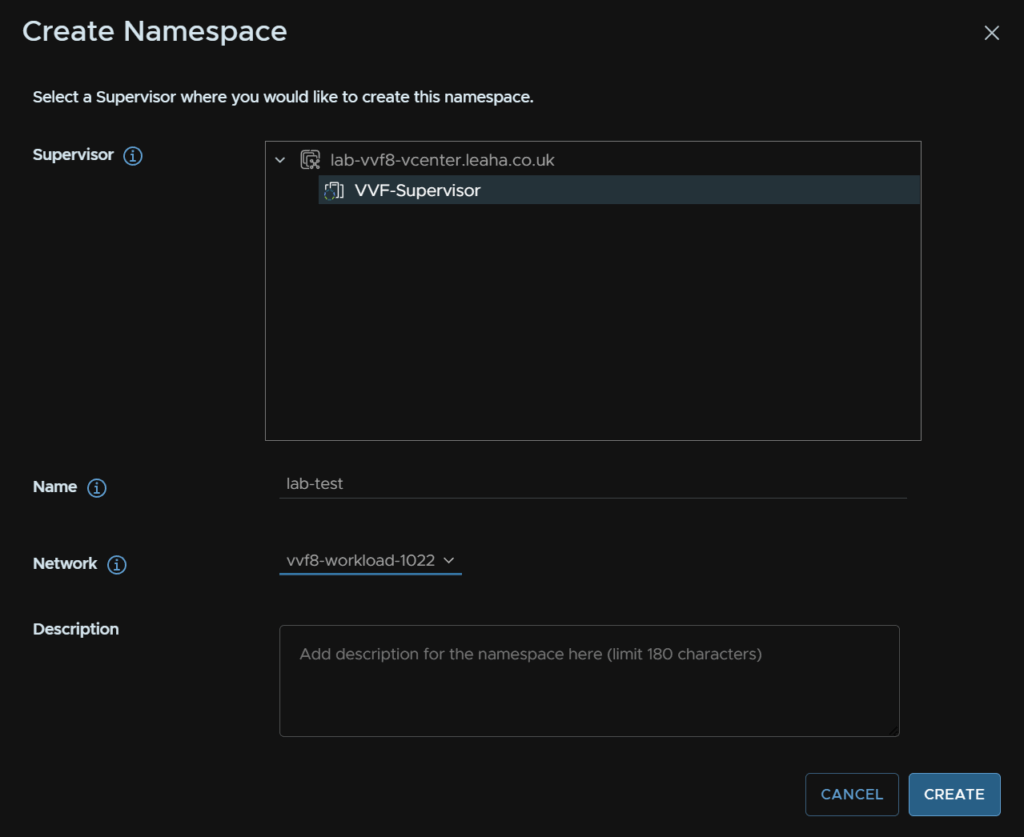

Then click New Namespace

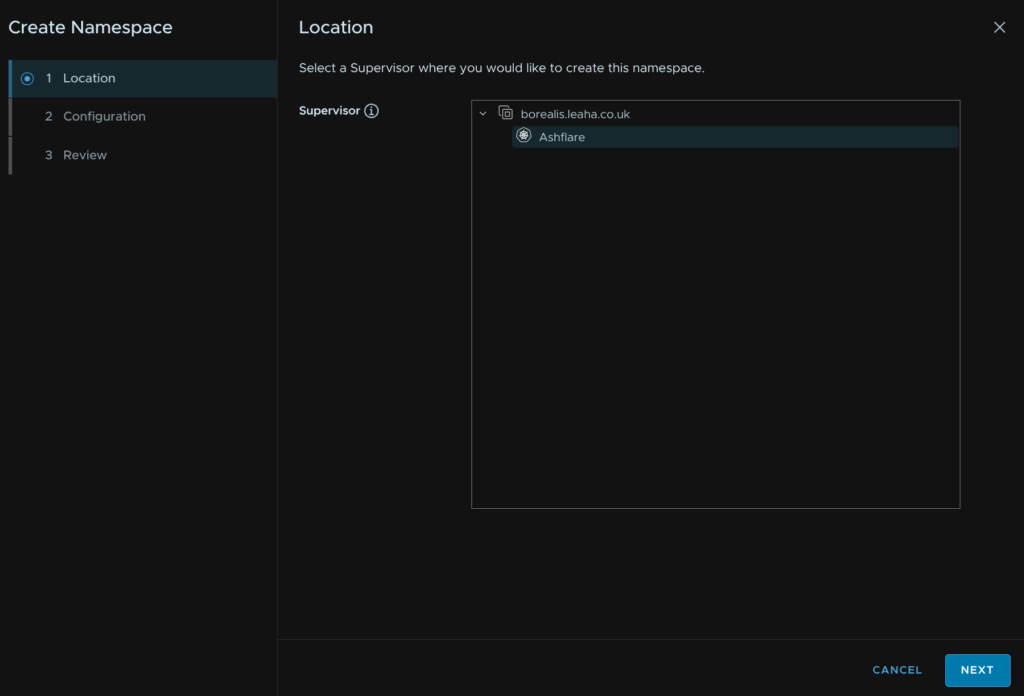

Select the supervisor and click Next

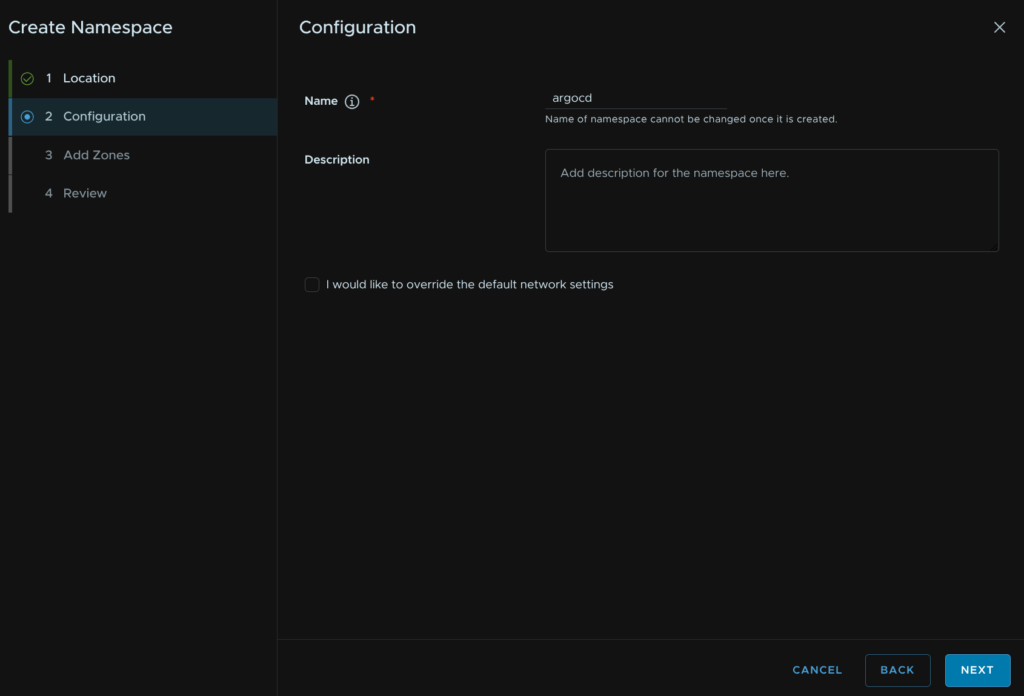

Give it a name, it must be DNS compliant, so no capitals for example

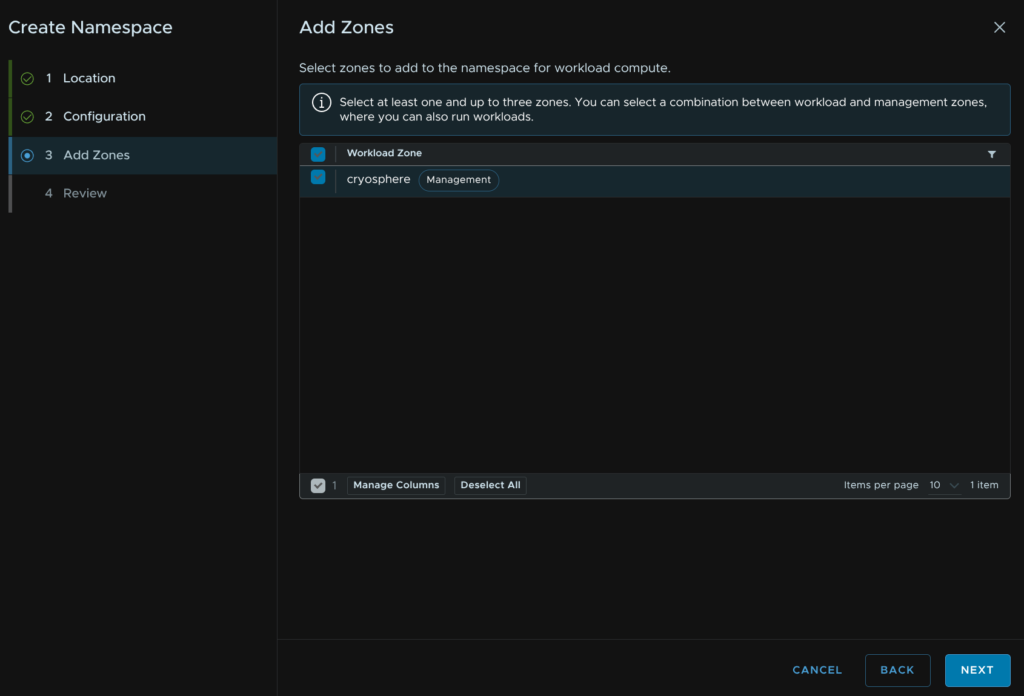

Select your zones, if you only have one like me, the default is fine, then click Next

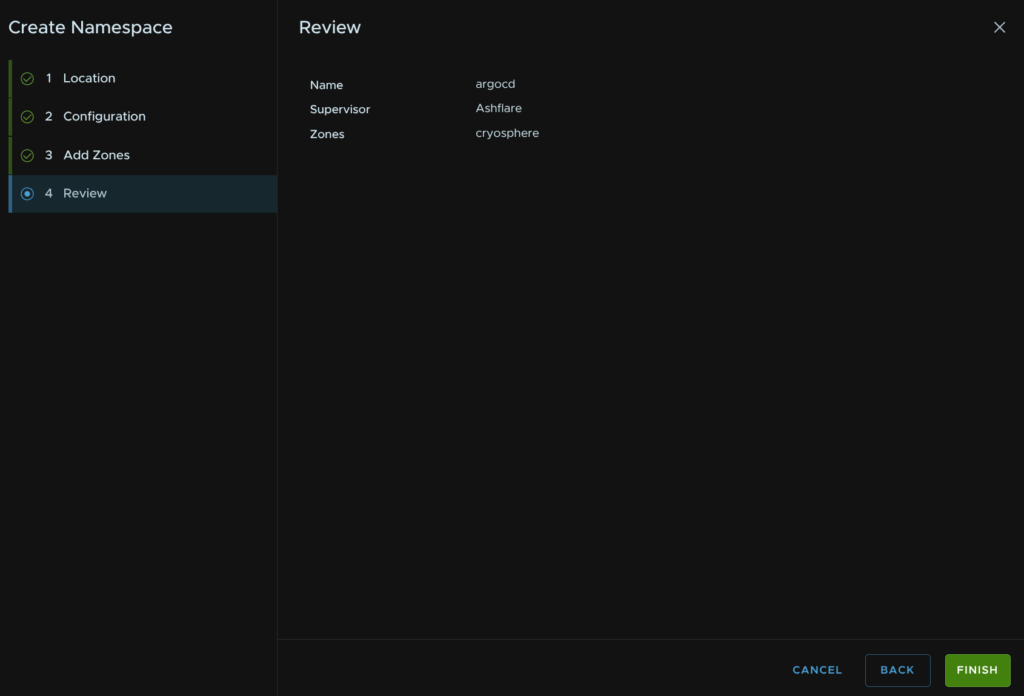

Then click Finish

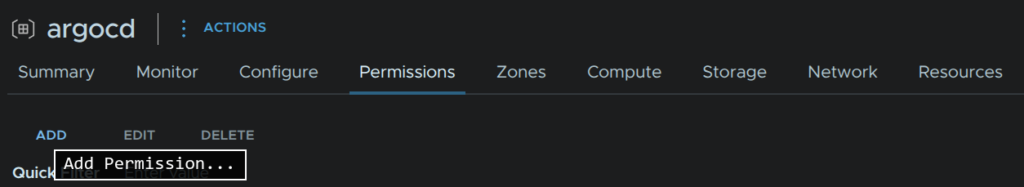

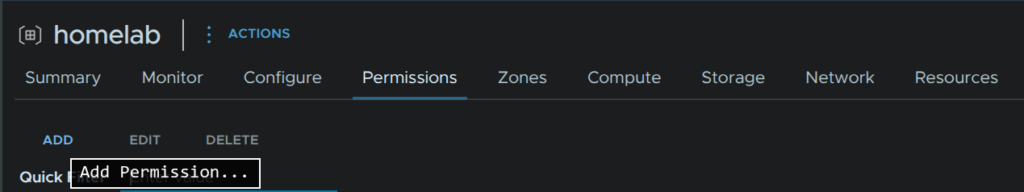

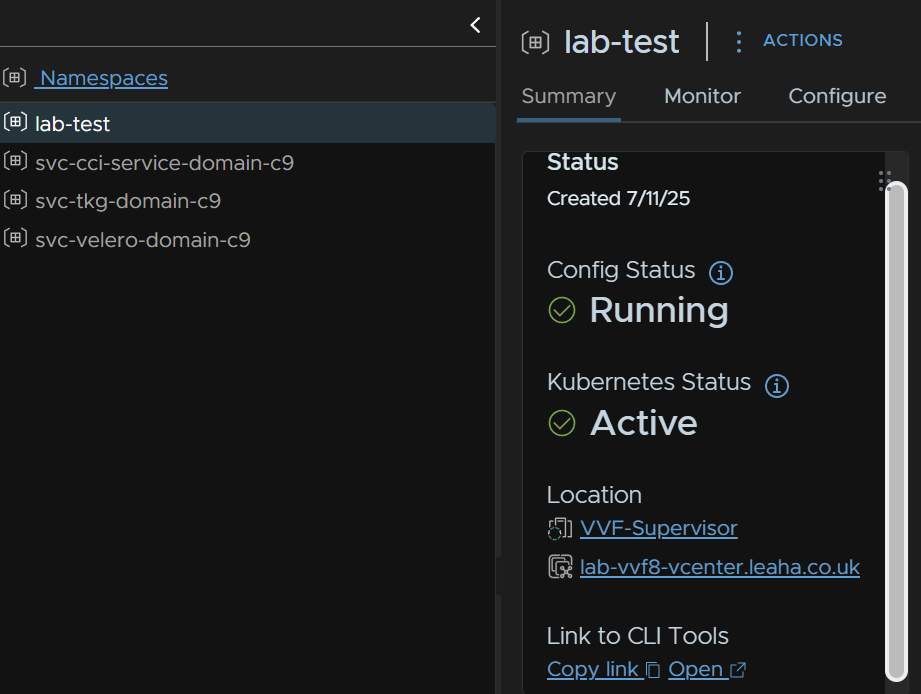

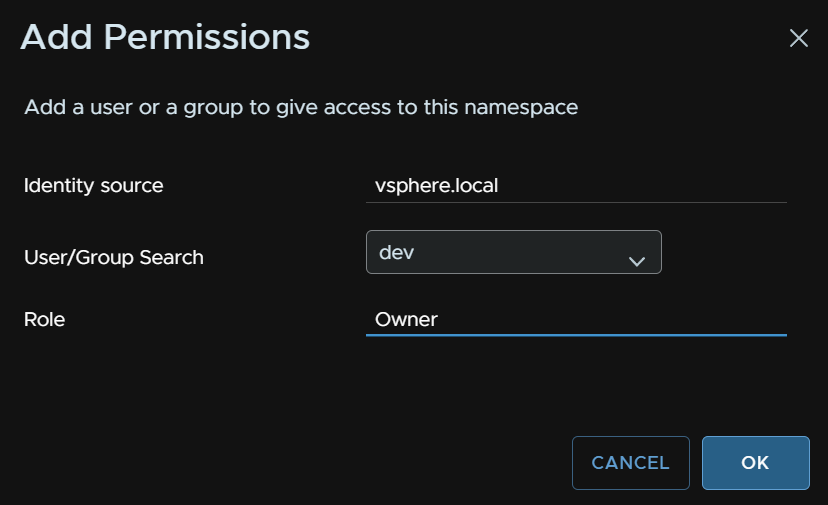

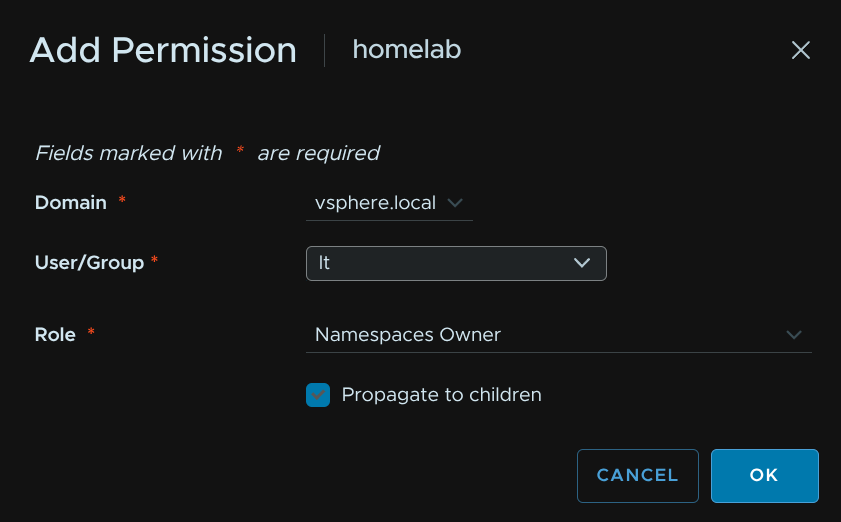

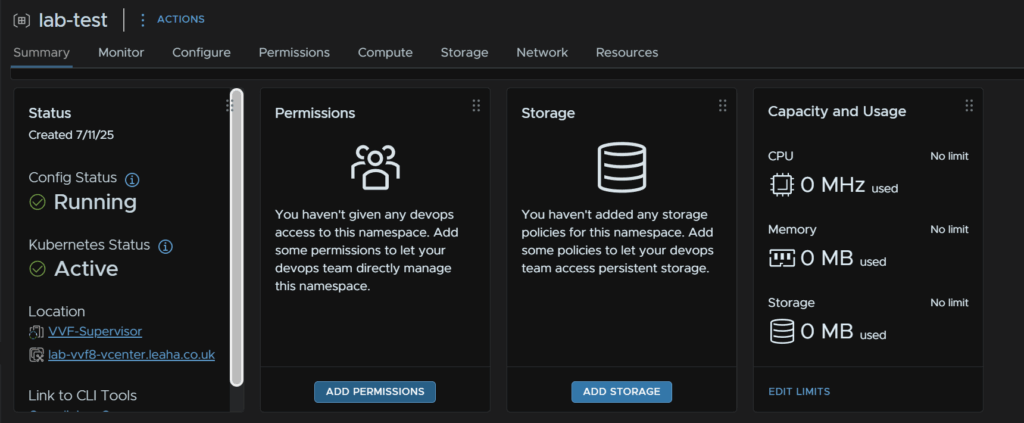

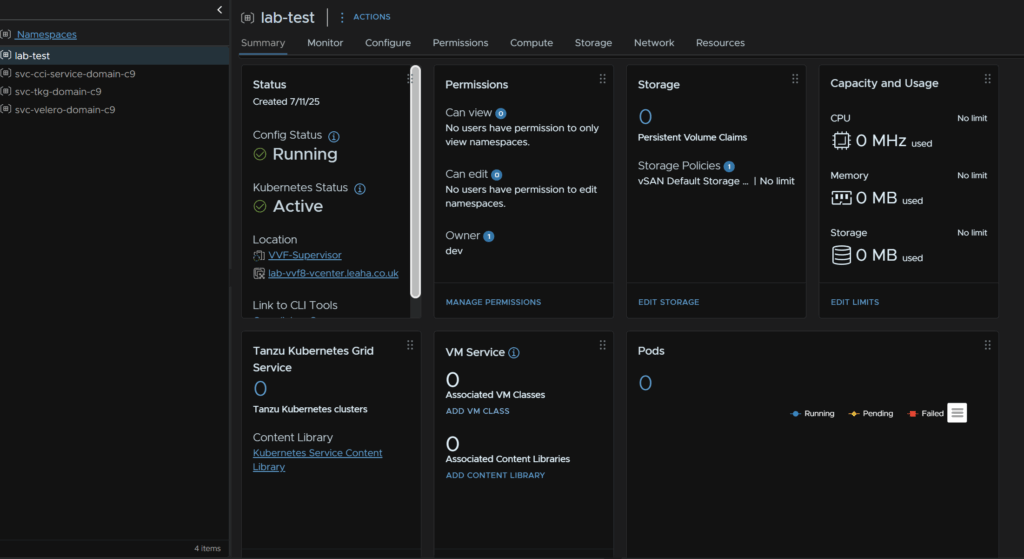

In our new namespace, we can select it on the right, on the permissions page, click Add

Select the identity source, this will want to be vsphere.local, unless you are using another, search for the user, I am giving my user owner permissions here, also enable the propagate to children option, then click ok
There are four roles, namespaces owner, view, edit and query operator

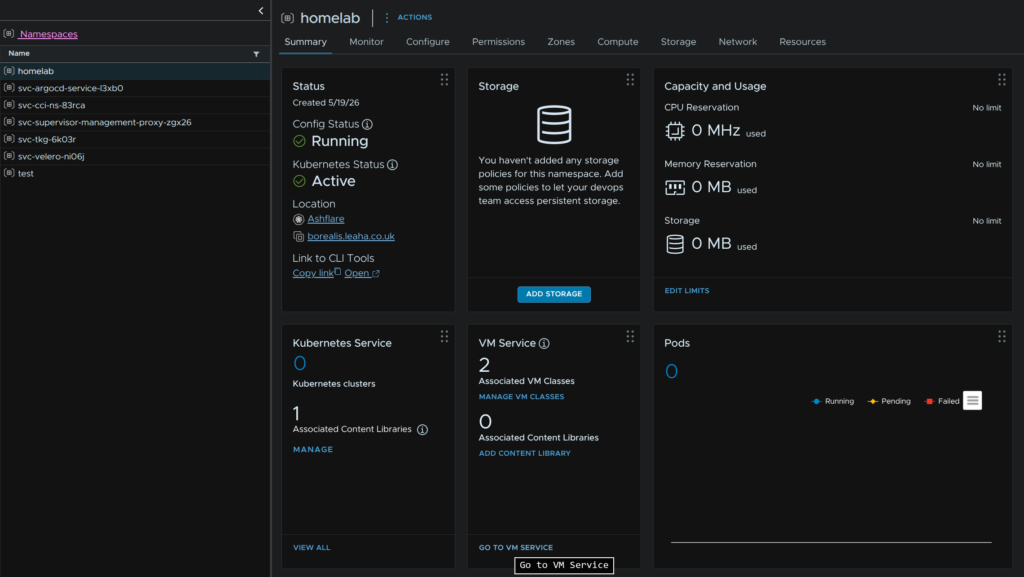

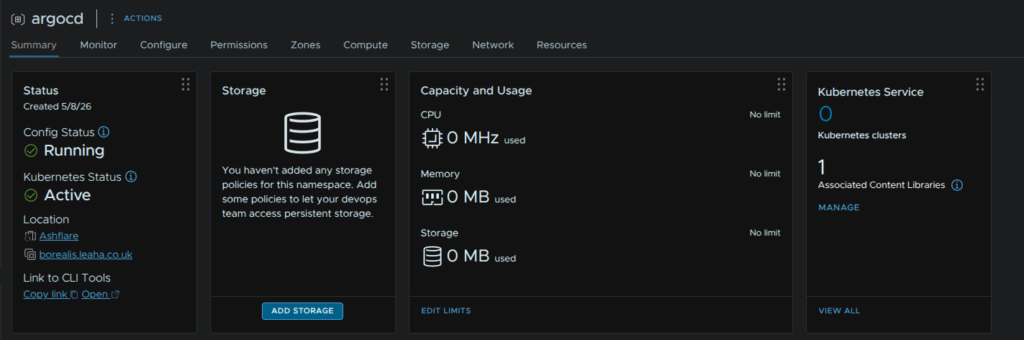

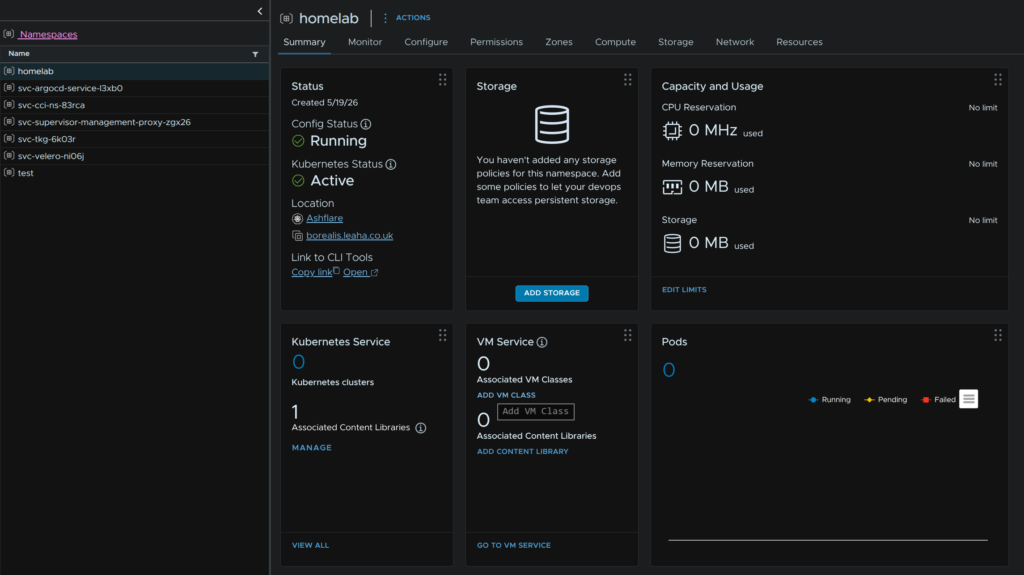

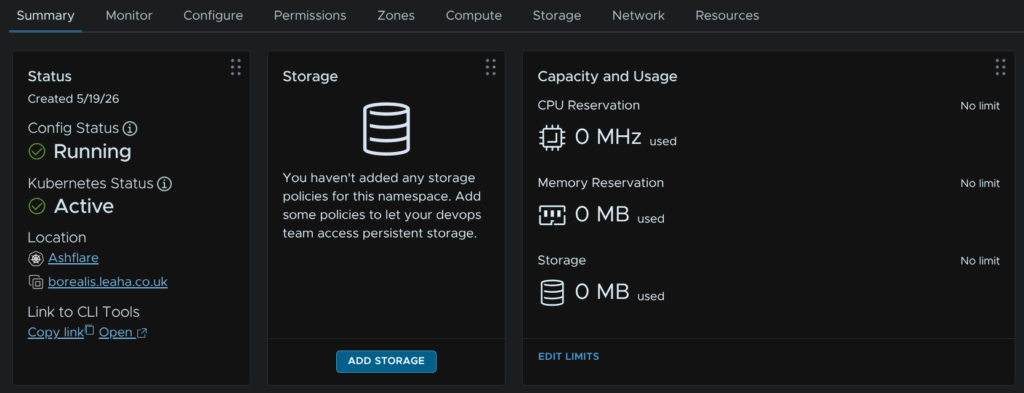

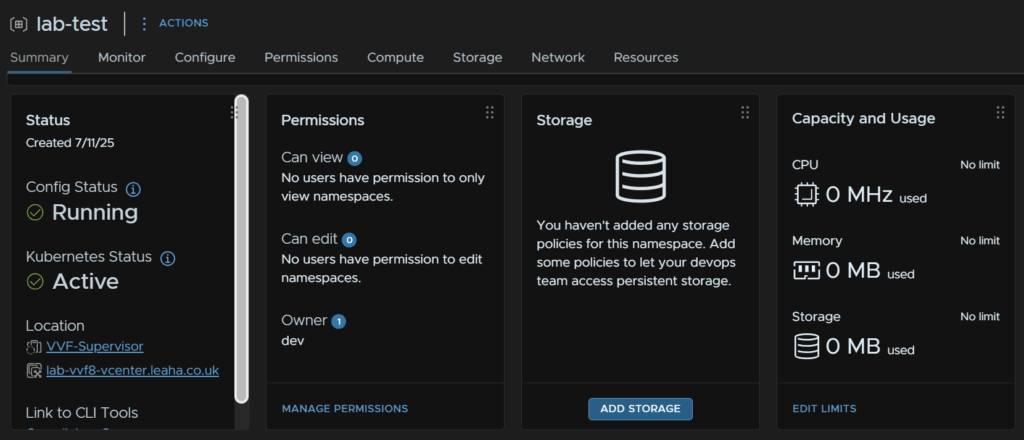

Back under Summary, on the storage Widget, click Add Storage

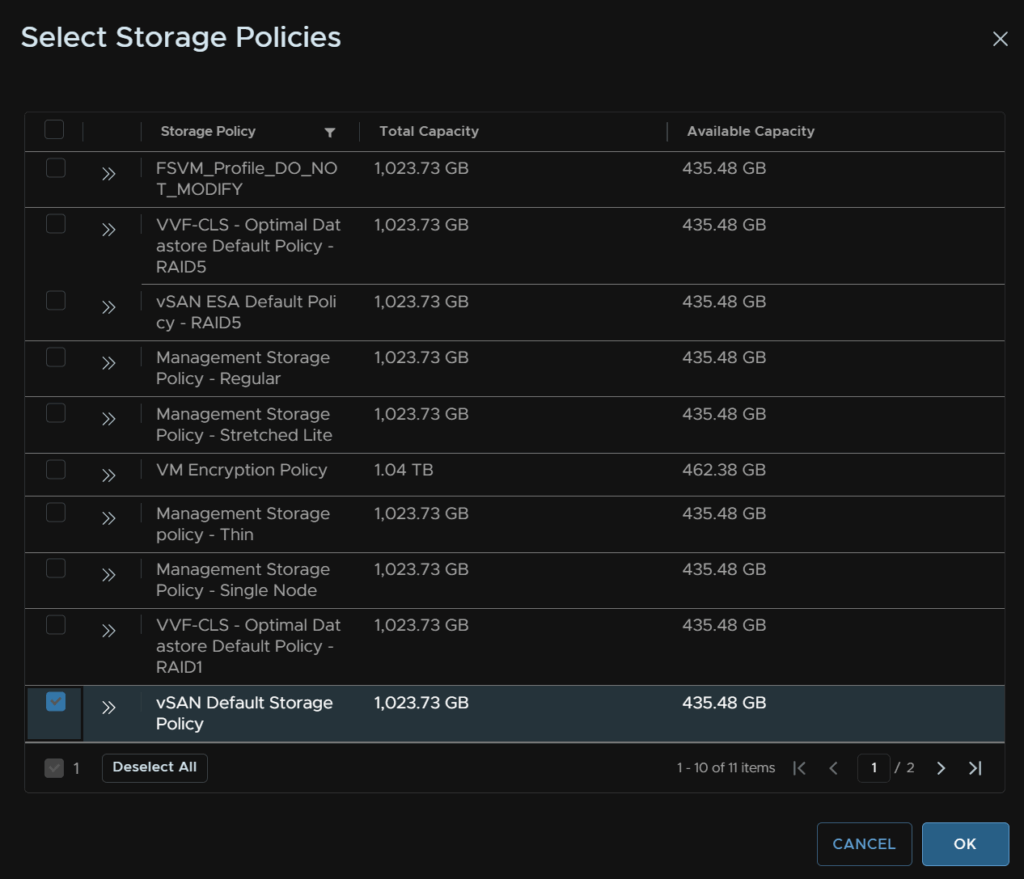

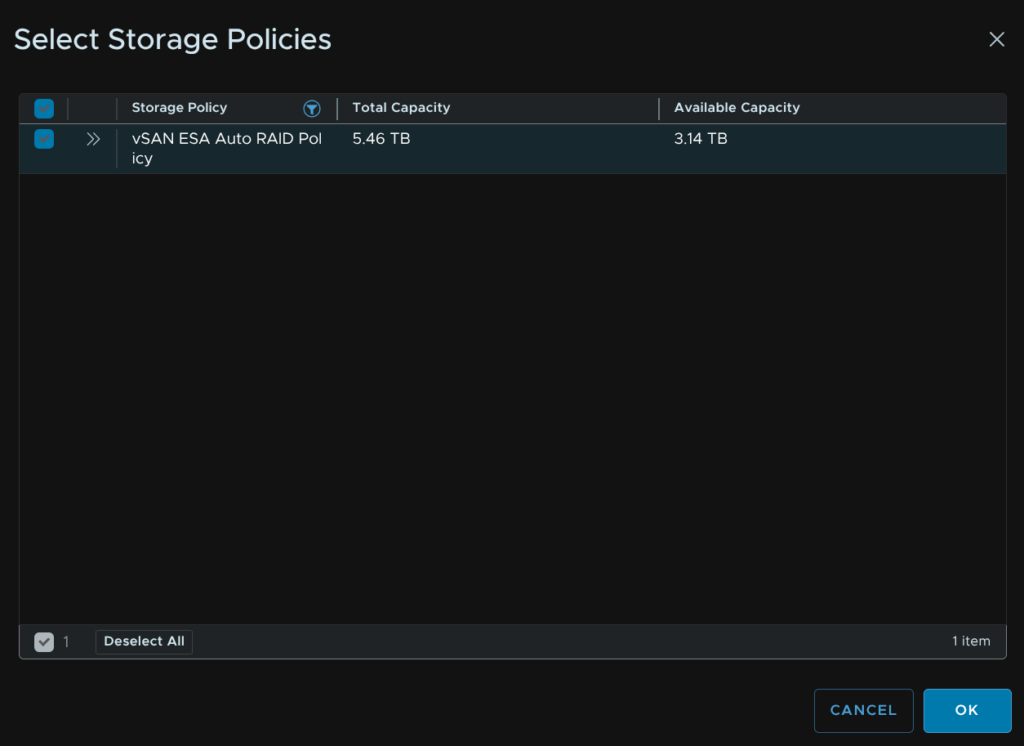

Select a storage policy, I am using the vSAN AutoRAID policy here and click ok

This is the storage policy your user wants to be using when creating Physical Volume Claims on a K8S cluster
It can be checked within the K8S CLI later with

kubectl get storageclasses

It is also worth noting the user, in the case lt, will need at least read rights to the vCenter, cluster and hosts
I have a custom role for users so they have read permissions to the those bits, so the UI will load properly, from there they can access Workload Management to manage their namespace and resources, they wont see any VMs in vSphere though

As an admin you can apply limits like any other resource groups to limit how much can be deployed

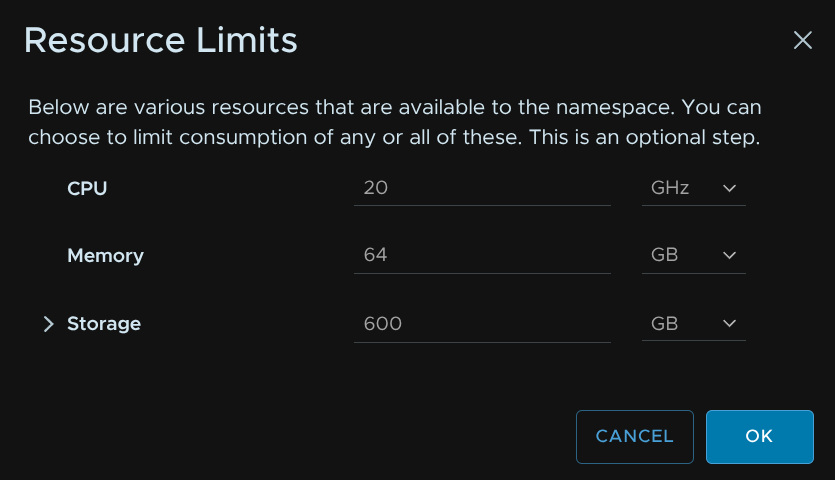

This can be done by clicking Edit Limits on the Capacity And Usage widget

And setting limits then clicking ok

Next we need a VM class, else creating Kubernetes clusters isnt going to work

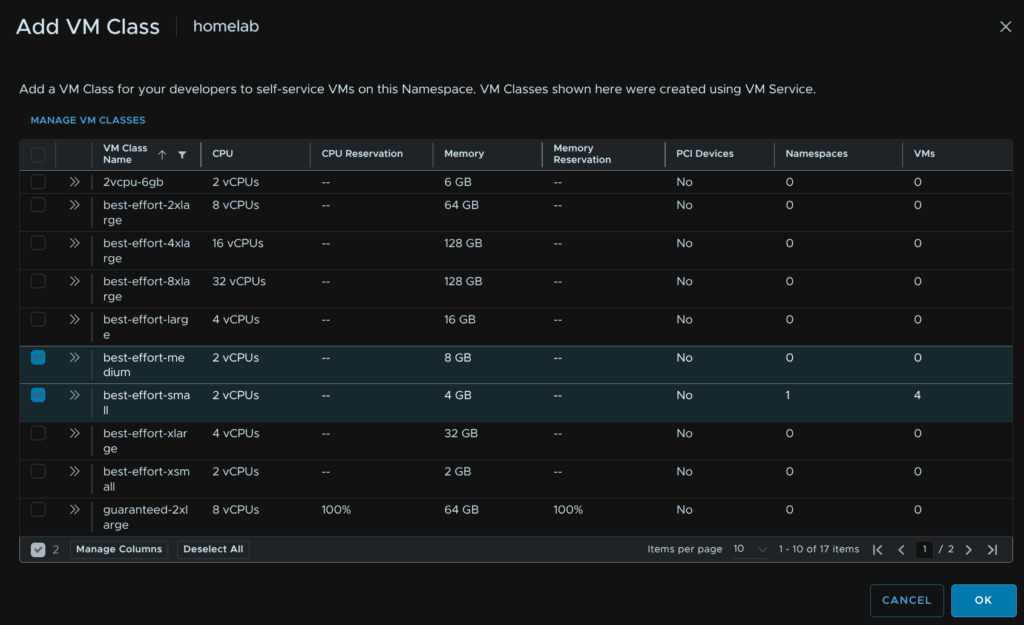

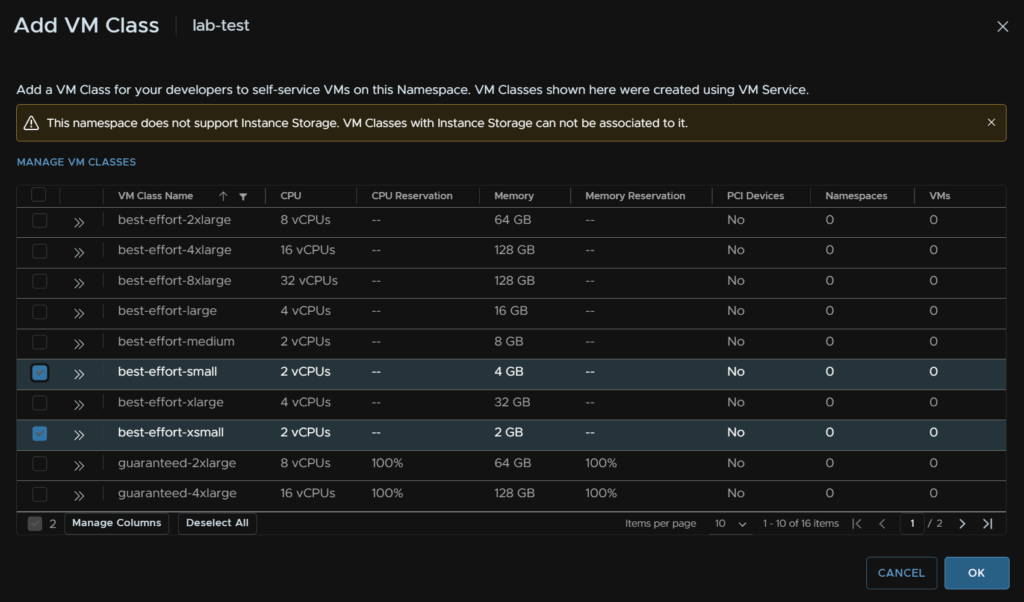

In our new namespace, on the VM Service widget, click Add VM Class

And select the VM class you’d like to be able to deploy in this namespace and click ok

We can use these sizes to define our VKS cluster when we deploy them

If we click Go To VM Service

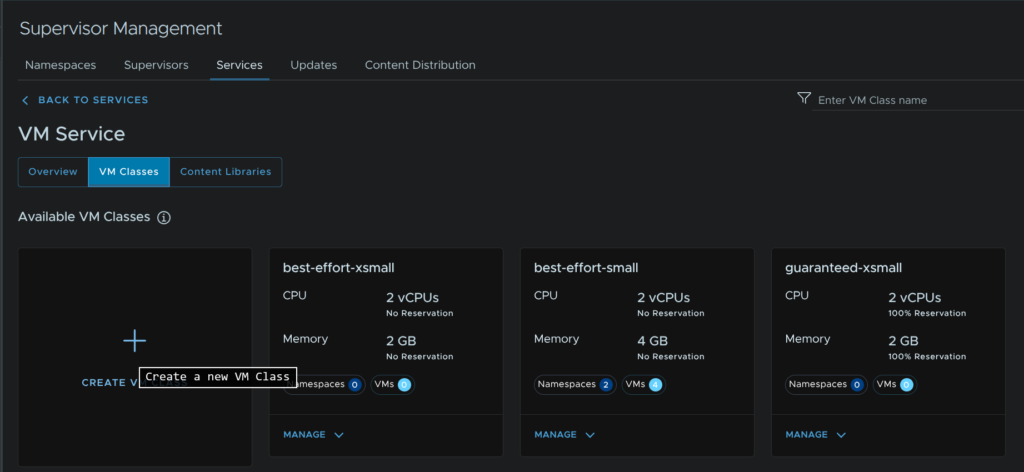

Then click VM Classes/Create VM Class

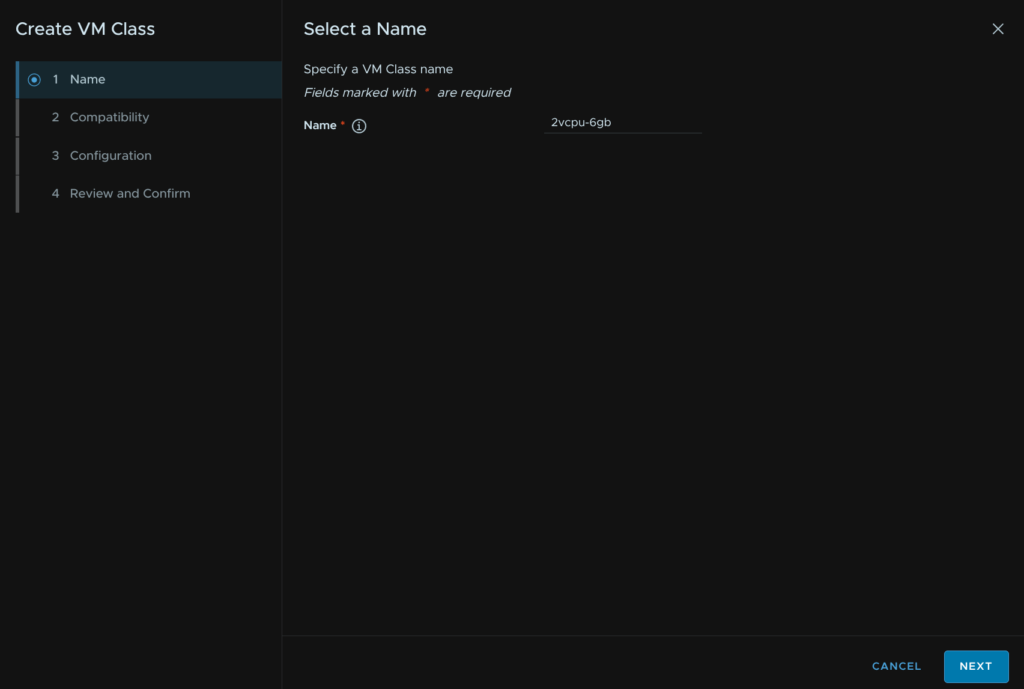

Give a name in all lowercase with no spaces and click Next

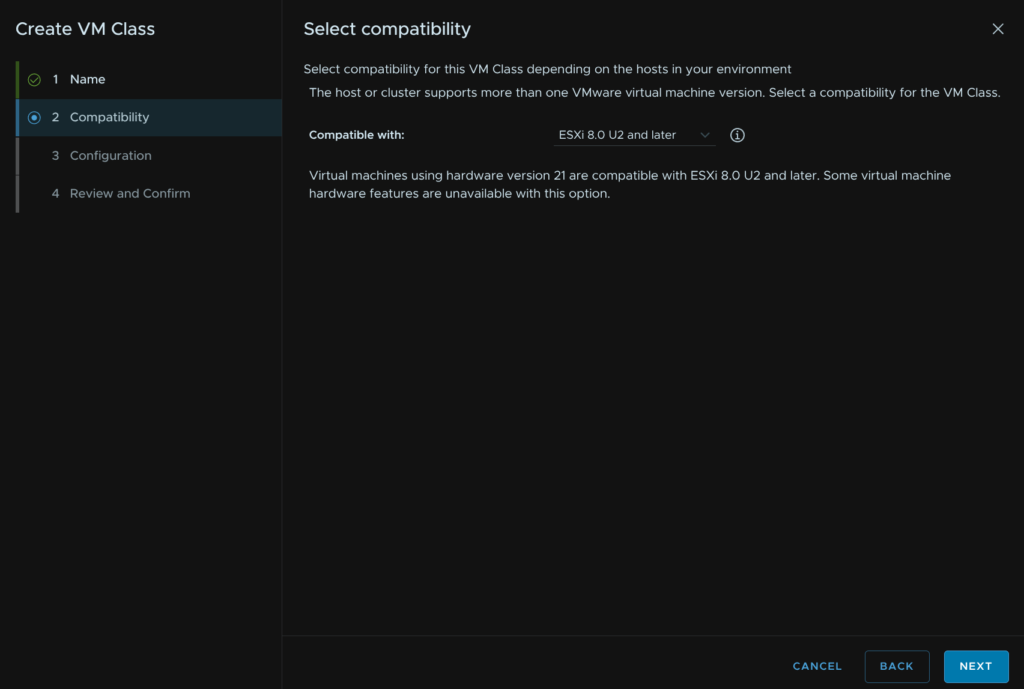

Select a VM compatibility and click Next

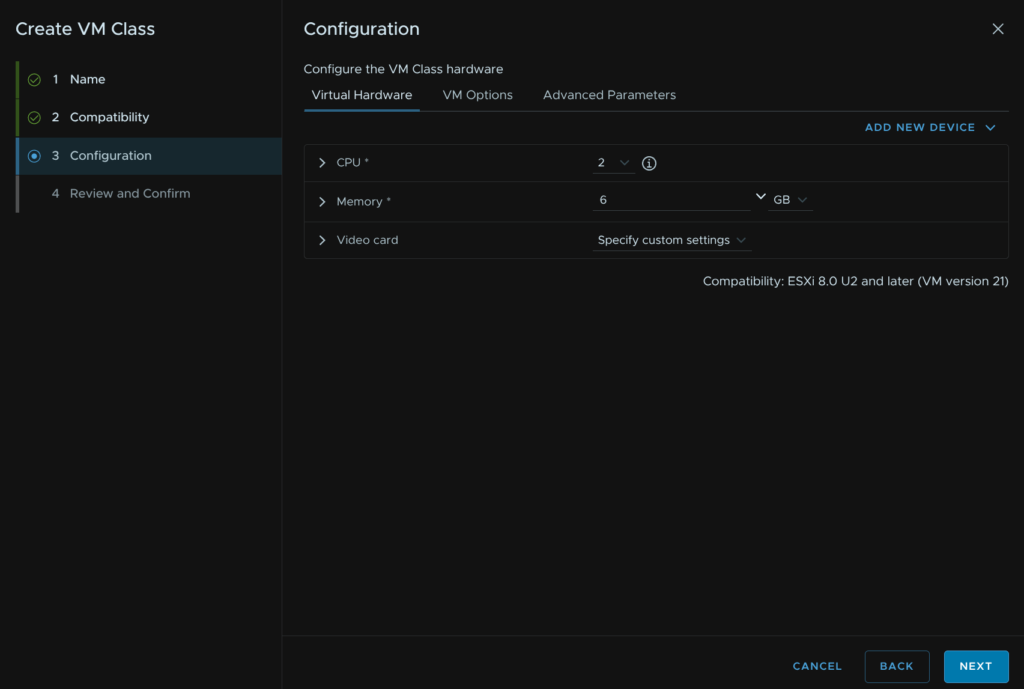

Set the vCPU and Memory then click Next

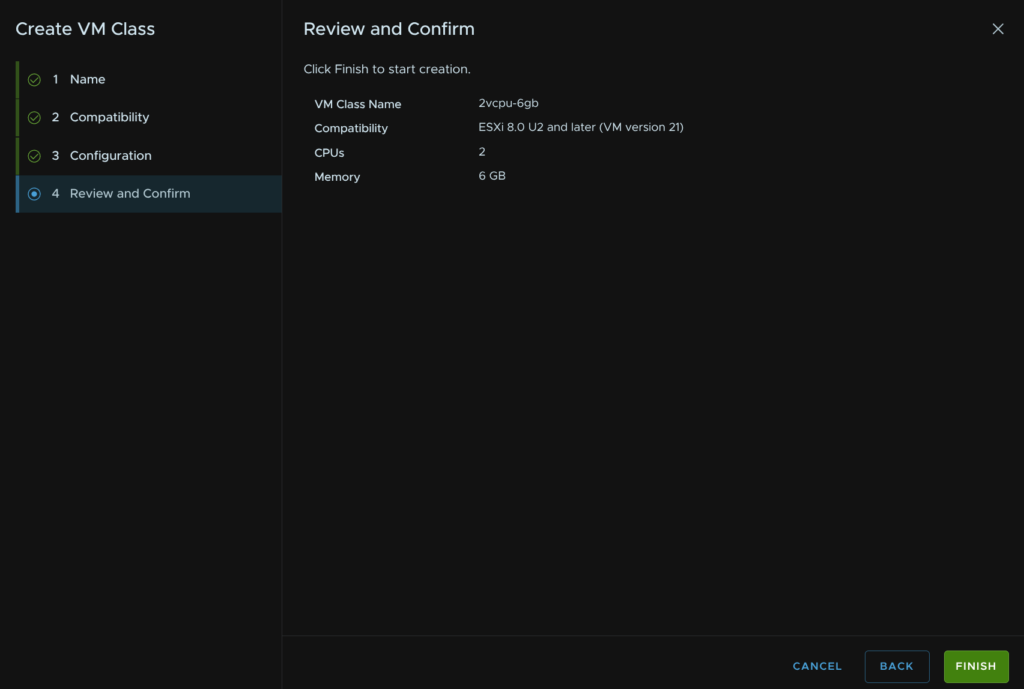

And click Finish

We can then add them to a namespace like before

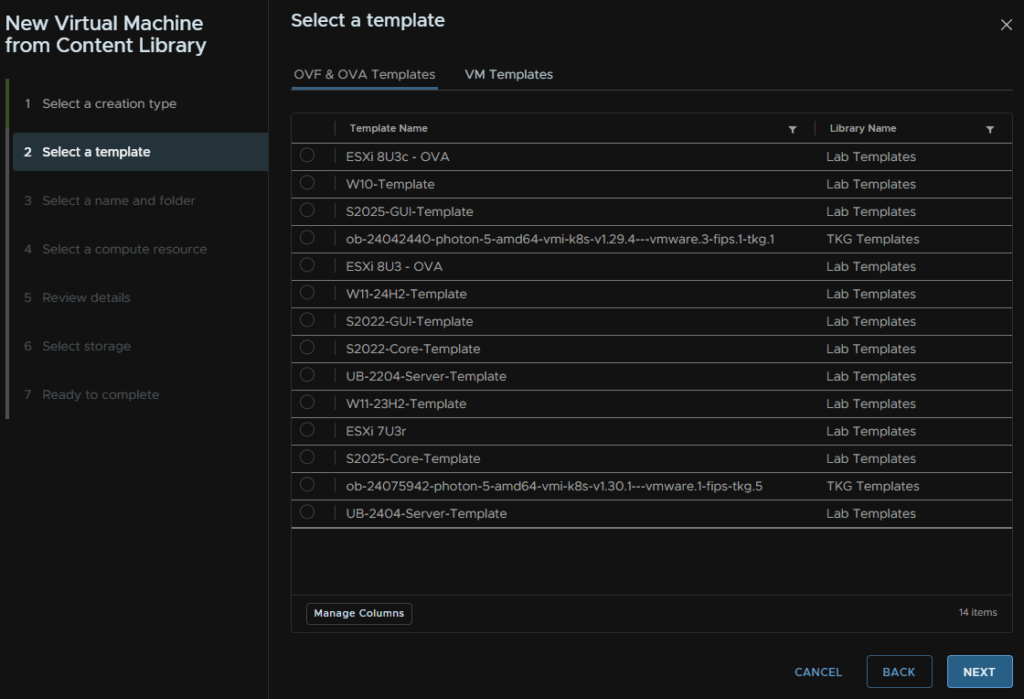

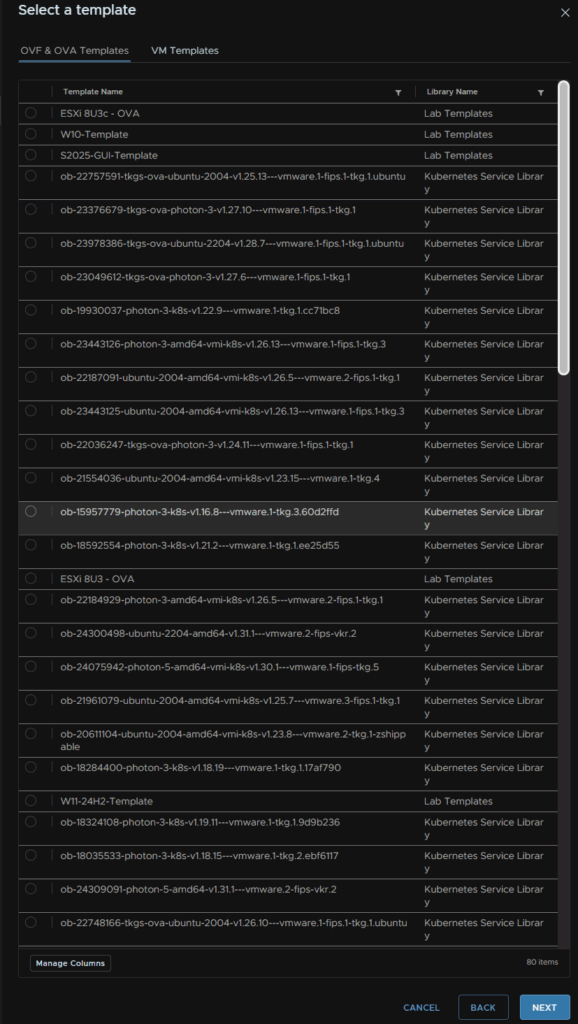

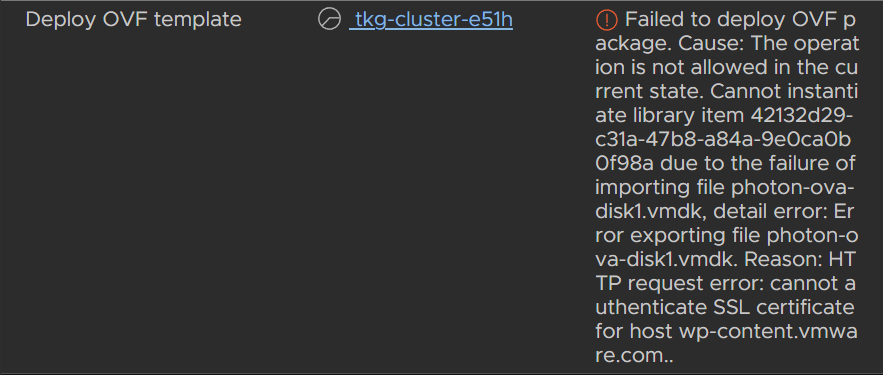

If youre like me and hate that after setting up the supervisor service, your template deployment, using content libraries is now very cluttered with Kubernetes templates, it looks a little like this

This is a nightmare to get to my old templates that were there as I need to search through everything

There is a way to deal with this by using a manual Kubernetes content library with a few images, as you likely dont need them all, to keep things simple

We will be removing the default internet subscribed content library, which you can set back up so this is reversible, and manually downloaded the right images we need
This has the draw back pf being managed by yourself for the latest releases, but de-clutters the template deployment menu

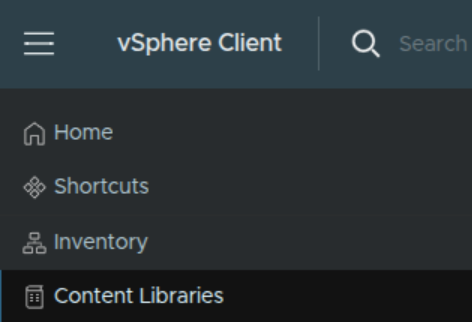

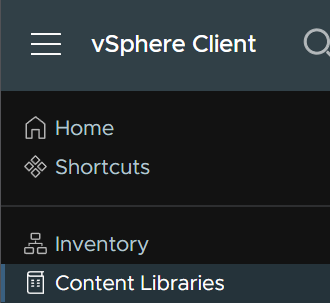

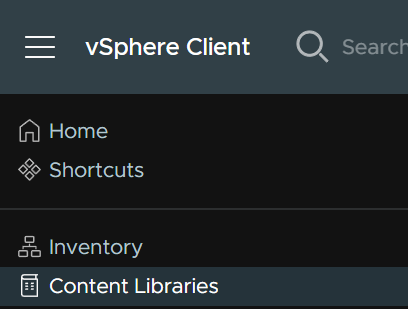

Click the three lines in the top left of vSphere and click Content Libraries

We can click Create for a new library, from the Content Libraries menu

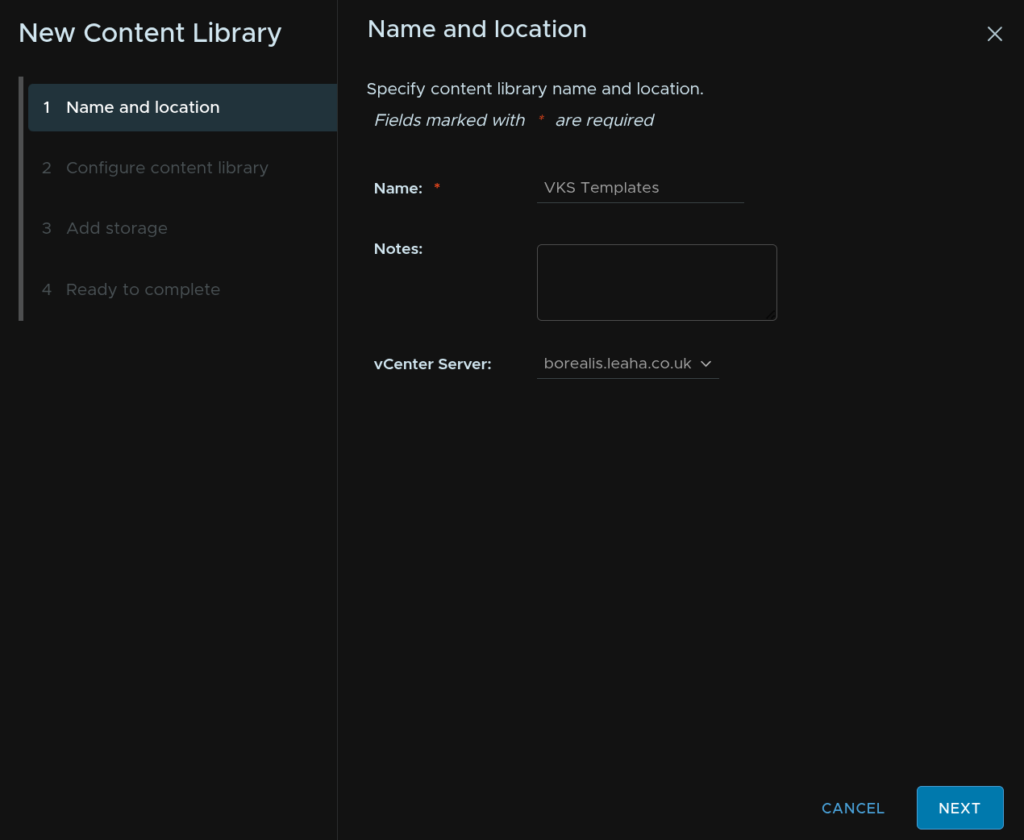

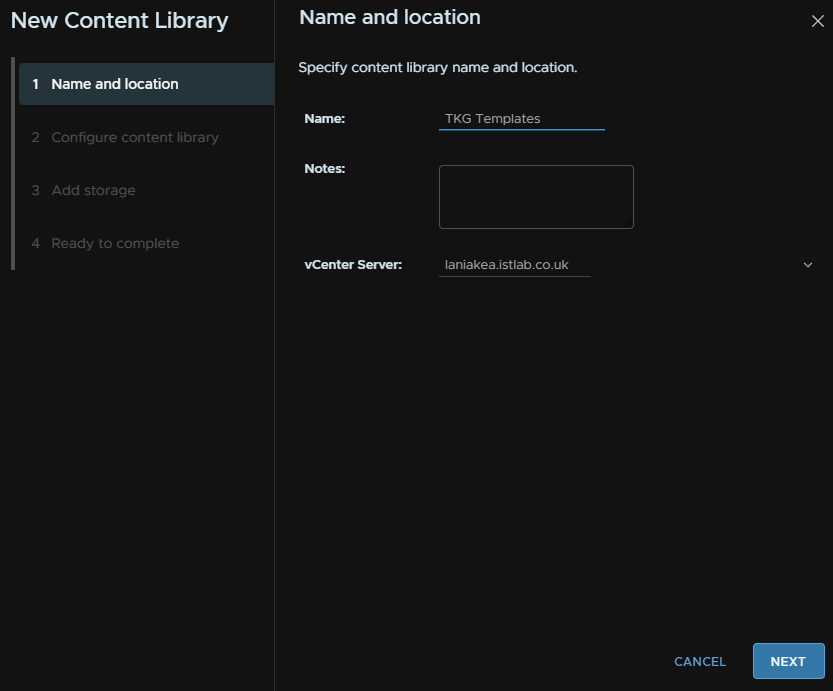

Give it a name and click Next

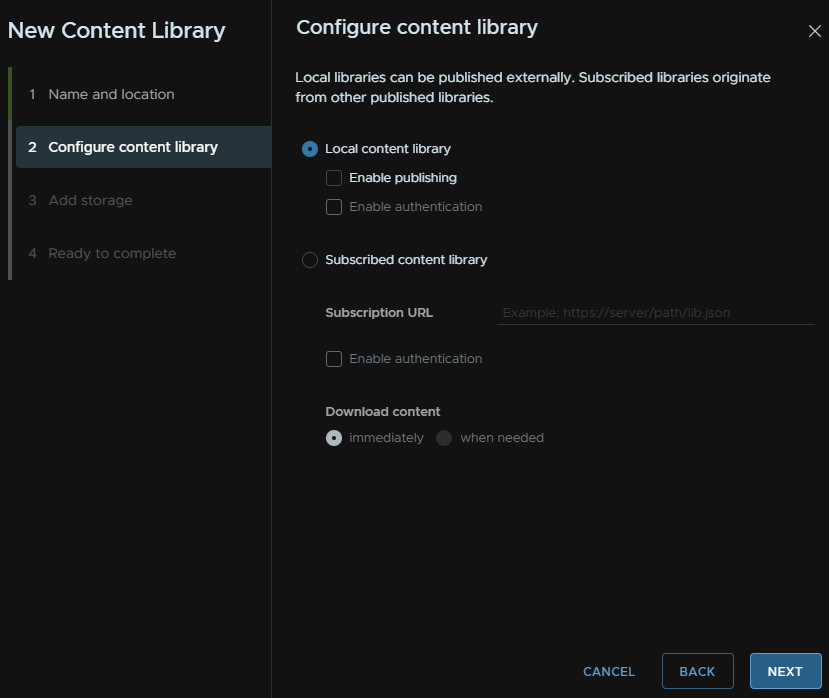

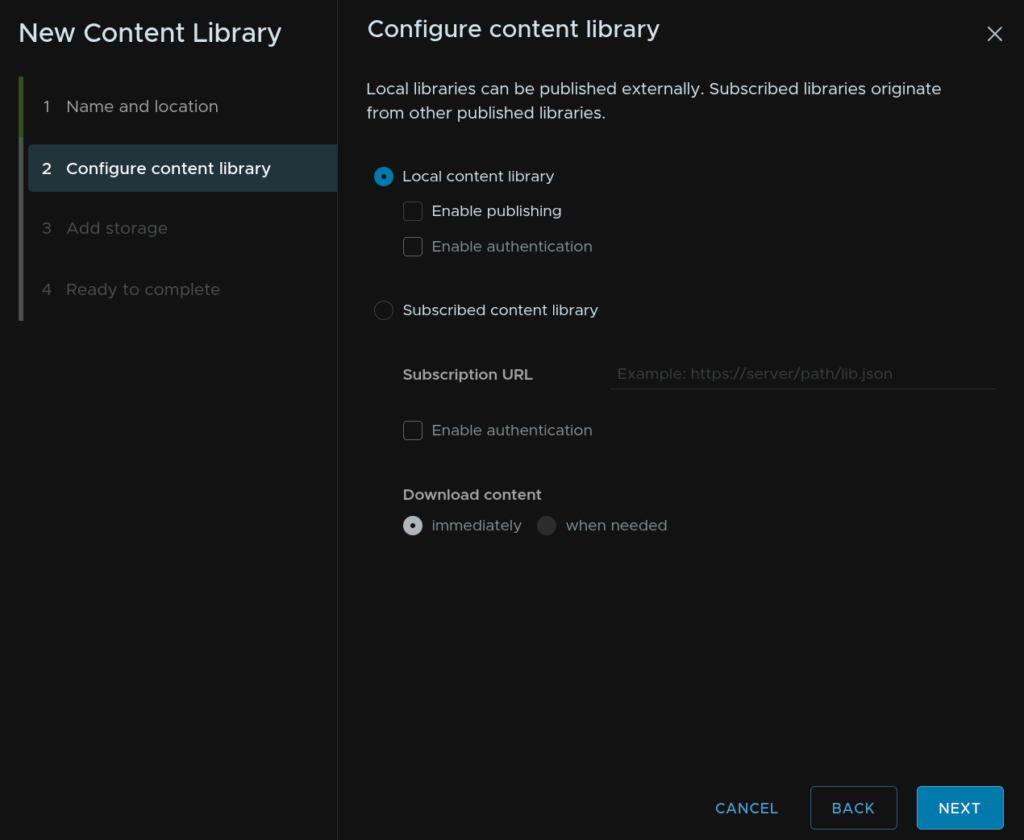

Make sure Local Content Library is selected and click Next

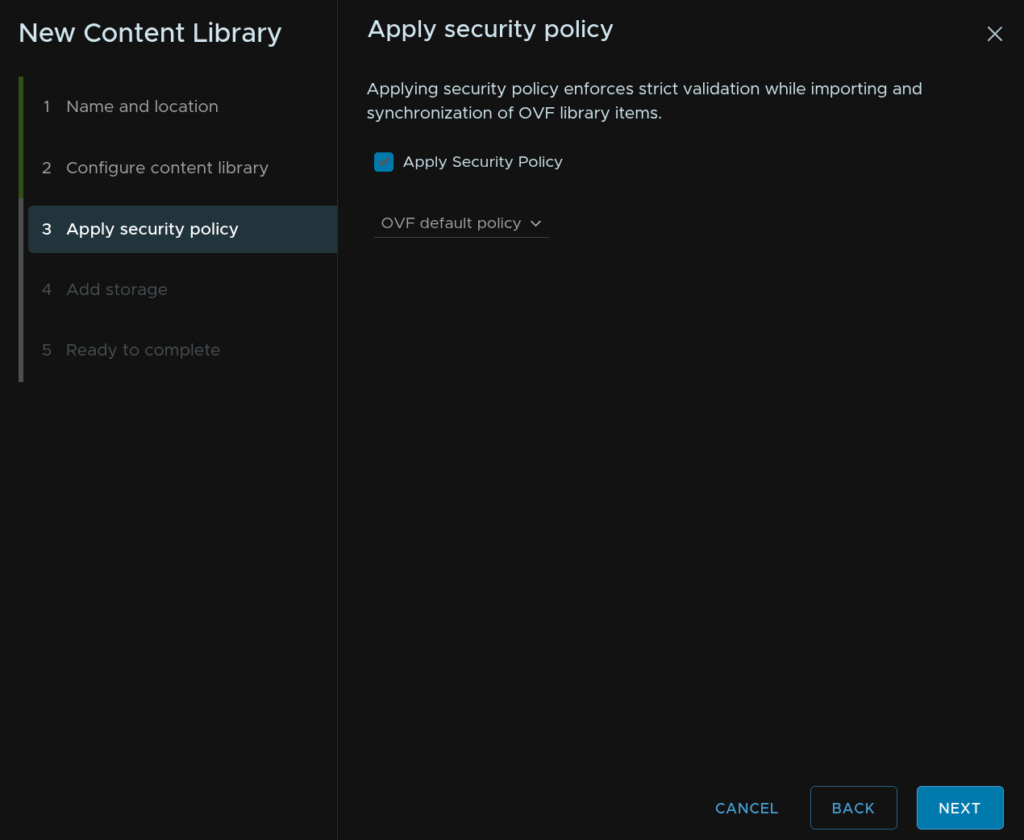

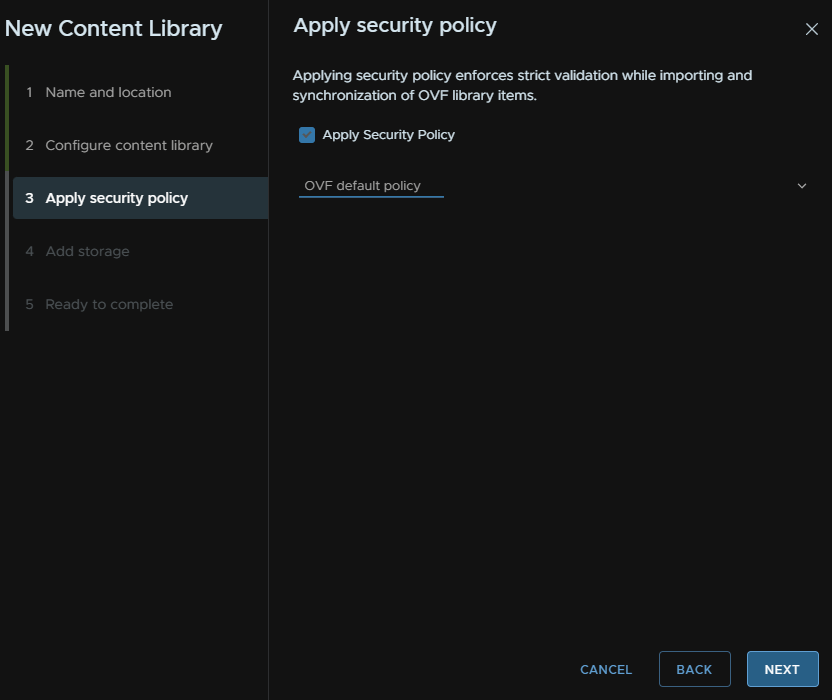

Click Apply Security Policy and click Next

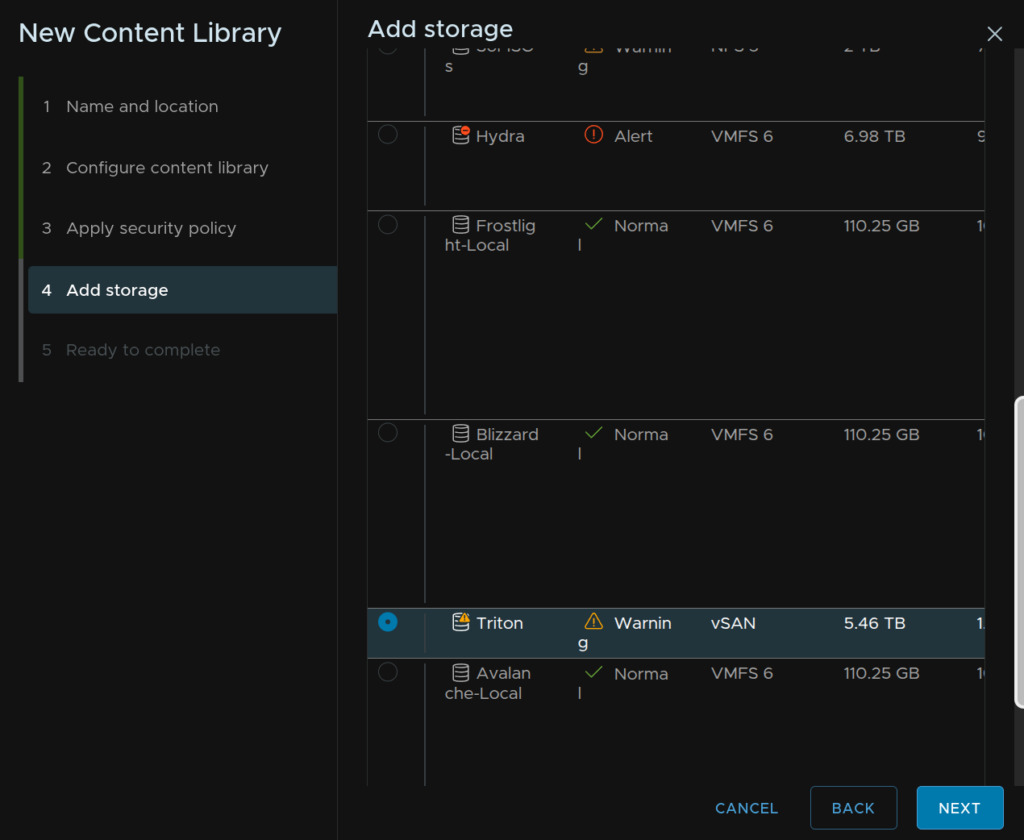

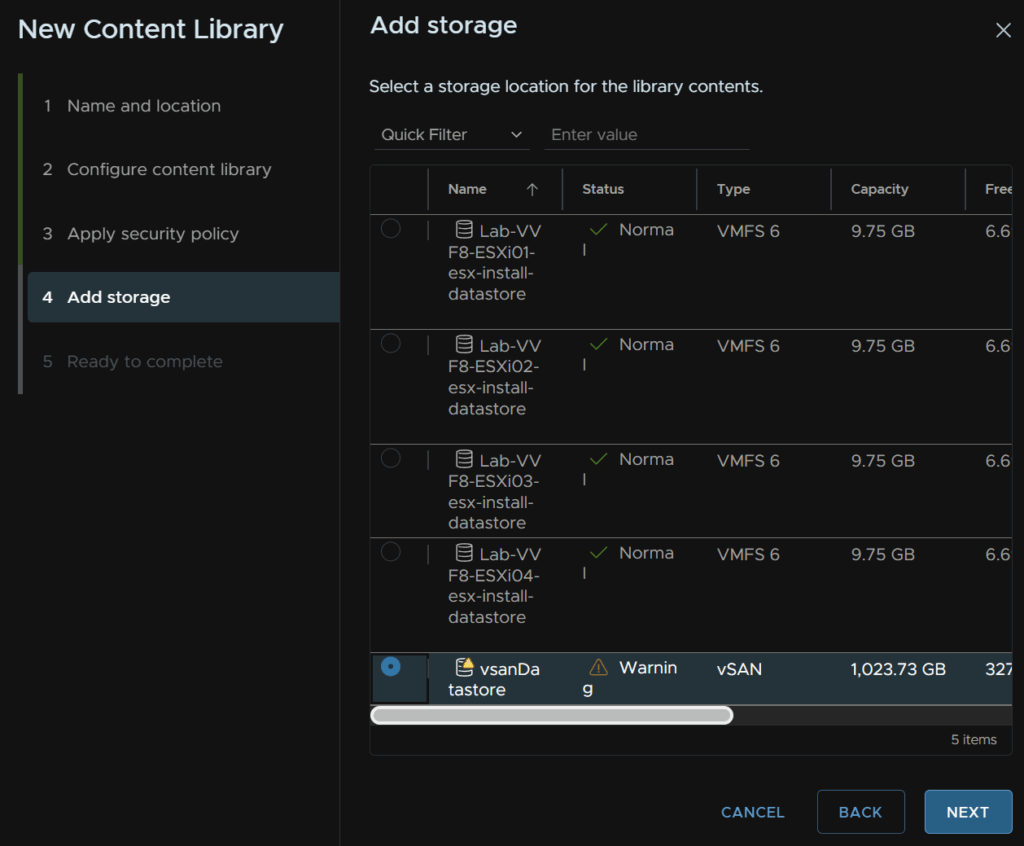

Select your datastore, if you have vSAN, this is what you should use, then click Next

And click Finish

Now we have our library, we need to download some templates for it

If we head to the URL the remote content library uses, we can see the images, the URL is
https://wp-content.vmware.com/v2/latest/

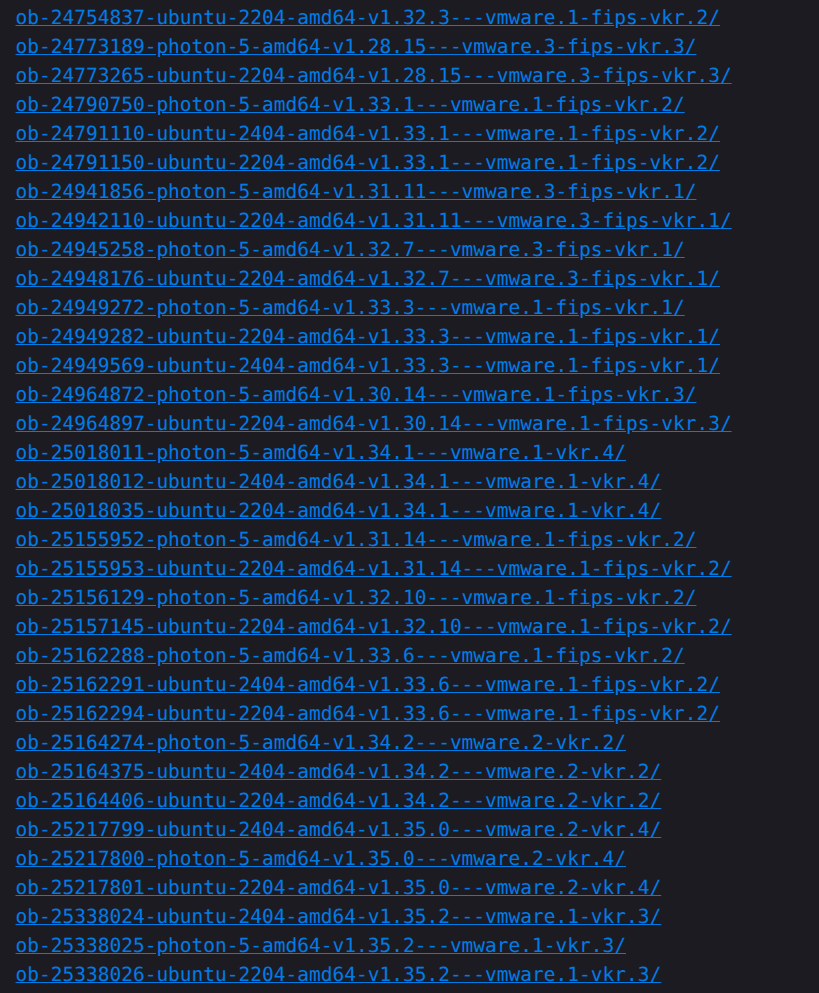

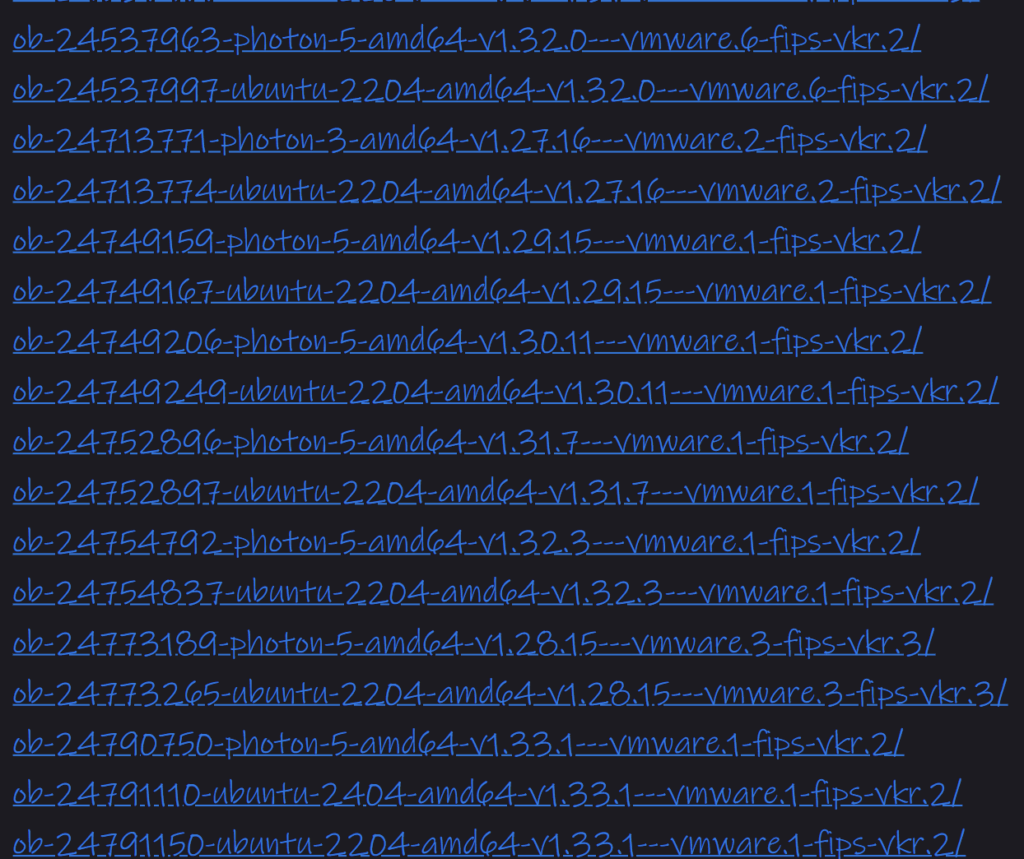

Here we can see all the templates and their links

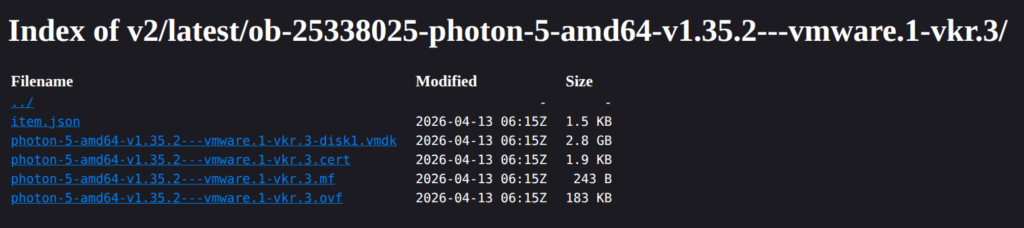

I am going to click into the last one with VKR in the name, ob-25338025-photon-5-amd64-v1.35.2—vmware.1-vkr.3, I do recommend Photon OS as they are significantly smaller VMs
And I will create a local folder with the same name to download the files to

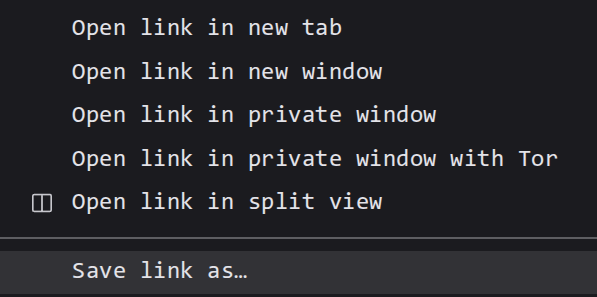

Right click all the files, except the item.json, and click Save Link As

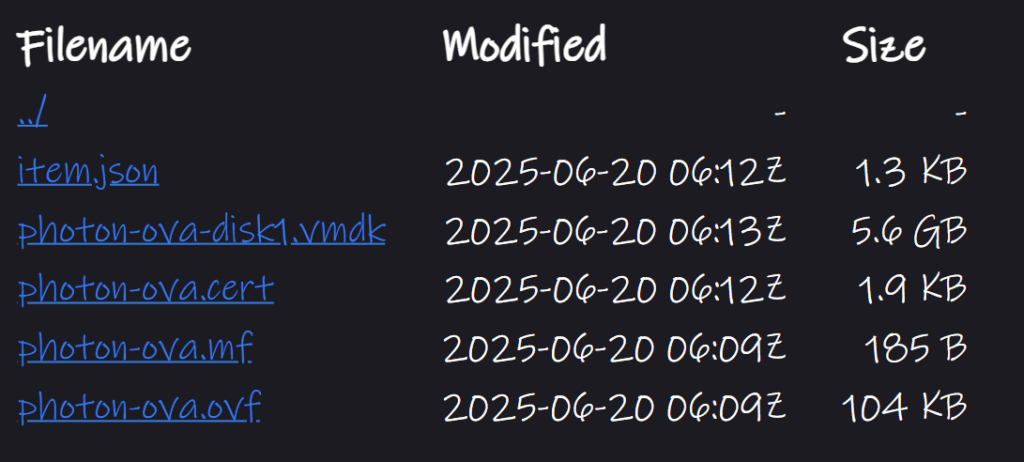

Some older images may look like this

And save it to the folder we just created, matching the release name

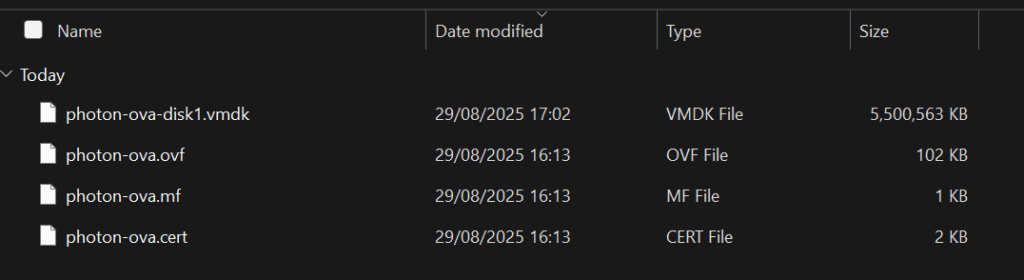

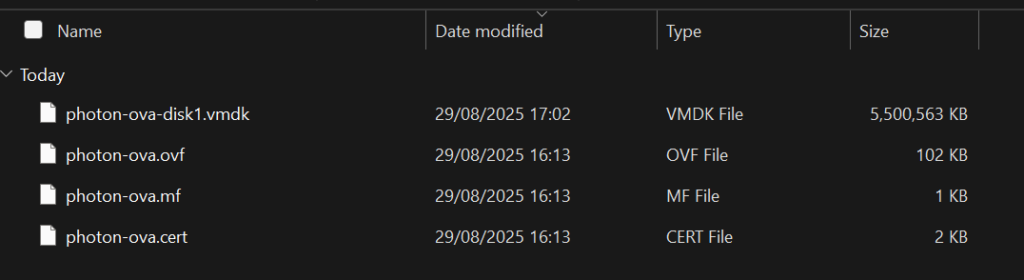

Once you have everything, it should look like this

Back in vSphere, we need to select the content library

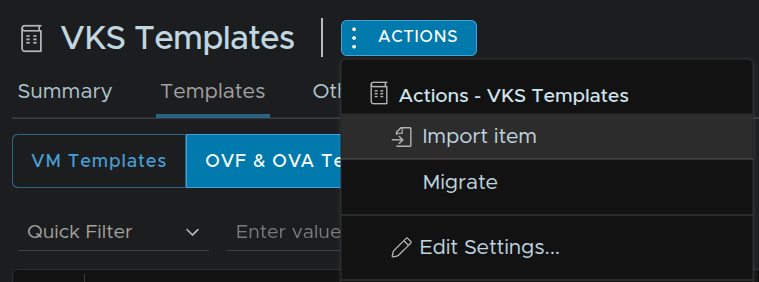

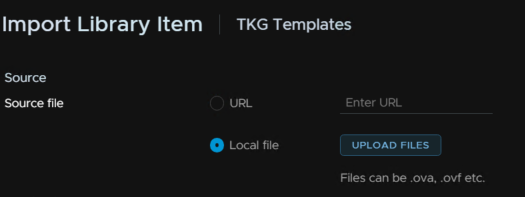

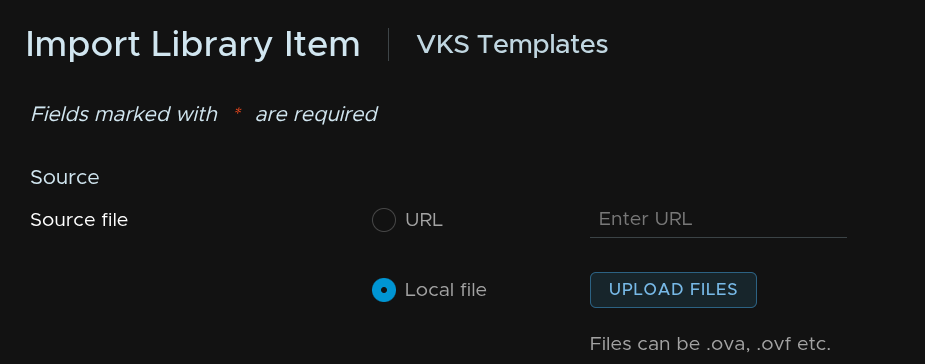

In vSphere, head to the content library and click Actions/Import Item

Select Local File, and click Upload Files

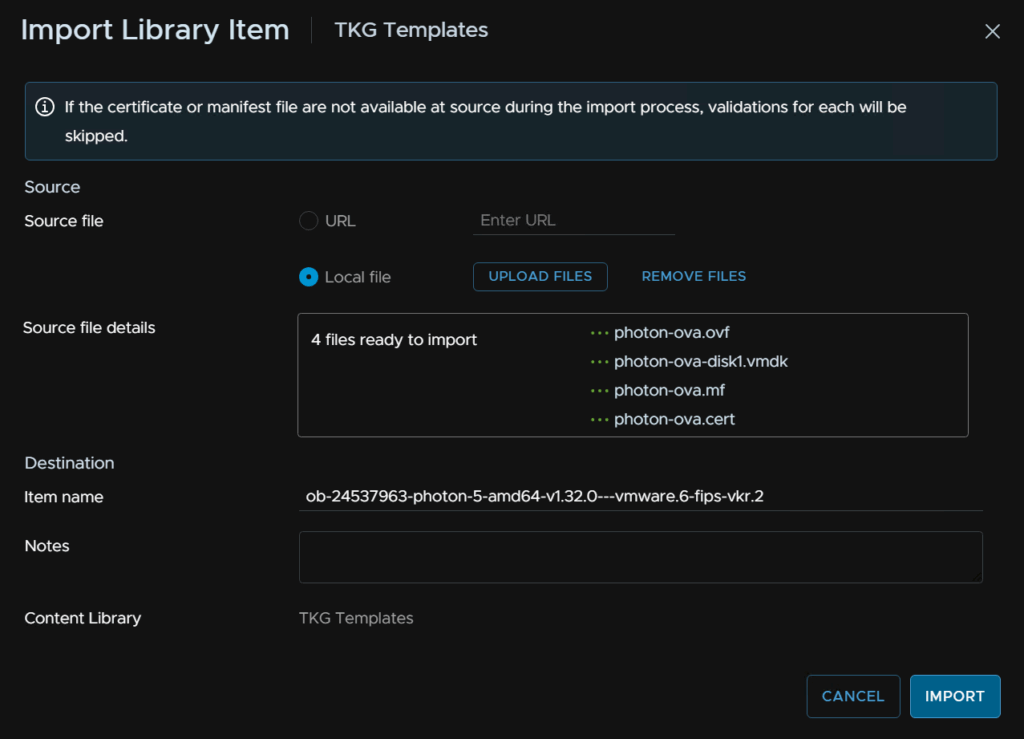

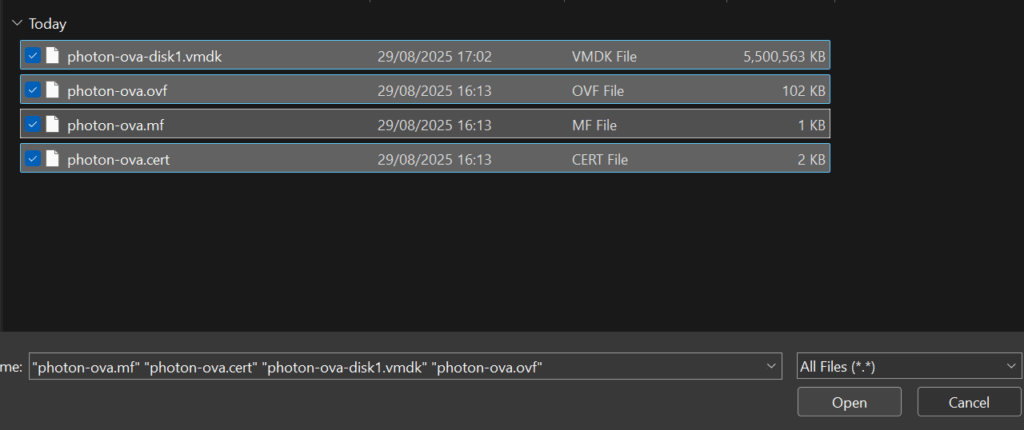

Select all four of the files in a folder from our earlier downloads and click Open

Make sure the name matches exactly whats on the website repository for this, and click Import

Then repeat for any remaining downloaded images

Once they have all been uploaded, we need to set the VKS default repository back up on the supervisor, as that was using the remove content library we removed

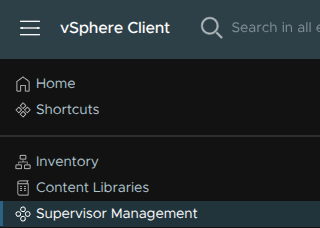

Click the three lines in the top left of vSphere and click Supervisor Management

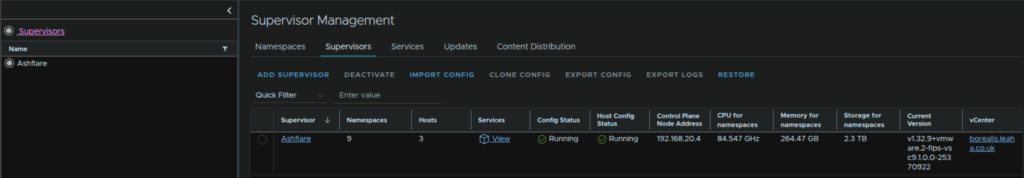

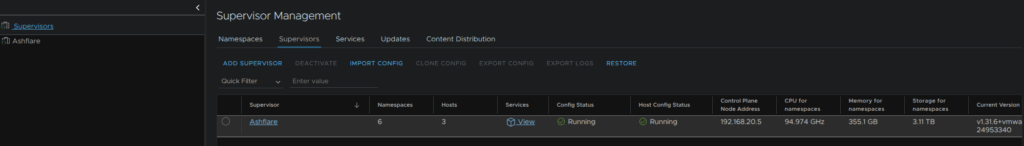

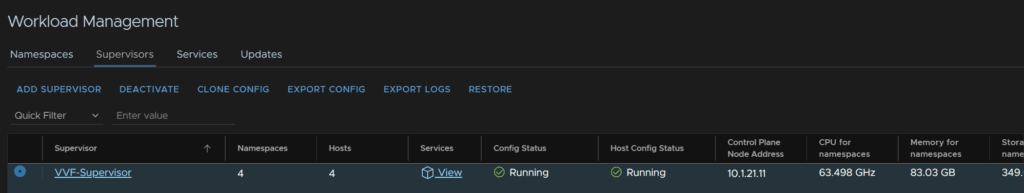

Click the Supervisors tab, then click your supervisor, in my case, Ashflare

Before proceeding its important this is done before any VKS clusters are provisioned, if you do have some, ensure the images used in all cluster deployments are present in the new content library else it will break them

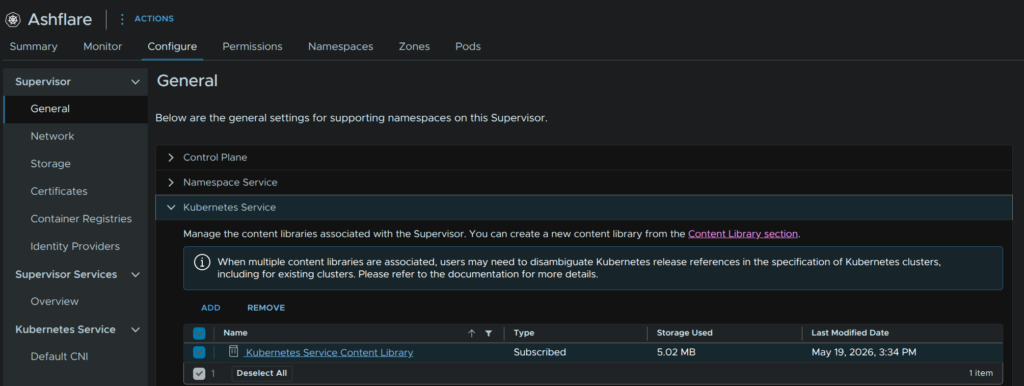

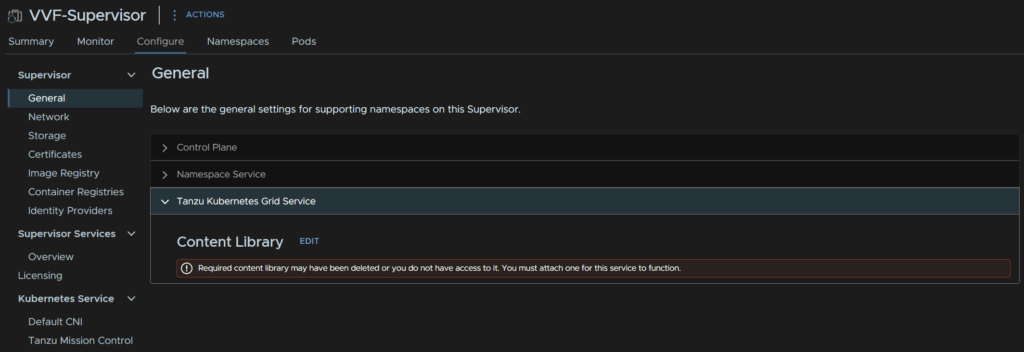

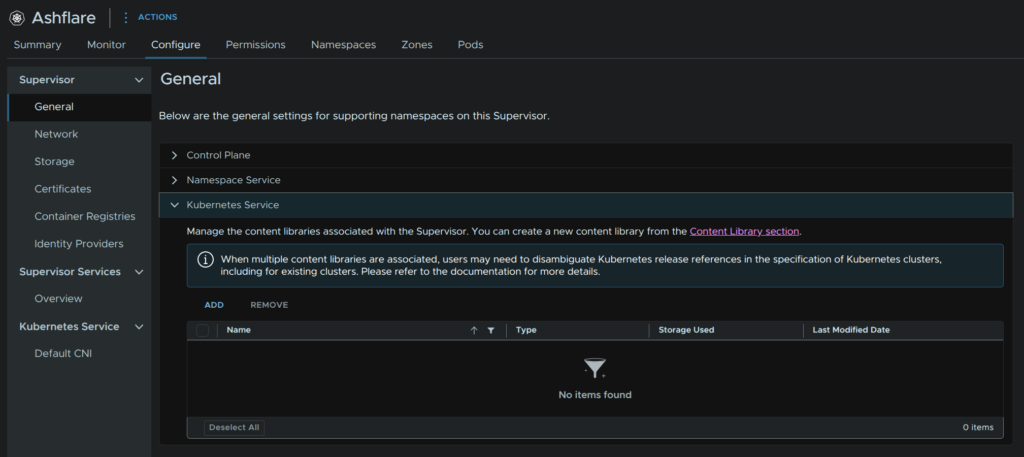

Head to Configure/Supervisor/General then expand Kubernetes Service, check the box for the old content library and click Remove

Then click Remove

Once thats removed, it’ll take a few mins, click Add

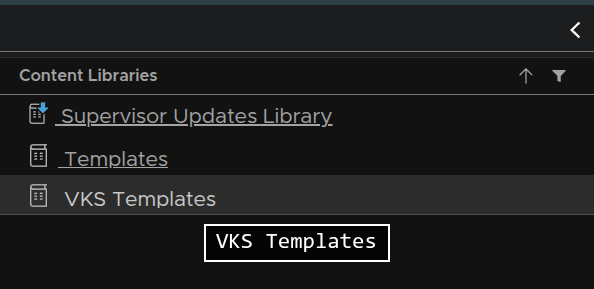

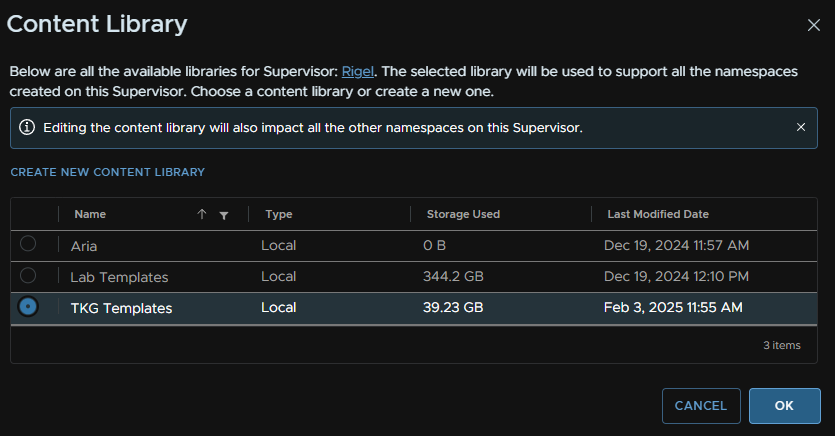

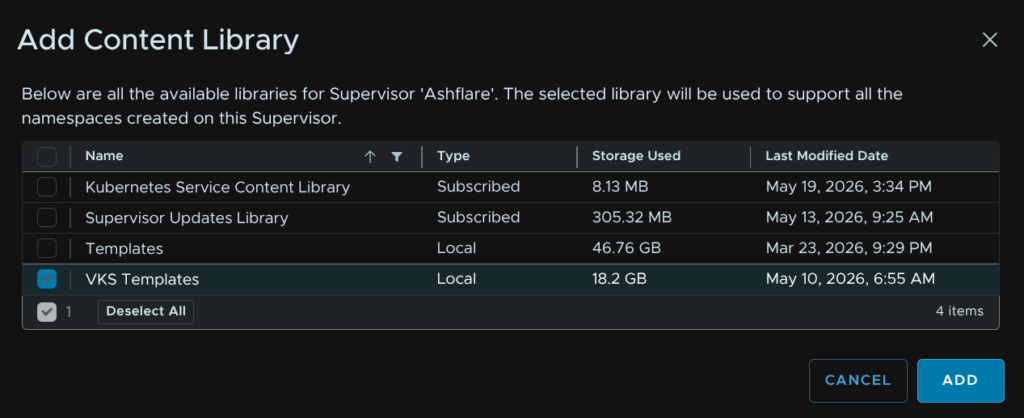

Select our custom VKS Templates content library and click Add

We should then see the library after a refresh

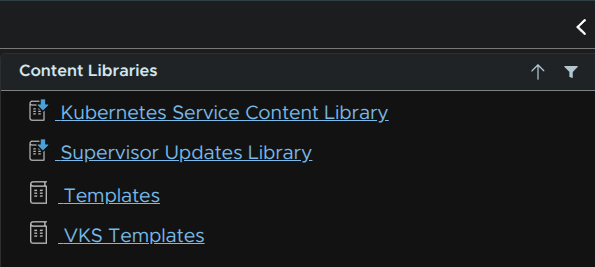

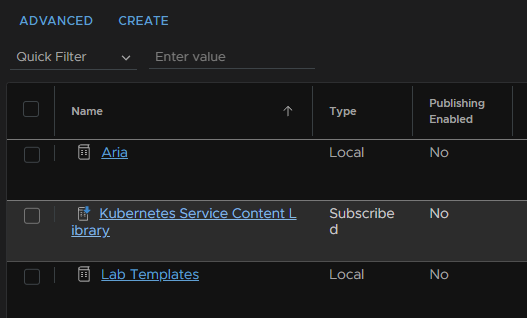

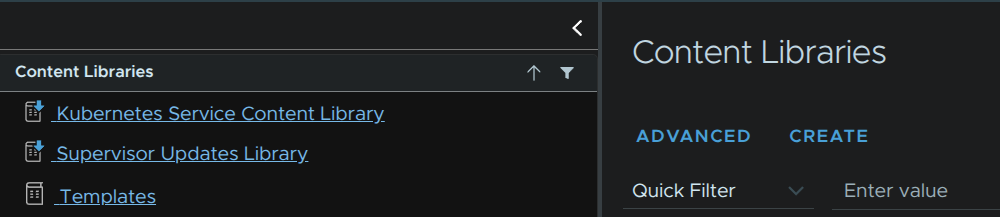

Click the three lines in the top left of vSphere and click Content Libraries

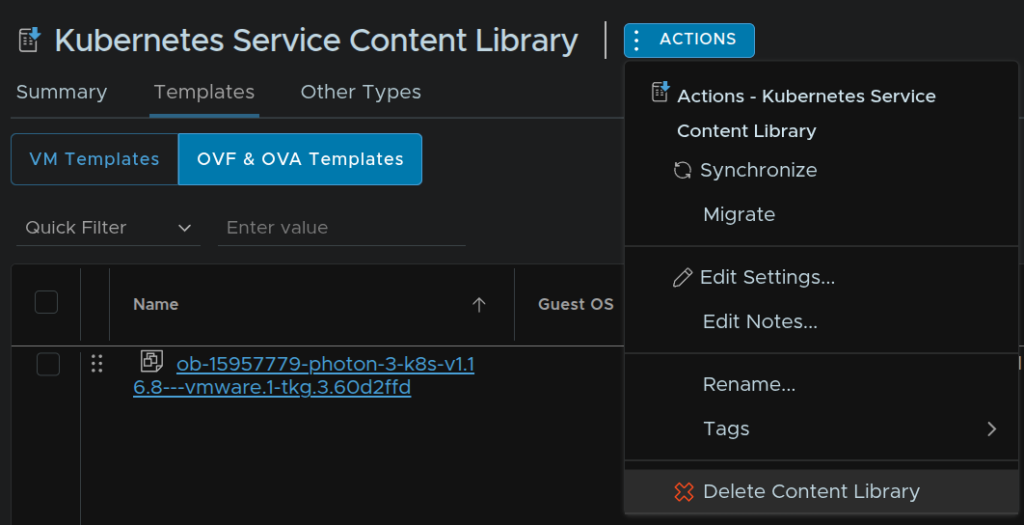

Click into the Kubernetes Service Content Library

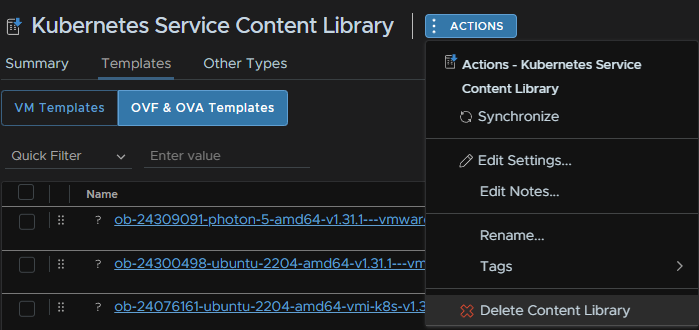

Then click Delete from Library

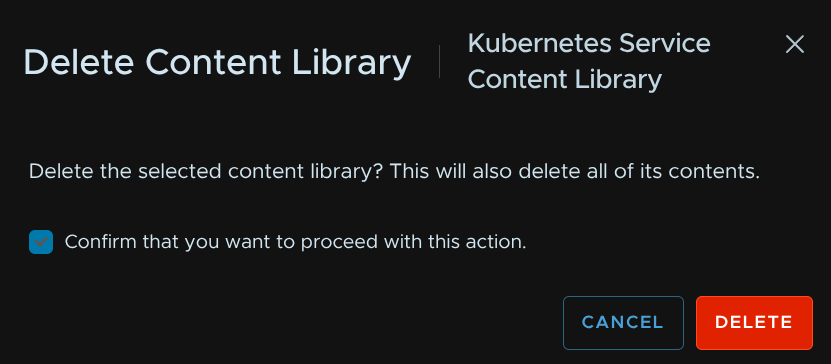

Check the box to confirm and click Delete

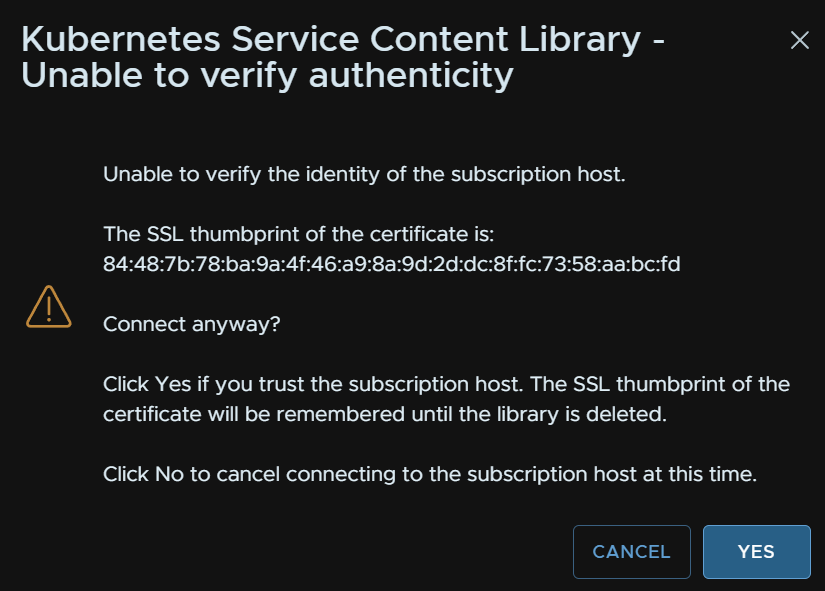

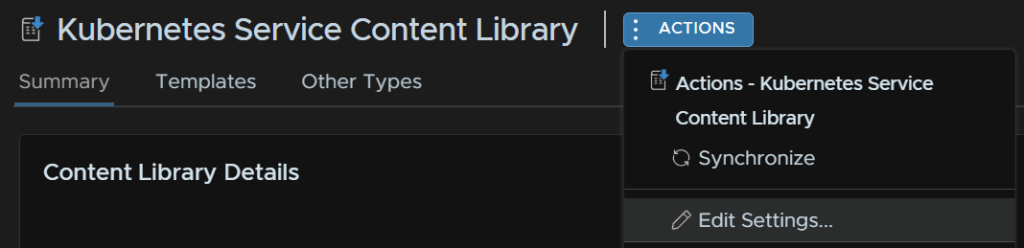

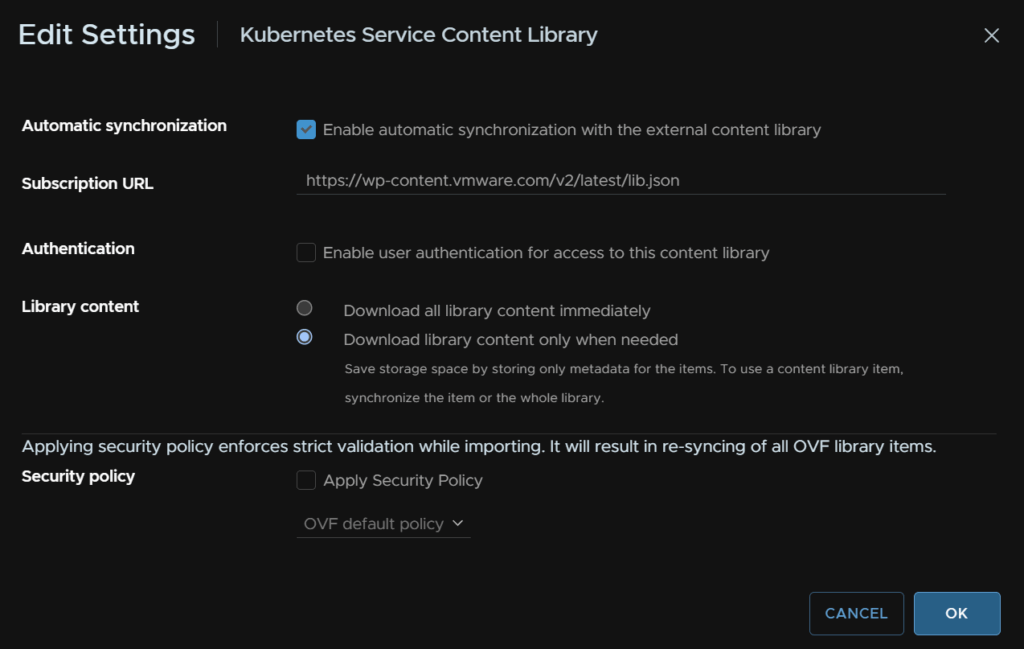

If you ever need to put the old content library back, you can create a subscribed one with the same name, ensuring you dont select the option to download content immediately, and use this link for the URL

https://wp-content.vmware.com/v2/latest/lib.json

We’ll need the IP of the API service, to get this, in vSphere click the three lines in the top left and click Supervisor Management

Click the Supervisors tab and click our Supervisor, in my case, Rigel

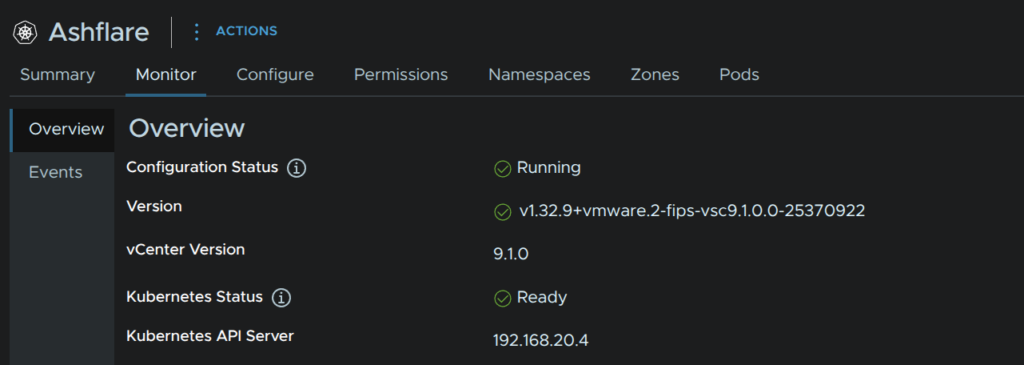

Click Monitor/Overview, here we can see the API server, you may want to bind an FQDN to this which I will be doing, this must be the FQDN supplied during the deployment of the Supervisor if you filled in an FQDN

We need to install the VCF CLI, on Ubuntu we can do this by running the following

sudo apt update
sudo apt install -y ca-certificates curl gpg
sudo mkdir -p /etc/apt/keyrings
sudo curl -fsSL https://packages.broadcom.com/artifactory/vcfcli-debian/tools/keys/BROADCOM-PACKAGING-GPG-RSA-KEY.pub; curl -fsSL https://packages.broadcom.com/artifactory/api/security/keypair/PackagesKey/public | sudo gpg --dearmor -o /etc/apt/keyrings/vcf-archive-keyring.gpg
sudo echo "deb [signed-by=/etc/apt/keyrings/vcf-archive-keyring.gpg] https://packages.broadcom.com/artifactory/vcfcli-debian noble main"| sudo tee /etc/apt/sources.list.d/vcf.list
sudo apt update
sudo apt install -y vcf-cli

For other other operating systems there is more info here

If we now run

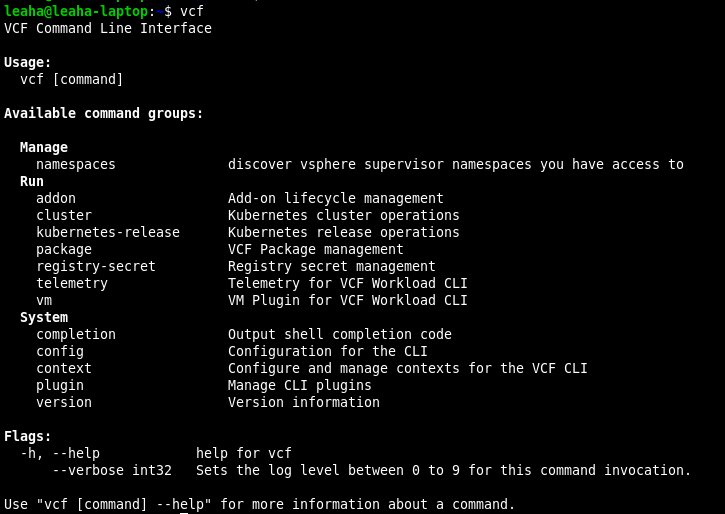

vcf

We can see thats working

Lets login to our supervisor with

vcf context create --endpoint <supervisor-api> --username <vsphere-username> --type k8s --insecure-skip-tls-verify

I ran the following

vcf context create --endpoint ashflare.leaha.co.uk --username [email protected] --insecure-skip-tls-verify --type k8s

You may see plugins get refreshed/updates/installed, this is expected
Give the context a name, this does need to be unique, but this is also just a name, I used the same as my Supervisor, you can use what ever you like

Provide your vSphere account password and you will be logged in and you can see the contexts you have access to

If you need to check again, you can run

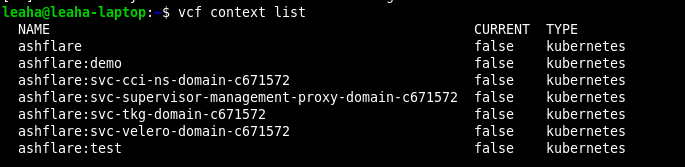

vcf context list

Lets create a folder in our documents, or where ever you like, for k8s files

mkdir ~/k8s

The lets hop into it with

cd ~/k8s

Now, we can access our vSphere namespace, mine was k8s-blog-demo, with

vcf context use <context-name>:<namespace>

For me, I ran

vcf context use ashflare:test

This may install plugins if needed

Now we have our namespace selected we need kubectl commands, which the VCF CLI doesnt have by default
We can install this manually for your operating system, but I’ll walk you through Ubuntu/Debian based systems
Information for all operating systems can be found here

We can do this in a single line with snap by running

sudo snap install kubectl --classic

We can now see our contexts using kubectl with

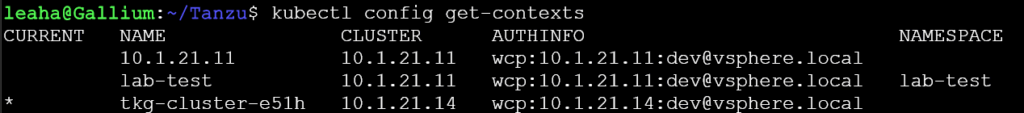

kubectl config get-contexts

Now all we have is the vSphere namespace, this doesnt show us our actual clusters, and there is a reason I started here

This is because with VKS in vSphere we have two main options for deploying pods, the first is a little more classic, we can deploy them in our VKS cluster like you expect, the other, is directly in the vSphere namespace in vSphere pods, this requires NSX networking, and here, our ESX hosts function as the worker nodes, so no VKS cluster is required, however, backing up PVCs isnt really possible

In addition to this, VKS clusters are deployed into the vSphere namespace, so if you want to instead manage your VKS cluster with kubectl and yaml files, you can do this here too

If you get logged out and the token expires, you can run the following to re authenticate

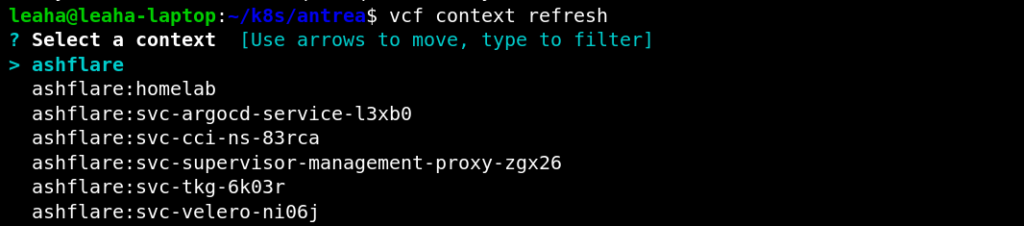

vcf context refresh

Then use the selector to select the context, this scrolls down

It seems that the addon is required with VKS 3.4 or higher, and with VKR 1.34 or higher

The plugin is needed for VKR 1.33 or lower, VKS 3.6 doesnt seem to change this

After some testing on VKS 3.6 and VKR 1.35 the addon works as expected, but with VKS 3.6 on VKR 1.33 the addon didnt work and the plugin was required

I have not tested how this works when running a VKS 1.33 cluster with the plugin, and upgrading VKR to 1.35 and how that works with probably migrating to the Addon, given the addon is an addon and they follow a desired state it should be able to be applied post upgrade and it will be reconsiled into the cluster

apiVersion: addons.kubernetes.vmware.com/v1alpha1
kind: AddonConfig
metadata:
  name: <vks-cluster-name>-antrea # Addon name, should be <k8s-cluster>-antrea
  namespace: <vsphere-namespace> # vSphere namespace containing the VKS cluster
  annotations:
    clusteraddon.addons.kubernetes.vmware.com/owned-for-deletion: "true" # Ensures when the VKS cluster is removed, this config is also cleaned up
spec:
  values:
    antreaNSX:
      enable: true # Enables the Antrea NSX Adapter

apiVersion: addons.kubernetes.vmware.com/v1alpha1
kind: AddonConfig
metadata:
  name: neodymium-antrea # Addon name, should be <k8s-cluster>-antrea
  namespace: homelab # vSphere namespace containing the VKS cluster
  annotations:
    clusteraddon.addons.kubernetes.vmware.com/owned-for-deletion: "true" # Ensures when the VKS cluster is removed, this config is also cleaned up
spec:
  values:
    antreaNSX:
      enable: true # Enables the Antrea NSX Adapter

kubectl config use-context ashflare:homelab

kubectl apply -f antrea-neodymium.yaml

apiVersion: cni.tanzu.vmware.com/v1alpha1
kind: AntreaConfig
metadata:
 name: <vks-cluster-name>-antrea-package # Addon name, should be <k8s-cluster>-antrea-package
 namespace: <vsphere-namespace> # vSphere namespace containing the VKS cluster
spec:
  antrea:
    config:
      featureGates:
        AntreaTraceflow: true # Facilitates network troubleshooting and visibility (Optional)
        AntreaPolicy: true # Enables advanced policy capabilities in Antrea (Required)
        NetworkPolicyStats: true # Provides visibility into the enforcement of network policies (Optional)
  antreaNSX:
    enable: true # This is the Antrea-NSX adapter which is disabled by default

apiVersion: cni.tanzu.vmware.com/v1alpha1
kind: AntreaConfig
metadata:
 name: neodymium-antrea-package # Addon name, should be <k8s-cluster>-antrea-package
 namespace: homelab # vSphere namespace containing the VKS cluster
spec:
  antrea:
    config:
      featureGates:
        AntreaTraceflow: true # Facilitates network troubleshooting and visibility (Optional)
        AntreaPolicy: true # Enables advanced policy capabilities in Antrea (Required)
        NetworkPolicyStats: true # Provides visibility into the enforcement of network policies (Optional)
  antreaNSX:
    enable: true # This is the Antrea-NSX adapter which is disabled by default

kubectl config use-context ashflare:homelab

kubectl apply -f antrea-neydymium.yaml

To create the VKS cluster, in vSphere click the three lines in the top left and click Supervisor Management

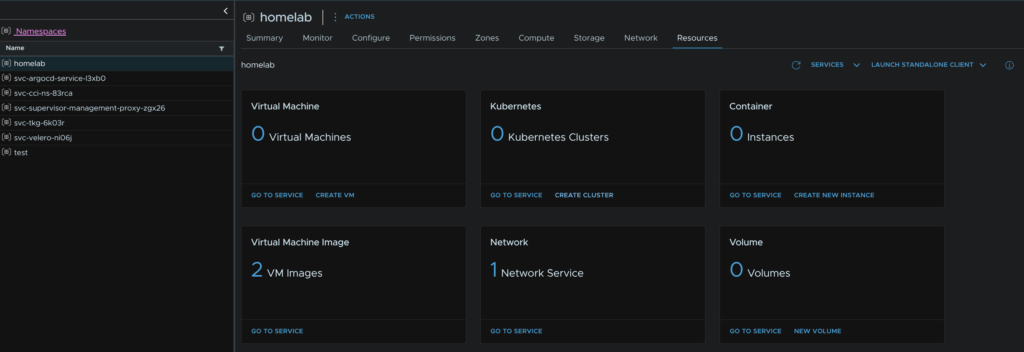

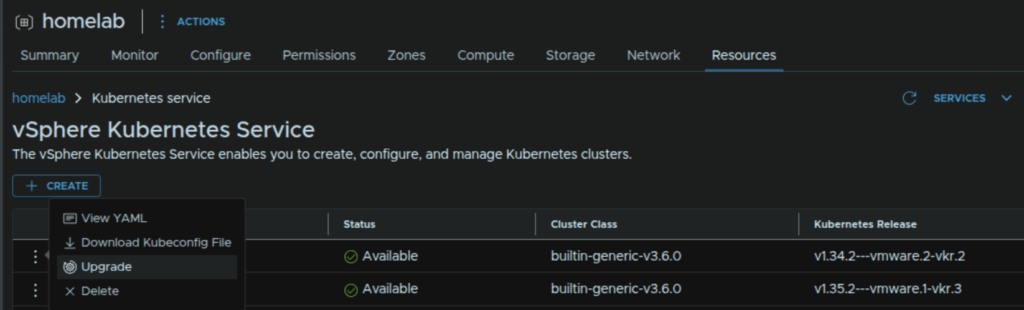

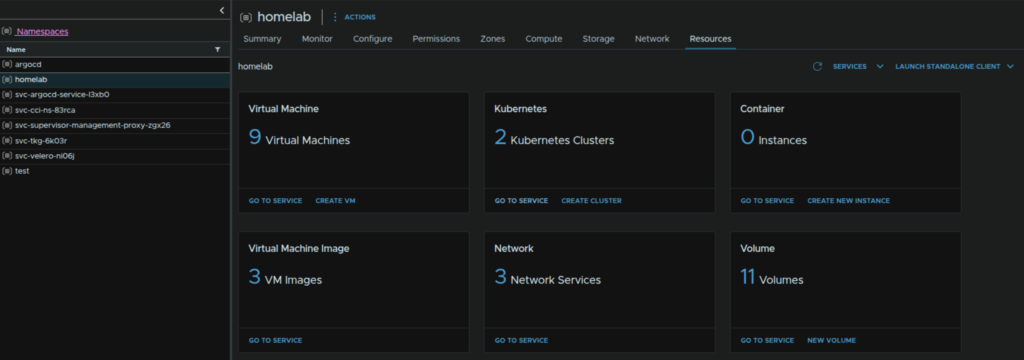

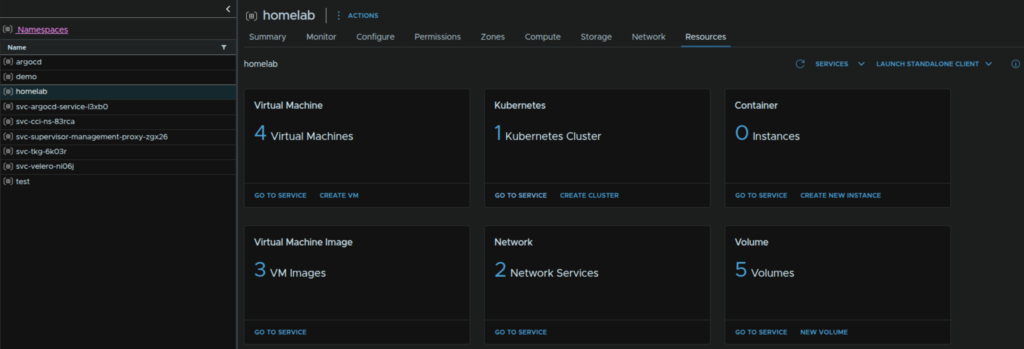

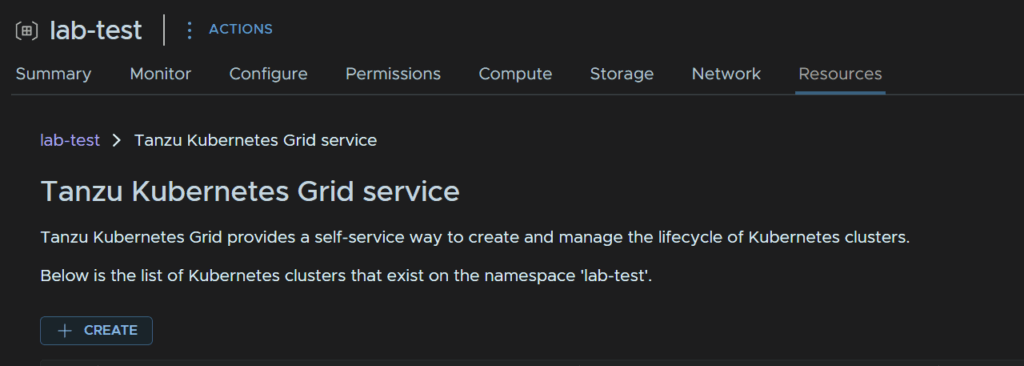

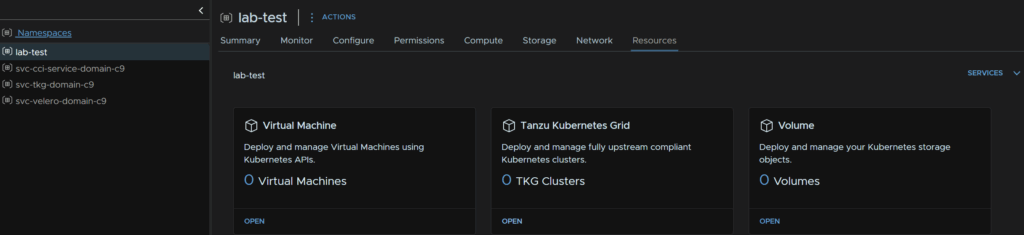

Select your namespace, and click Resources then Create Cluster on the Kubernetes widget

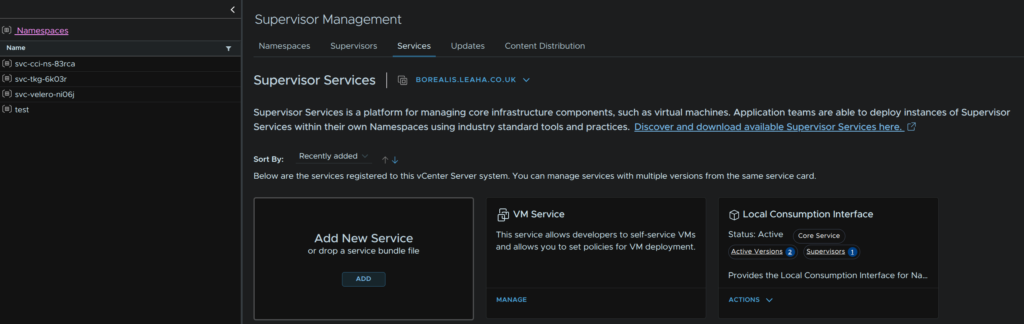

This requires the local consumption interface service, which we covered in the deployment guides

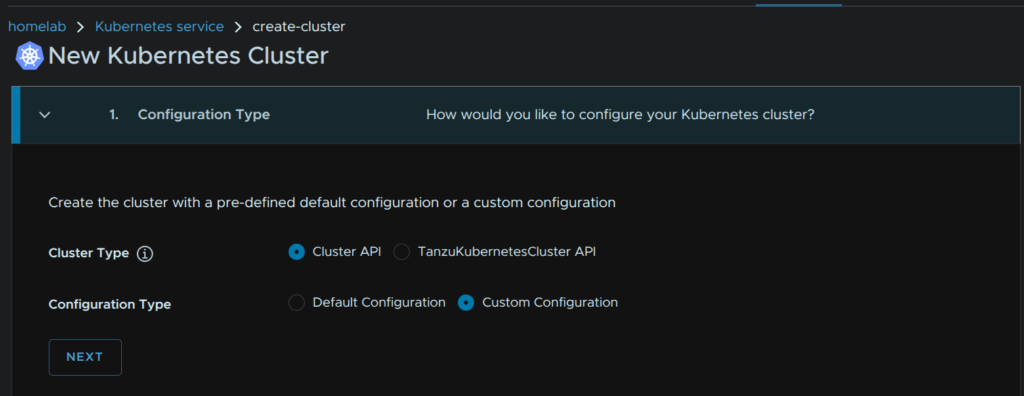

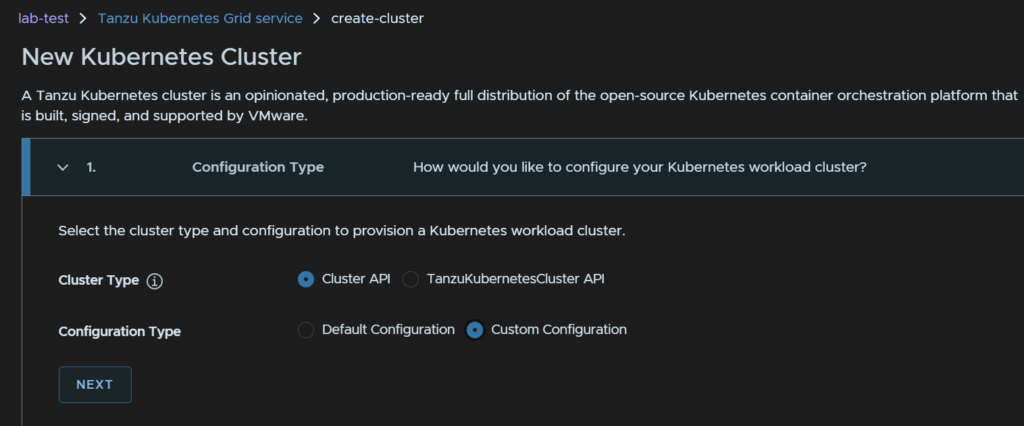

Click Custom Config and then click Next

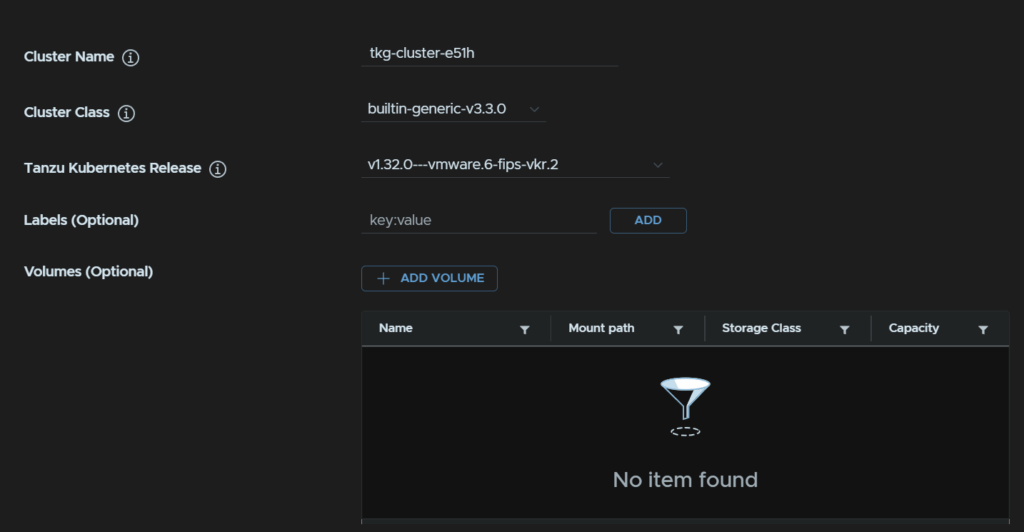

Give it a name that matches the addon yaml, select your K8S release version, and ensure the cluster class is 3.6 or higher

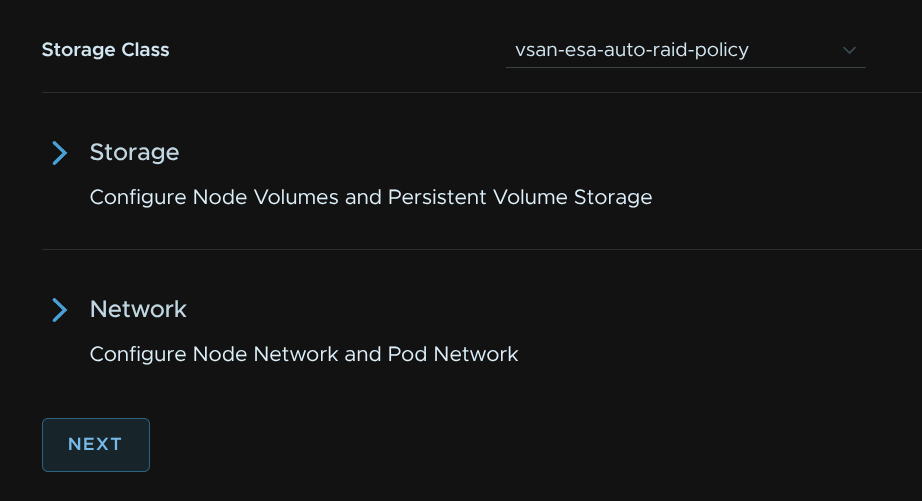

Scroll all the way to the bottom and click Next

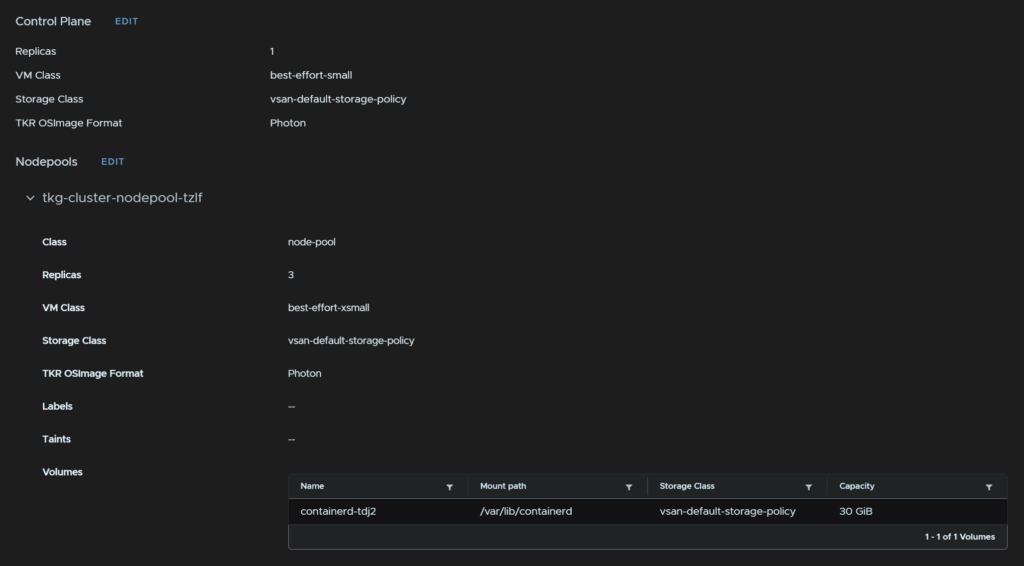

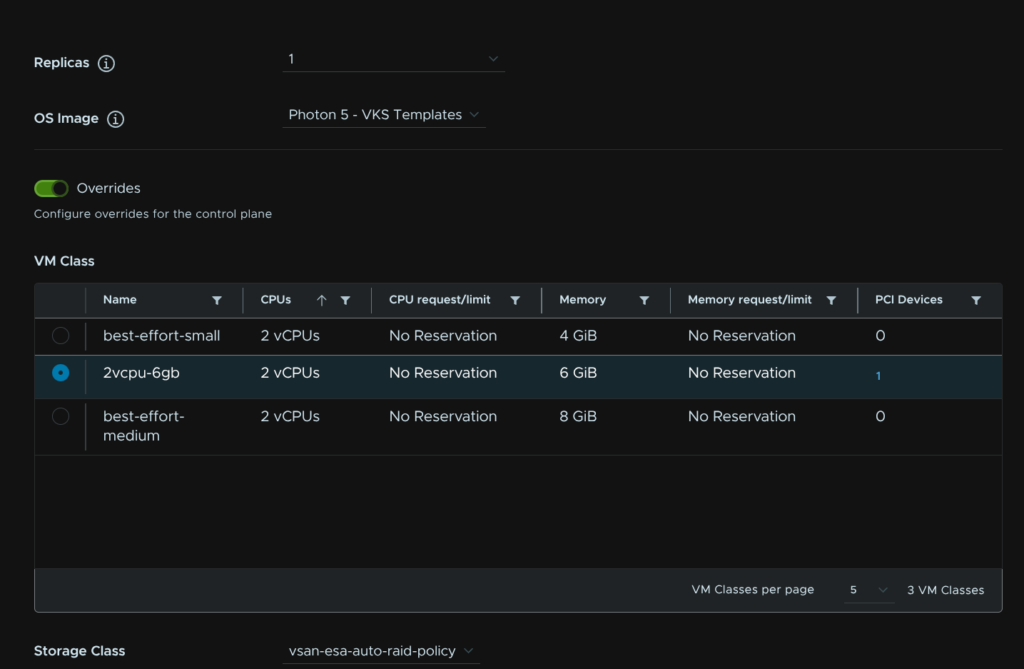

For our control plane, select the number of repliacs, you ideally want three for production workloads, then select the VM Class, Storage Class, and OS Image, I recommend the Photon image as it uses less disk space, then enable the Overrides toggle, optionally you can specify a size just for the control plane VMs

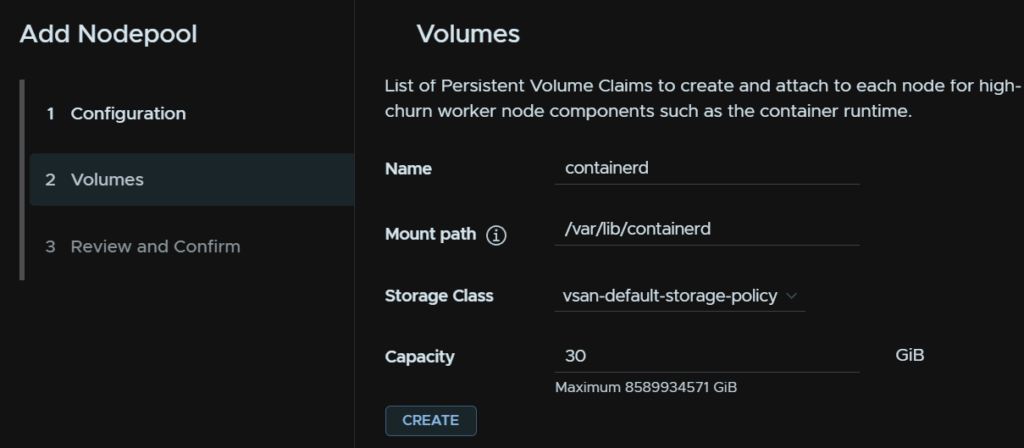

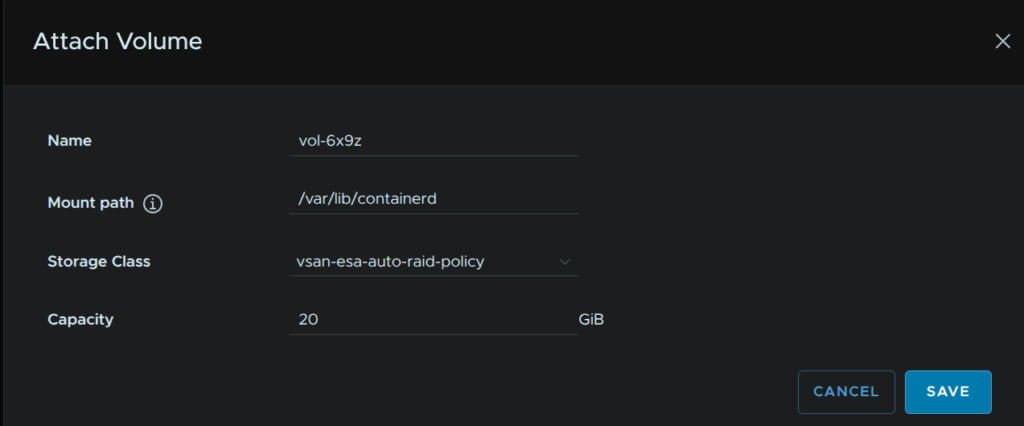

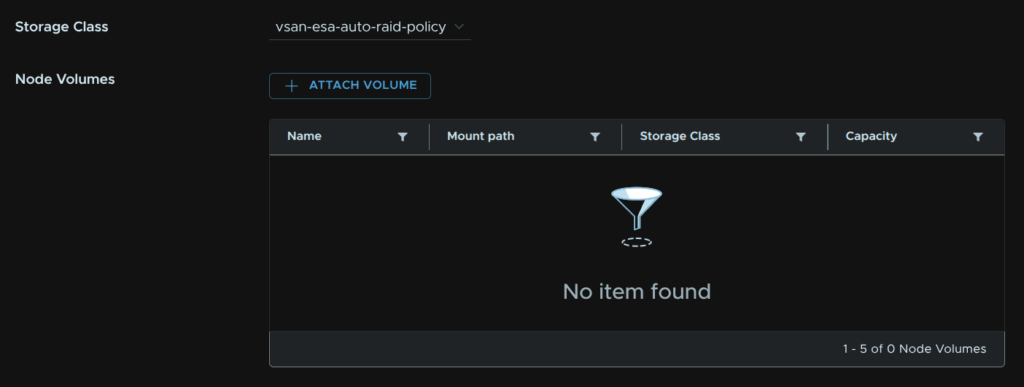

Click click Attach Volume

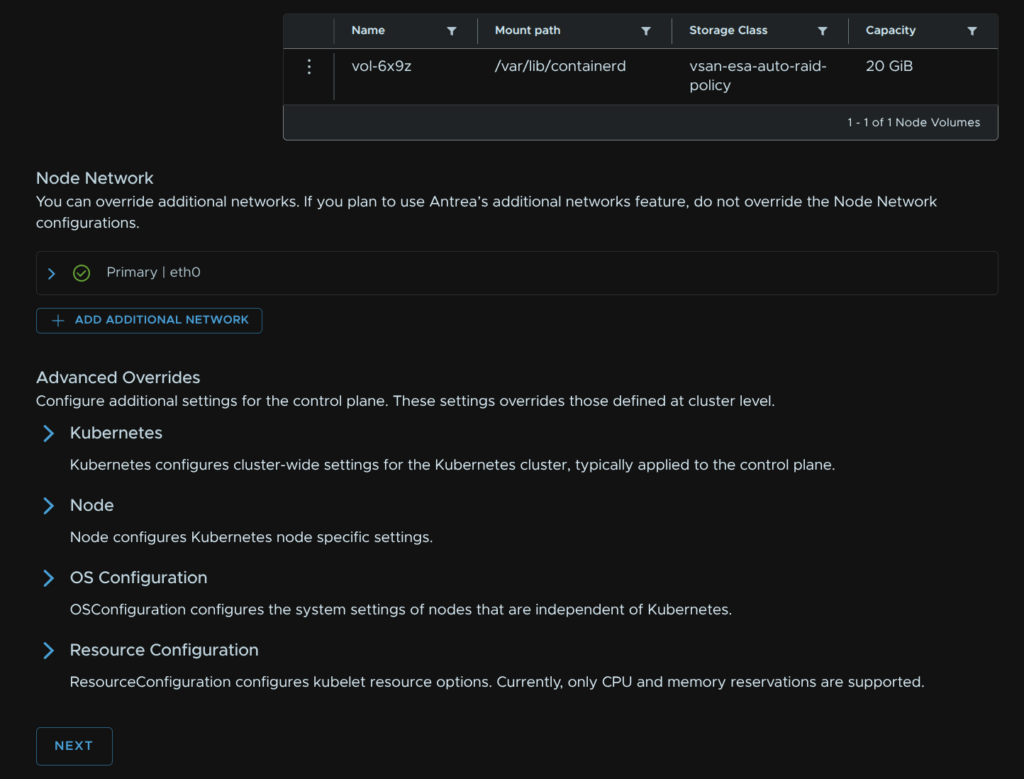

Leave the config on default, if you have a particularly large cluster you may need more than 20GB, then click Save

Scroll down to the bottom and click Next

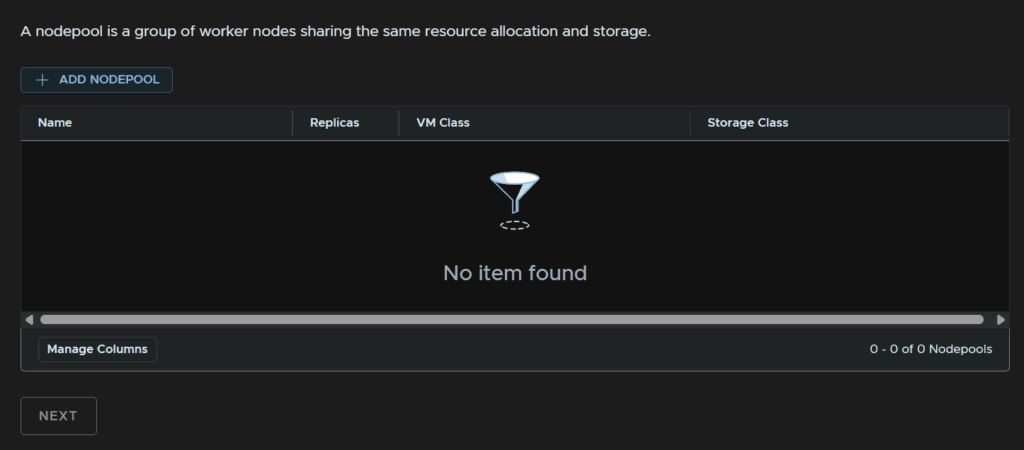

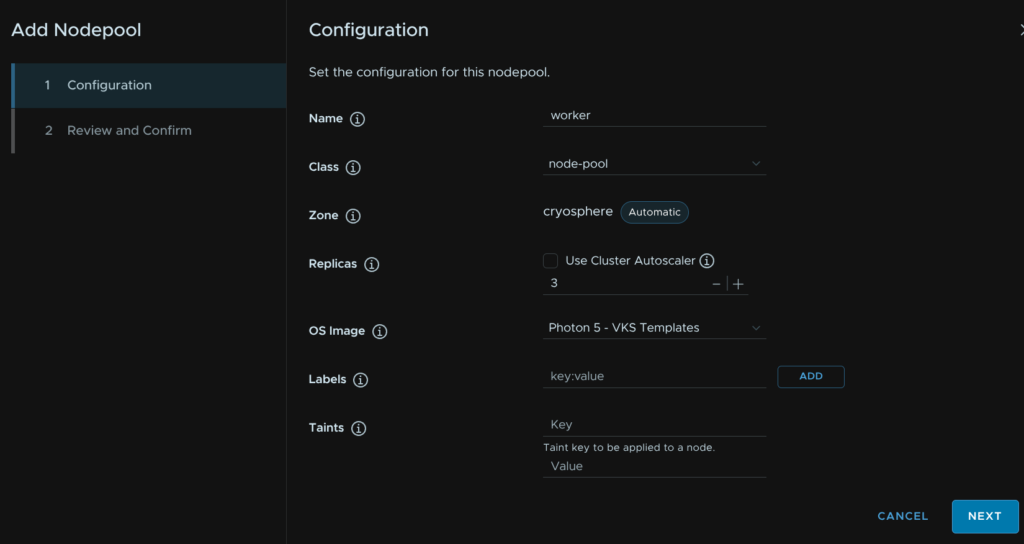

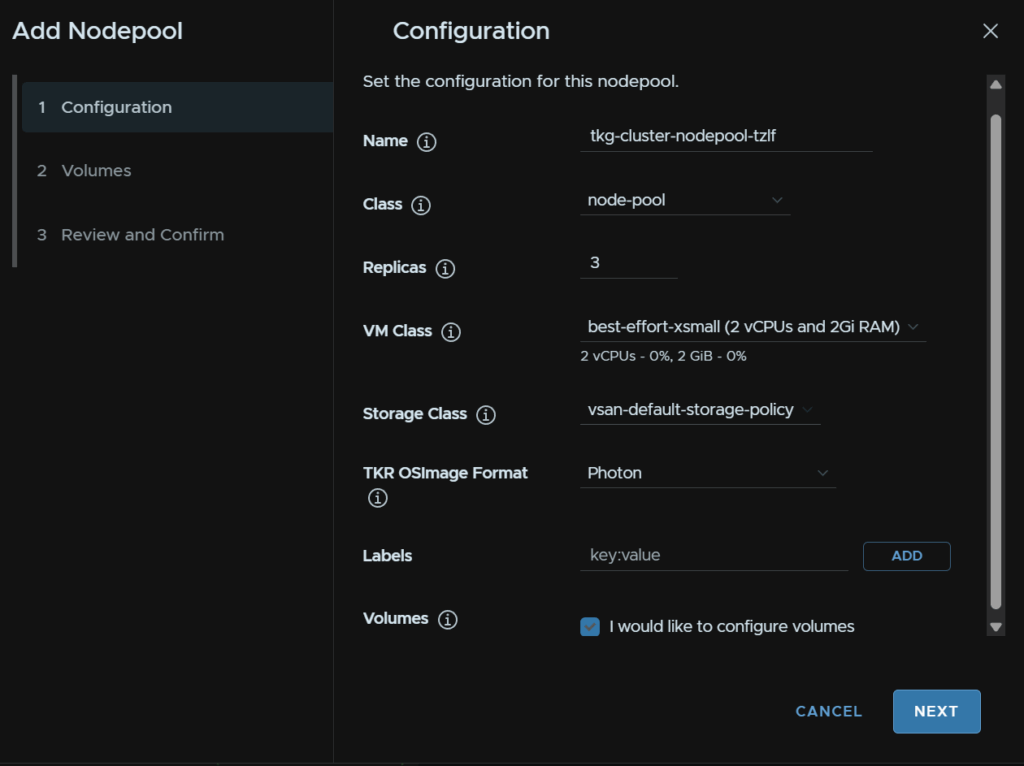

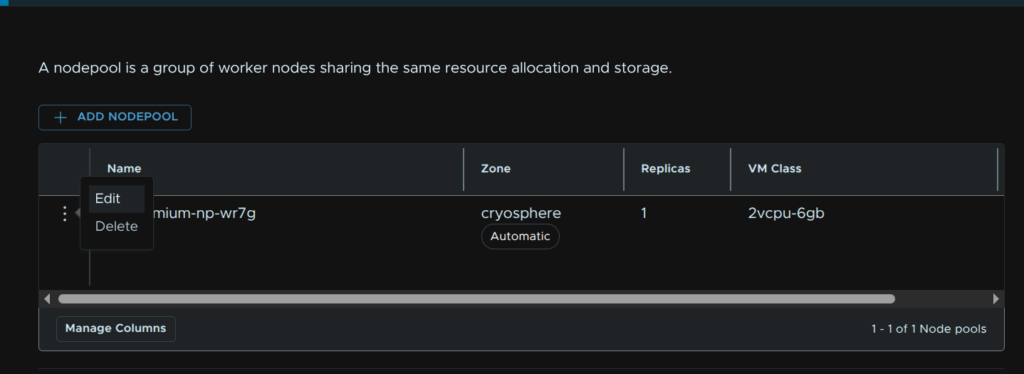

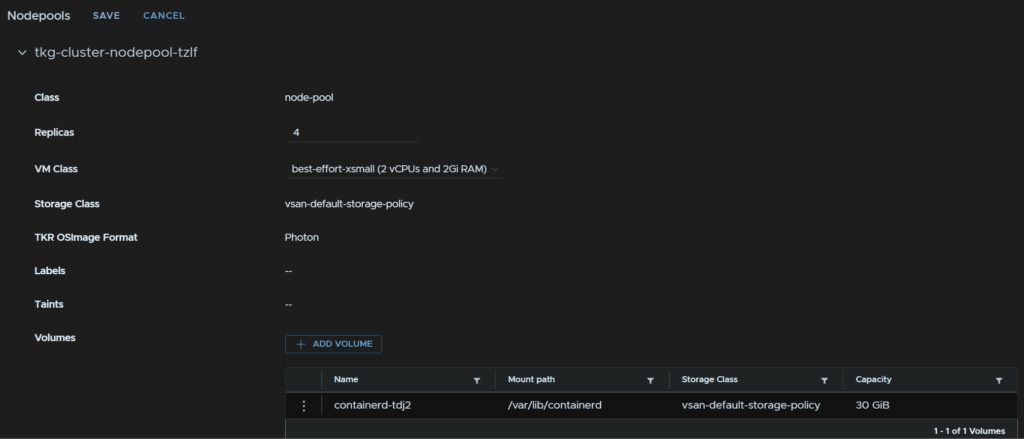

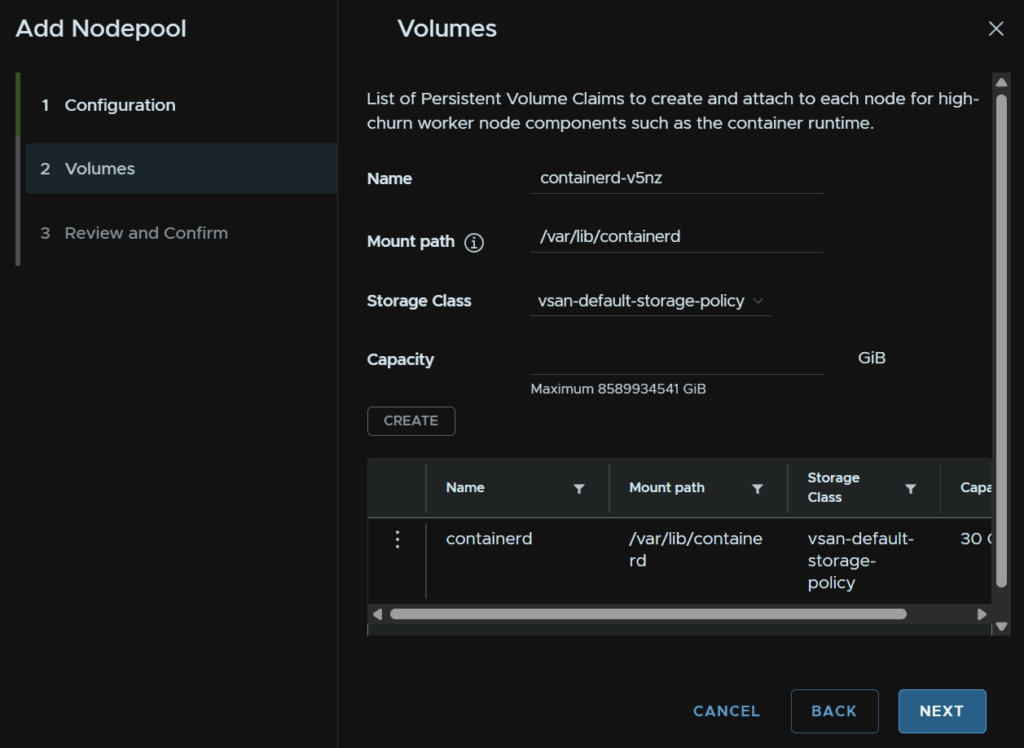

Click the three dots and click Edit for the node pool

By default the nodepool name is <k8s-cluster-name>-np-<some-string>, Id recommend removing the K8S cluster name here, as it will be at the start of the node pool VMs anyway, and it makes the names very long and repetitive

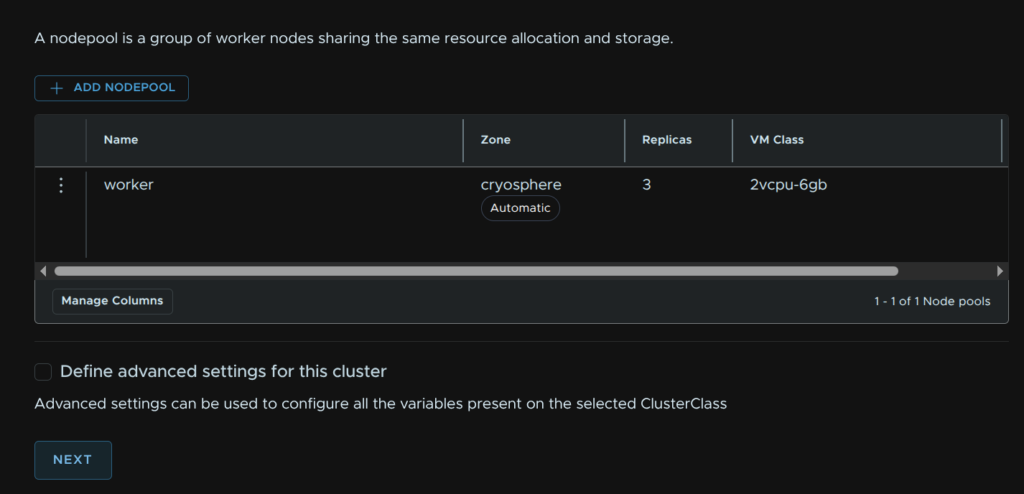

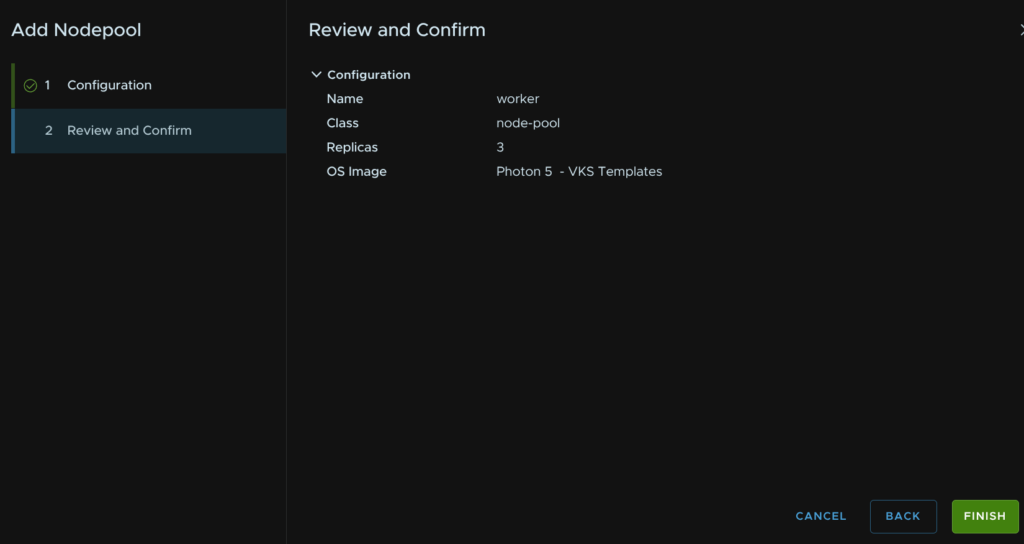

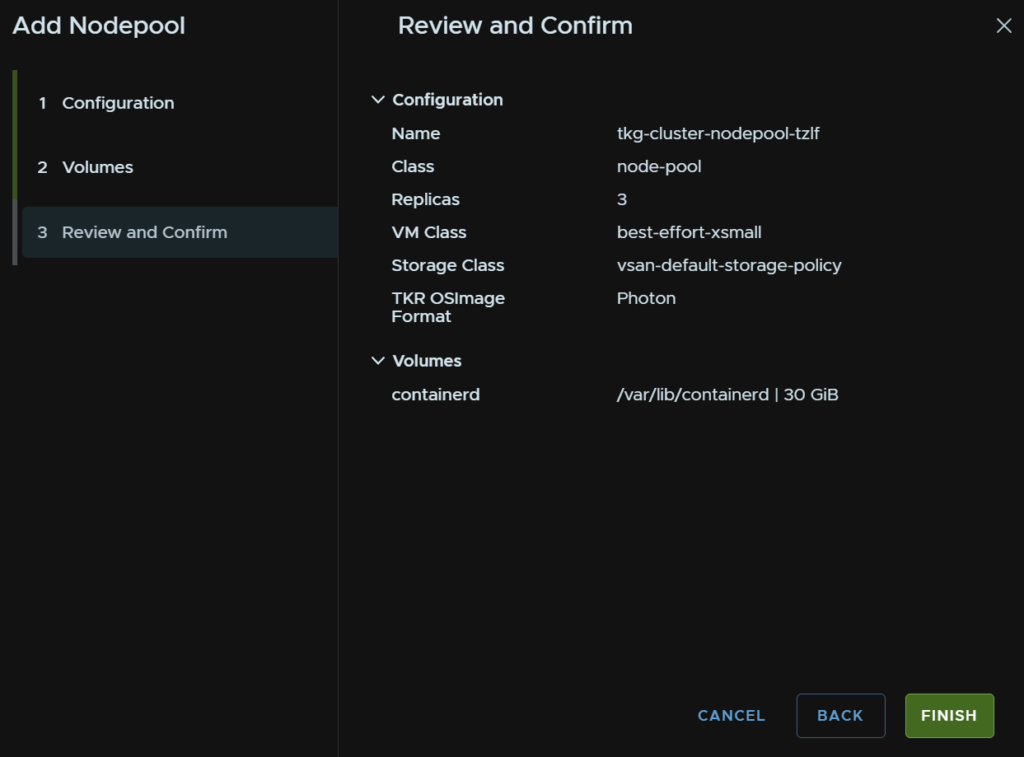

I ended up calling it worker, set your number of replicas, you can also use the auto scaler if needed with a min and max node count, this can be scaled later, the VM Class, Storage Class, and OS Image, optionally you can check the box to add labels if needed, then click Next
There is an option for overrides at the bottom but we generally wont need them

Then click Finish

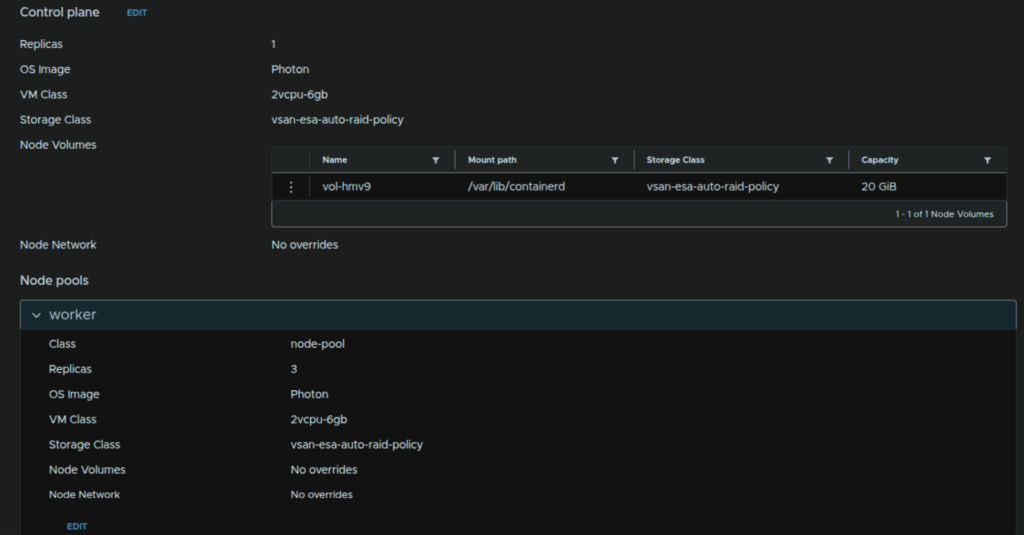

Then click Next

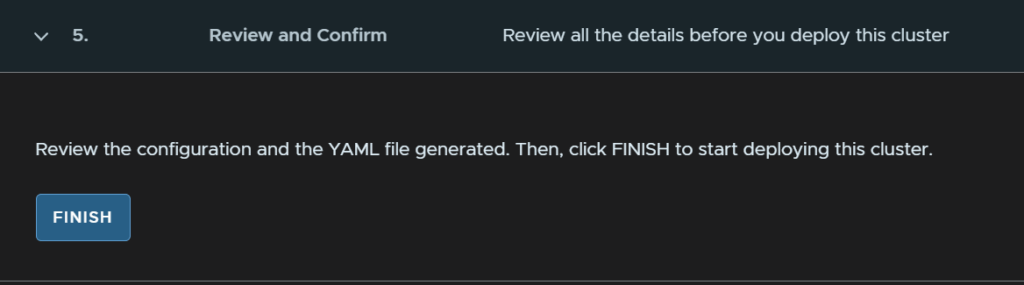

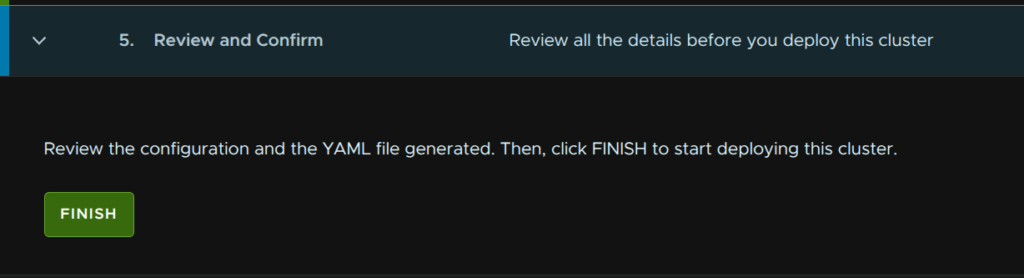

And click Finish

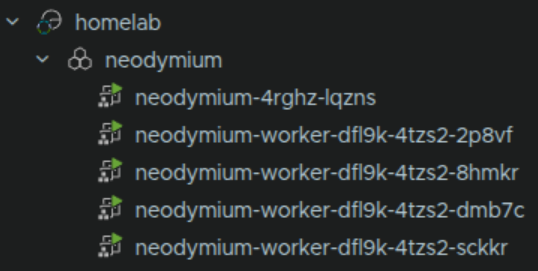

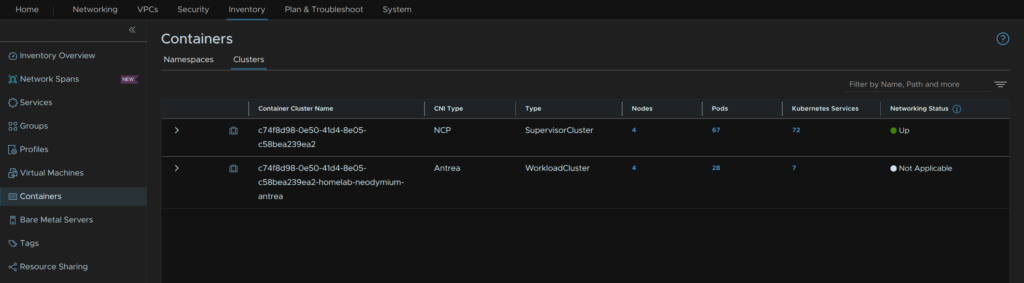

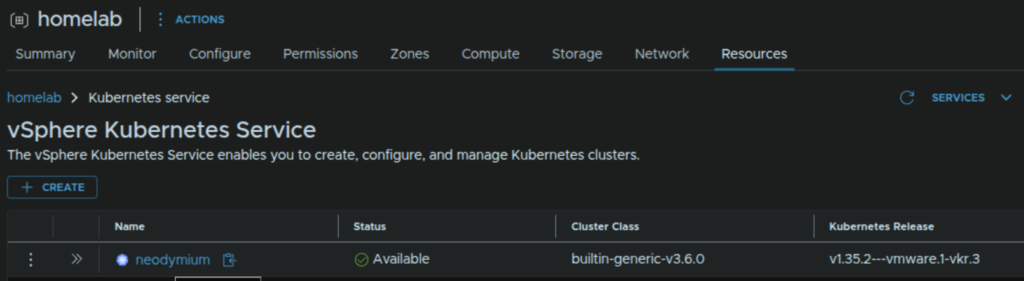

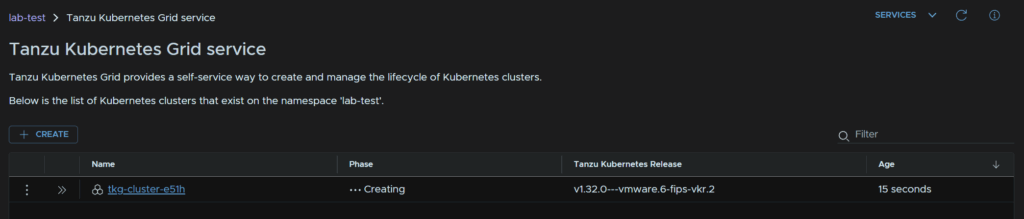

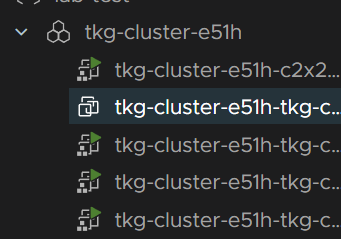

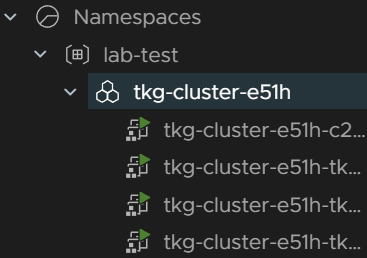

Once thats deployed, if we have this setup with the Andrea addon, in the NSX inventory, we will see the cluster under Inventory/Containers/Clusters

If we now want to access our K8S cluster, we can create a new context, my cluster I deployed earlier was called k8s-blog-01 in the namespace k8s-blog-demo

Our context file would be

vcf context create --endpoint <supervisor-api> --workload-cluster-name <k8s-cluster> --workload-cluster-namespace <vpshere-namespace> --username <vsphere-username> --insecure-skip-tls-verify

So for me, I ran

vcf context create --endpoint ashflare.leaha.co.uk --workload-cluster-name neodymium --workload-cluster-namespace homelab --username [email protected] --insecure-skip-tls-verify

Give the context a name, I suggest the K8S cluster name, and provide your login password

We can see all our contexts, like before, with

vcf context list

And we can do the same in kubectl with

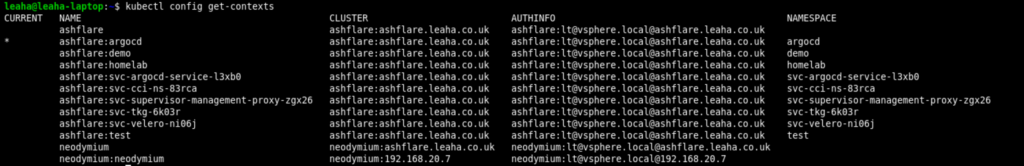

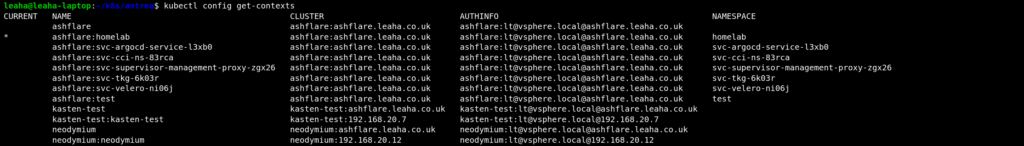

kubectl config get-contexts

If I want to switch to my K8S cluster to deploy some applications, I can run

kubectl config use-context <context-name>:<cluster>

I ran

kubectl config use-context neodymium:neodymium

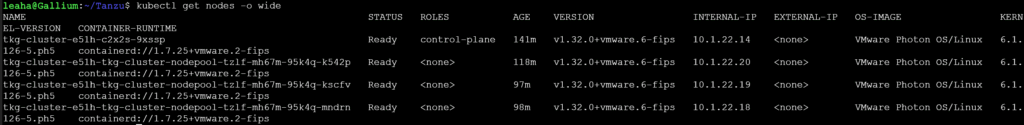

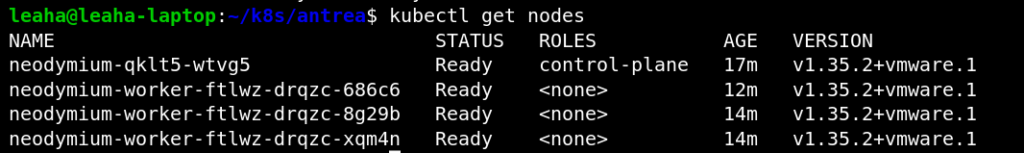

We can also see our nodes with

kubectl get nodes

Now we can access our vSphere namespaces and K8S clusters using the kubectl commands like any other platform

If you get logged out and the token expires, you can run the following to re authenticate

vcf context refresh --insecure-skip-tls-verify

Then use the selector to select the context, this scrolls down, you’ll notice my VKS cluster is missing

If at any point you want to check the resource usage on your nodes, run

kubectl top nodes

Which will look like this

We can also do this for all pods with

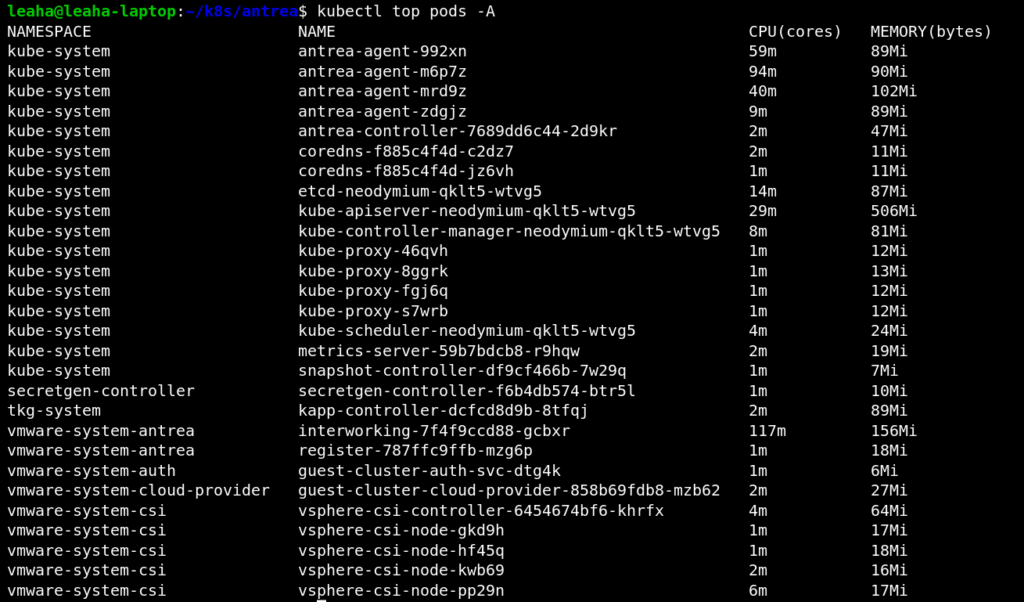

kubectl top pods -A

We could also filter per namespace with

kubectl top pods -n <namespace>

Various K8S workloads may require Helm to be installed so it can be used to deploy workloads onto clusters

Helm functions like a package manager, similar to apt in Ubuntu, but for apps in K8S, and significantly simplifies the installation of ones that suport it

Helm needs to be installed on whatever device you are connecting to a VKS/K8S cluster with, not the cluster its self

For me, this is my Ubuntu based laptop

First lets install the prerequisites

sudo apt install curl gpg apt-transport-https --yes

Then add the GPG key for the Helm repo with

curl -fsSL https://packages.buildkite.com/helm-linux/helm-debian/gpgkey | gpg --dearmor | sudo tee /usr/share/keyrings/helm.gpg > /dev/null

Now add the Helm apt repo with

echo "deb [signed-by=/usr/share/keyrings/helm.gpg] https://packages.buildkite.com/helm-linux/helm-debian/any/ any main" | sudo tee /etc/apt/sources.list.d/helm-stable-debian.list

Now we can update apt with

sudo apt update

And install Helm with

sudo apt install helm

We can check its installed by verifying the version with

helm version

Which shows something like this

Click on the three lines in vSphere in the top left and click Supervisor Management

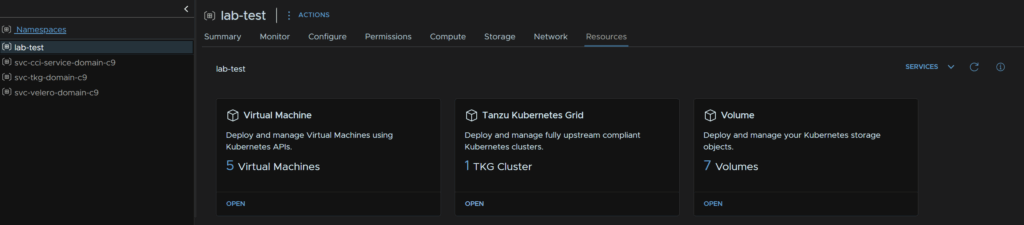

Select your namespace and click Resources, then on the Kubernetes widget click Go To Service

Click the cluster

We can click Edit to change the control plane, which you likely wont need to change, we can then expand the node pools and click Edit on ours

We can change the replicas and the VM class, lets set the replica count to 4 and click Save
Changing the VM class will resize the cluster

After a few mins the cluster should have an extra worker node added
We can see thats being deployed now

When the vSphere Kubernetes Services has been updated new K8S updates may be available to your clusters, or they may have been deployed on an older version and need upgrading

To do this, in vSphere, click the three lines in the top left and click Supervisor Management

Select the namespace which has clusters you want to upgrade, then click Resources and on the Kubernetes widget click Go To Service

On the cluster, click the three dots, then click Upgrade

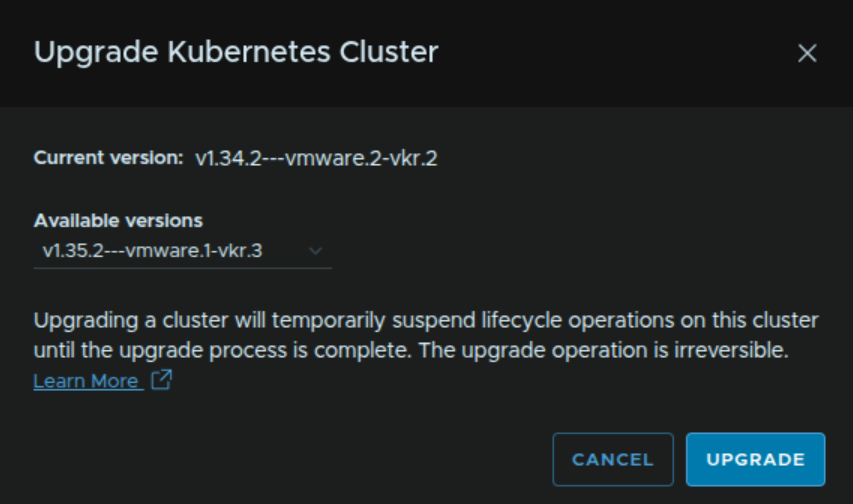

Select the target release from the drop down and click Upgrade
You’ll need the release adding to your content library if youre using an offline one like I am, otherwise it wont show up here

We can see the status from the information popup on the status tab

Before we can start deploying K8S clusters we need a namespace to put them in, in vSphere click the three lines in the top left and click workload Management

Then click New Namespace

Select the supervisor and give it a name, it must be DNS compliant, so no capitals for example, and select the network, we will be using our workload network, then click Create
If you had NSX networks the Network option isnt needed

In our new namespace, on the permissions widget, click Add permissions

Select the identity source, this will want to be vsphere.local, search for the user, I am giving my dev user permissions here, and select the role, they will be the owner, then click ok

Under the storage Widget, click Add Storage

Select a storage policy, I am using the vSAN default policy here and click ok

This is the storage policy your user wants to be using when creating Physical Volume Claims on a K8S cluster
It can be checked within the K8S CLI later with
kubectl get storageclasses

It is also worth noting the user, in the case Dev, will need at least read rights to the vCenter, cluster and hosts
I have a custom role for users so they have read permissions to the those bits, so the UI will load properly, from there they can access Workload Management to manage their namespace and resources, they wont see any VMs in vSphere though

As an admin you can apply limits like any other resource groups to limit how much can be deployed

This can be done by clicking Edit on the Capacity And Usage widget

Next we need a VM class, else creating Kubernetes clusters isnt going to work

In our new namespace, on the VM Service widget, click Add VM Class

And select the VM class you’d like to be deployable in this namespace and click ok

We can use these sizes to define our K8S cluster when we deploy them

From our namespace, click Resources, then in the Tanzu Kubernetes Grid widget click Open

Now click Create

To start with, ensure the Cluster Type is set to Cluster API, TanzuKubernetesCluster API is deprecated, and select Custom Configuration, then click Next

Give the cluster a naming convention, I used the default, select the cluster class, I opted for the latest of 3.3.0, select the K8S release, I used the latest, you can add labels and volumes, for now we will leave these blank

Networking wise, use the default CNI of Antrea, add a pod CIDR, I am again using the default, this is internal to the cluster and should not overlap with the supervisor networks, as ours was 10.1.21.0/24 and 10.1.22.0/24, we are fine there, leave the services CIDR at the default, this also must not overlap with the workload network, and enter a service domain, the default is fine here, you can add persistent volumes, but I have left this blank
When you are done click Next

For the control plane, select a VM size, I am going to use the small image from what I added for VM classes, and enter the number of replicas, you can do one or three, one is fine in my lab, but production should be using three here, select a storage class, this will be what me added for storage earlier, then select the OS Image, I recommend Photon as they are significantly smaller on disk usage

We can also optionally add volumes, but I am skipping this, and then click Next

Next we need a node pool for the workloads to run on, click Add Nodepool

Enter a nodepool name, I used the default, the class should be node-pool, enter the number of replicas, this can be 1-16, select the VM size, the drop down reflects the VM classes we added earlier again, select the storage class, OS Image, again, I recommend Photon, and you can add volume claims, check this box and click Next

The size of the volume you add here can vary on how much you are throwing into the cluster, but 30-60GB is a good range, I am using 30GB
Leave everything on default, set the capacity and click Create

Then click Next

Then click Finish

You can add more if needed, when you have your worker pools click Next

On the right we can see the YAML for our cluster deployment, which we can edit and download if needed

We can then click Finish

The system will the download the files and create the cluster

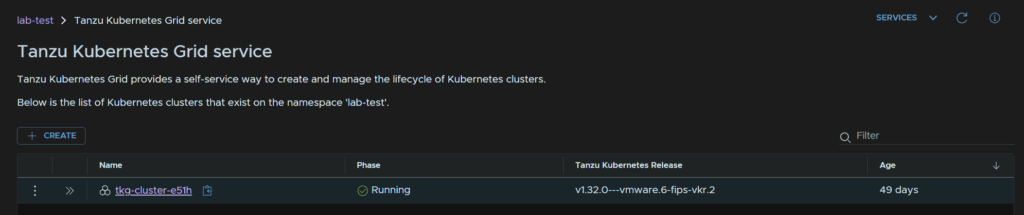

In the vSphere inventory we can see the cluster shows up in the vSphere Namespaces resource pool, and the worker/control plane nodes will get added as they are deployed

I did notice this error kept cropping up preventing the VMs from being deployed
Failed to deploy OVF package. Cause: The operation is not allowed in the current state. Cannot instantiate library item 42132d29-c31a-47b8-a84a-9e0ca0b0f98a due to the failure of importing file photon-ova-disk1.vmdk, detail error: Error exporting file photon-ova-disk1.vmdk. Reason: HTTP request error: cannot authenticate SSL certificate for host wp-content.vmware.com..

To fix this, click the three lines in vSphere and click Content Libraries

Select the Kubernetes Service Content Library

Click Actions/Edit Settings

Dont change anything and click ok

And accept the SSL certificate
I can only assume Broadcom changed the cert in between me setting the cluster up and deploying this K8S cluster

After a while the cluster will be deployed

First, you’ll need the CLI tools, these can be gotten from the namespace under Workload Management

Click your namespace and you’ll have a link to the CLI tools in the status widget

Make a note of the IP this URL is on, we’ll need this for connecting

Download the CLI Plugin tools for you OS, it supports Windows, Linux And Mac

If you have Linux with a GUI then you can download with the WebUI

For the CLI, head to your Downloads with cd ~/Downloads
And download it with

wget https://<ip-address>/wcp/plugin/linux-amd64/vsphere-plugin.zip --no-check-certificate

Where the <ip-address> is the IP you get from the vSphere UI
So for me this was

wget https://10.1.21.11/wcp/plugin/linux-amd64/vsphere-plugin.zip --no-check-certificate

Lets unzip it with

unzip ./vsphere-plugin.zip

And then lets move this to the /bin folder to execute kubectl and kubectl-vsphere directly with

sudo cp ./bin/kubectl-vsphere /bin
sudo cp ./bin/kubectl /bin

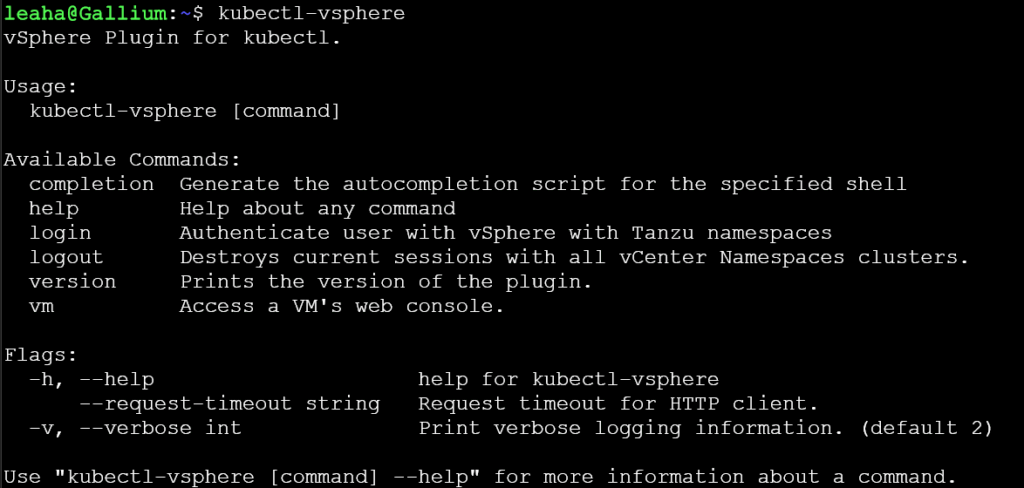

If we now run

kubectl-vsphere

We can see thats working

Lets login to our K8S cluster with

kubectl-vsphere login --insecure-skip-tls-verify --vsphere-username <sso-username> --server=<ip-address> --tanzu-kubernetes-cluster-namespace=<namespace> --tanzu-kubernetes-cluster-name=<clustername>

Where <sso-username> is your login, can be the admin or your own account you are using to access the service
And <ip-address> is that IP we got earlier where the kubctl package is
For me using my dev user this was

kubectl-vsphere login --insecure-skip-tls-verify --vsphere-username [email protected] --server=10.1.21.11 --tanzu-kubernetes-cluster-namespace=lab-test --tanzu-kubernetes-cluster-name=tkg-cluster-e51h

And input your password
It should look like this

You can see the namespaces you have access to with

kubectl config get-contexts

We can see all the namespaces we have access too, which is our lab-test namespace

Lets create a folder in our documents, or where ever you like, for Tanzu files

mkdir ~/Tanzu

The lets hop into it with

cd ~/Tanzu

We can also verify the nodes with

kubectl get nodes -o wide

This will focus on an Nginx K8S deployment YAML and how we can trouble shoot this if you have issues, in general, but also with the demos below

We can apply any YAML file with a deployment by running

kubectl apply -f <yaml-file>

Eg

kubectl apply -f nginx.yaml

This will apply that, create the pods and service if defined, so you can access your application

We can get our deployments in a cluster with

kubectl get deployments

An example output

We can get more info on this deployment with

kubectl describe deployment  <Deployment>

For our example output we can run

kubectl describe deployment nginx-deployment

If you get this error, type the command, as it doesnt work well with copy and paste
kubectl describe deployment nginx-deployment: command not found

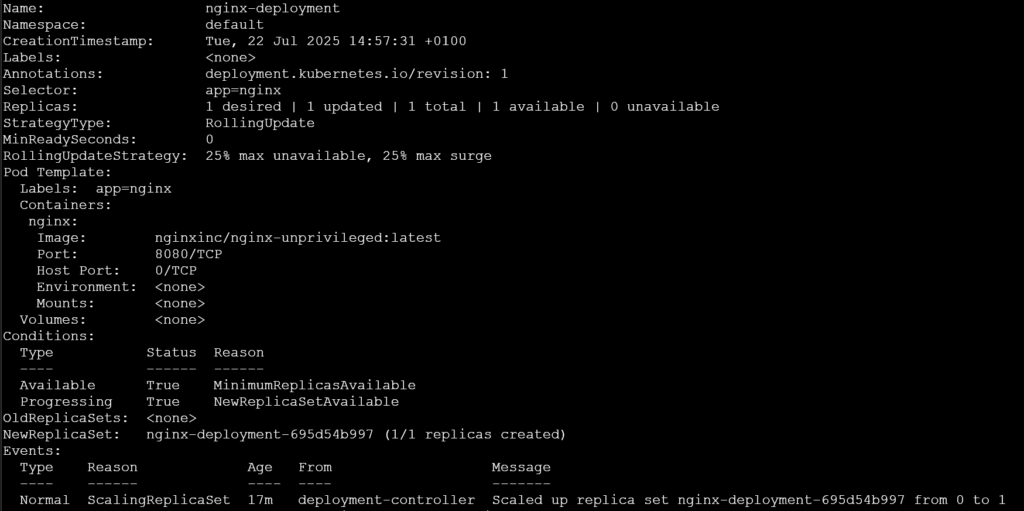

The output will look like this

The important bit here is the NewReplicaSet
nginx-deployment-695d54b997
This is the replica set

We can see what its doing, and any error with

kubectl describe rs <replica set>

For mine I ran

kubectl describe rs nginx-deployment-695d54b997

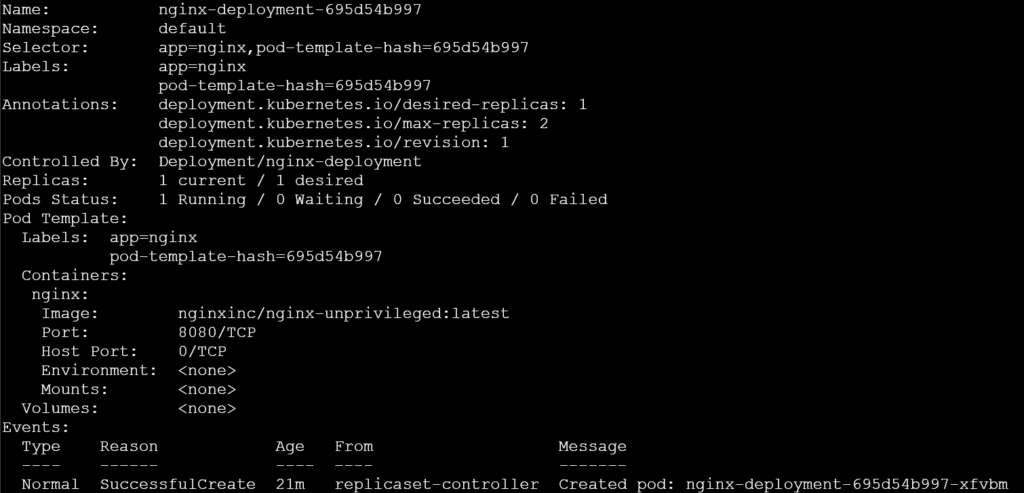

The output will look like this

An example error would be
Warning  FailedCreate  2m13s (x8 over 7m38s)  replicaset-controller  (combined from similar events): Error creating: pods “nginx-deployment-96b9d695-rn44x” is forbidden: violates PodSecurity “restricted:latest”: allowPrivilegeEscalation != false (container “nginx” must set securityContext.allowPrivilegeEscalation=false), unrestricted capabilities (container “nginx” must set securityContext.capabilities.drop=[“ALL”]), runAsNonRoot != true (pod or container “nginx” must set securityContext.runAsNonRoot=true), seccompProfile (pod or container “nginx” must set securityContext.seccompProfile.type to “RuntimeDefault” or “Localhost”)

This is caused by pods running as root, this isnt allowed with Pod Security Admission enabled, which is on by default in Tanzu

Now this might not have any issues in it, so we know the pod in the replica set is create so we can run

kubectl get pods

Which outputs this

We can get more info on the pod with

kubectl describe pod <pod>

For my example this is

kubectl describe pod nginx-deployment-695d54b997-xfvbm

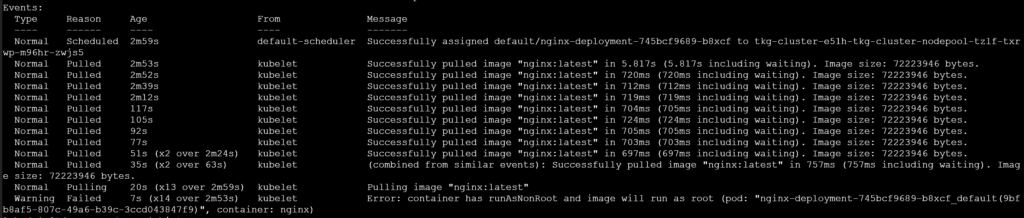

And we have an events section

An example of an issue caused by the default Nginx container requiring the image run as root, this helps you identify the issue quickly

To see how to access the container once its deployed we will need to see the service information, this name is defined in your deployment YAML or device YAML if you have it separately

kubectl get svc <Service-Name>

My service is called nginx-service, so I ran

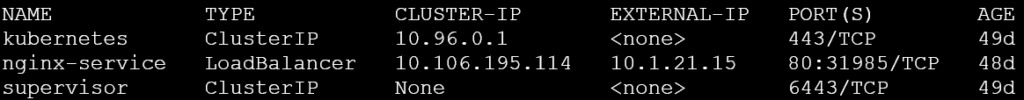

kubectl get svc nginx-service

Here we can see the external IP address, and from the deployment YAML I know that its port 80 to access this

Click on the three lines in vSphere in the top left and click Workload Management

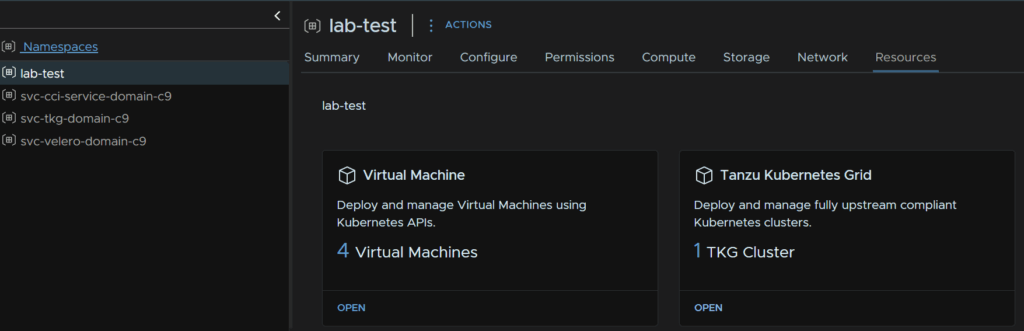

Select your namespace and click Resources, then on the Tanzu Kubernetes Grid widget click Open

Click the cluster

We can click Edit to change the control plane, which you likely wont need to change, and the node pool, lets click Edit on the node pool

We can change the replicas and the VM class, lets set the replica count to 4 and click Save

After a few mins the cluster should have an extra worker node added
We can see thats being deployed now

If youre like me and hate that after setting up the supervisor service, your template deployment, using content libraries is now very cluttered with Kubernetes templates, it looks a little like this

This is a nightmare to get to my old templates that were there as I need to search through everything

There is a way to deal with this by using a manual Kubernetes content library with a few images, as you likely dont need them all, to keep things simple

We will be removing the default internet subscribed content library, which you can set back up so this is reversable, and manually download the right images we need
This has the draw back pf being managed by yourself for the latest releases, but declutters the template deployment menu

Click the three lines in the top left of vSphere and click Content Libraries

Click into the Kubernetes Service Content Library

Then click Delete from Library

No we can click Create for a new library, from the Content Libraries menu

Give it a name and click Next

Make sure Local Content Library is selected and click Next

Click Apply Security Policy and click Next

Select your datastore, if you have vSAN, this is what you should use, then click Next

And click Finish

Now we have our library, we need to download some templates for it

If we head to the URL the remote content library uses, we can see the images, the URL is
https://wp-content.vmware.com/v2/latest/
Its worth noting not all releases are supported, I downloaded the v1.32.3 and this didnt show up in the deployment, I suspect this is related to the supervisor version and that would need updating, as there is a new vCenter release

Here we can see all the templates and their links

I am going to click into the last one with VKR in the name, I do recommend Photon OS as they are significantly smaller VMs
And I will create a local folder with the same name to download the files to

Right click all the files, except the item.json, individually then click Save Link As

Once you have everything, it should look like this

In vSphere, head to the content library and click Actions/Import Item

Select Local File, and click Upload Files

Select all four of the files in a folder from our earlier downloads

Make sure the name matches exactly whats on the website repository for this, and click Import

Then repeat for any remaining downloaded images

Once they have all been uploaded, we need to set the TKG default repository back up on the supervisor, as that was using the remove content library we removed
Click the three lines in the top left of vSphere and click Workload Management

Click the Supervisors tab, then click your supervisor

Head to Configure/Supervisor/General then expand Tanzu Kubernetes Grid Service and click Edit

Select our custom TKG content library and click ok

Give it a couple of mins and you should see the error goes away and it recognises it

Now to test this works, I opened the test namespace
Head to Resources, then click Open on Tanzu Kubernetes Grid

Click Create

We we proceed with a custom configuration and click Next

We can see the VMI templates are showing

Now my templates are much less cluttered and I have my Kubernetes VM releases, as an example

These demos will only have the YAML files, if you need more info on using K8S look at the demos in section 8 as they are the same
There is also an edit in 8.2 for setting static load balancer IP addresses that isnt in this section

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      securityContext:
        runAsNonRoot: true
        seccompProfile:
          type: RuntimeDefault
      containers:
      - name: nginx
        image: nginxinc/nginx-unprivileged:latest
        ports:
        - containerPort: 8080
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            drop:
              - ALL
          runAsNonRoot: true
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-service
spec:
  type: LoadBalancer
  selector:
    app: nginx
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080

# ========================
# PersistentVolumeClaim for MySQL
# ========================
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: mysql-pvc
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: vsan-default-storage-policy
  resources:
    requests:
      storage: 10Gi
---
# ========================
# MySQL Deployment
# ========================
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mysql-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: mysql
  template:
    metadata:
      labels:
        app: mysql
    spec:
      securityContext:
        runAsNonRoot: true
        runAsUser: 999
        runAsGroup: 999
        fsGroup: 999
        seccompProfile:
          type: RuntimeDefault
      containers:
      - name: mysql
        image: mysql:8.0
        ports:
        - containerPort: 3306
        env:
        - name: MYSQL_DATABASE
          value: "wordpress"
        - name: MYSQL_USER
          value: "wpuser"
        - name: MYSQL_PASSWORD
          value: "wppassword"
        - name: MYSQL_ROOT_PASSWORD
          value: "notusedbutrequired"
        resources:
          requests:
            memory: "512Mi"
            cpu: "250m"
          limits:
            memory: "1Gi"
            cpu: "500m"
        securityContext:
          allowPrivilegeEscalation: false
          runAsNonRoot: true
          capabilities:
            drop:
              - ALL
        volumeMounts:
        - name: mysql-persistent-storage
          mountPath: /var/lib/mysql
      volumes:
      - name: mysql-persistent-storage
        persistentVolumeClaim:
          claimName: mysql-pvc
---
# ========================
# MySQL Service (internal only)
# ========================
apiVersion: v1
kind: Service
metadata:
  name: mysql-service
spec:
  type: ClusterIP
  selector:
    app: mysql
  ports:
    - protocol: TCP
      port: 3306
      targetPort: 3306
---
# ========================
# PersistentVolumeClaim for WordPress
# ========================
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: wordpress-pvc
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: vsan-default-storage-policy
  resources:
    requests:
      storage: 10Gi
---
# ========================
# ConfigMap to override Apache ports.conf
# ========================
apiVersion: v1
kind: ConfigMap
metadata:
  name: wordpress-apache-config
data:
  ports.conf: |
    Listen 8080
    <IfModule ssl_module>
      Listen 8443
    </IfModule>
    <IfModule mod_gnutls.c>
      Listen 8443
    </IfModule>
---
# ========================
# WordPress Deployment
# ========================
apiVersion: apps/v1
kind: Deployment
metadata:
  name: wordpress-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: wordpress
  template:
    metadata:
      labels:
        app: wordpress
    spec:
      securityContext:
        runAsNonRoot: true
        runAsUser: 1000
        runAsGroup: 1000
        fsGroup: 1000
        seccompProfile:
          type: RuntimeDefault
      containers:
      - name: wordpress
        image: wordpress:php8.2-apache
        ports:
        - containerPort: 8080
        env:
        - name: WORDPRESS_DB_HOST
          value: "mysql-service"
        - name: WORDPRESS_DB_USER
          value: "wpuser"
        - name: WORDPRESS_DB_PASSWORD
          value: "wppassword"
        - name: WORDPRESS_DB_NAME
          value: "wordpress"
        resources:
          requests:
            memory: "512Mi"
            cpu: "250m"
          limits:
            memory: "1Gi"
            cpu: "500m"
        securityContext:
          allowPrivilegeEscalation: false
          runAsNonRoot: true
          capabilities:
            drop:
              - ALL
        volumeMounts:
        - name: wordpress-persistent-storage
          mountPath: /var/www/html
        - name: apache-config
          mountPath: /etc/apache2/ports.conf
          subPath: ports.conf
      volumes:
      - name: wordpress-persistent-storage
        persistentVolumeClaim:
          claimName: wordpress-pvc
      - name: apache-config
        configMap:
          name: wordpress-apache-config
---
# ========================
# WordPress Service (external access)
# ========================
apiVersion: v1
kind: Service
metadata:
  name: wordpress-service
spec:
  type: LoadBalancer
  selector:
    app: wordpress
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080

kubectl delete deployment grafana influxdb2 telegraf

# ========================
# Grafana PersistentVolumeClaim
# ========================
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: grafana-pvc
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: vsan-default-storage-policy
  resources:
    requests:
      storage: 40Gi
---
# ========================
# InfluxDB2 PersistentVolumeClaims
# ========================
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: influxdb2-data-pvc
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: vsan-default-storage-policy
  resources:
    requests:
      storage: 50Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: influxdb2-config-pvc
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: vsan-default-storage-policy
  resources:
    requests:
      storage: 50Gi
---
# ========================
# Grafana Deployment
# ========================
apiVersion: apps/v1
kind: Deployment
metadata:
  name: grafana
spec:
  replicas: 1
  selector:
    matchLabels:
      app: grafana
  template:
    metadata:
      labels:
        app: grafana
    spec:
      securityContext:
        runAsNonRoot: true
        runAsUser: 472      # grafana user inside container
        runAsGroup: 472
        fsGroup: 472
        seccompProfile:
          type: RuntimeDefault
      containers:
      - name: grafana
        image: docker.io/grafana/grafana-oss:latest
        ports:
        - containerPort: 3000
        env:
        - name: GF_PLUGINS_ALLOW_LOADING_UNSIGNED_PLUGINS
          value: "vmware-ariaoperations-datasource"
        - name: GF_DEFAULT_APP_MODE
          value: "development"
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            drop:
              - ALL
        volumeMounts:
        - name: grafana-storage
          mountPath: /var/lib/grafana
      volumes:
      - name: grafana-storage
        persistentVolumeClaim:
          claimName: grafana-pvc
---
# ========================
# Grafana Service
# ========================
apiVersion: v1
kind: Service
metadata:
  name: grafana-service
spec:
  type: LoadBalancer
  selector:
    app: grafana
  ports:
    - name: web
      protocol: TCP
      port: 80
      targetPort: 3000
---
# ========================
# InfluxDB2 Deployment
# ========================
apiVersion: apps/v1
kind: Deployment
metadata:
  name: influxdb2
spec:
  replicas: 1
  selector:
    matchLabels:
      app: influxdb2
  template:
    metadata:
      labels:
        app: influxdb2
    spec:
      securityContext:
        runAsNonRoot: true
        runAsUser: 1000
        runAsGroup: 1000
        fsGroup: 1000
        seccompProfile:
          type: RuntimeDefault
      containers:
      - name: influxdb2
        image: influxdb:2.7
        ports:
        - containerPort: 8086
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            drop:
              - ALL
        resources:
          requests:
            memory: "512Mi"
            cpu: "250m"
          limits:
            memory: "1Gi"
            cpu: "1"
        volumeMounts:
        - name: influxdb2-data
          mountPath: /var/lib/influxdb2
        - name: influxdb2-config
          mountPath: /etc/influxdb2
      volumes:
      - name: influxdb2-data
        persistentVolumeClaim:
          claimName: influxdb2-data-pvc
      - name: influxdb2-config
        persistentVolumeClaim:
          claimName: influxdb2-config-pvc
---
# ========================
# InfluxDB2 Service
# ========================
apiVersion: v1
kind: Service
metadata:
  name: influxdb2-service
spec:
  type: LoadBalancer
  selector:
    app: influxdb2
  ports:
    - name: http
      protocol: TCP
      port: 8086
      targetPort: 8086
---
# ========================
# Telegraf ConfigMap
# ========================
apiVersion: v1
kind: ConfigMap
metadata:
  name: telegraf-config
data:
  telegraf.conf: |
    # paste your telegraf.conf contents here
---
# ========================
# Telegraf Deployment
# ========================
apiVersion: apps/v1
kind: Deployment
metadata:
  name: telegraf
spec:
  replicas: 1
  selector:
    matchLabels:
      app: telegraf
  template:
    metadata:
      labels:
        app: telegraf
    spec:
      securityContext:
        runAsNonRoot: true
        runAsUser: 1000
        runAsGroup: 1000
        fsGroup: 1000
        seccompProfile:
          type: RuntimeDefault
      containers:
      - name: telegraf
        image: telegraf:latest
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            drop:
              - ALL
        volumeMounts:
        - name: telegraf-config
          mountPath: /etc/telegraf/telegraf.conf
          subPath: telegraf.conf
      volumes:
      - name: telegraf-config
        configMap:
          name: telegraf-config
